Chain Drive 20 Roller Stations Z Purlin Roll Forming Machine

Chain Drive 20 Roller Stations Z Purlin Roll Forming Machine
Chain Drive 20 Roller Stations Z Purlin Roll Forming Machine Chain Drive 20 Roller Stations Z Purlin Roll Forming Machine

Large Image :  Chain Drive 20 Roller Stations Z Purlin Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD35000---40000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Chain Drive 20 Roller Stations Z Purlin Roll Forming Machine

Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: According To The Model Type: Steel Frame & Purlin Machine
Warranty: 2 Years Production Capacity: 10-15m/min
High Light:

purlin making machine

,

purlin forming machine

Chain Drive Z Purlin Making Machine , Purlin Rolling Machine With 20 Roller Stations



Technical Parameter

  • Material: aluzinc/galvanized steel/colored steel coil
  • Material thickness: 1.0-3.0mm
  • Main motor power: 15kw
  • Pump power: 7.5kw
  • Shaft diameter: 80mm
  • Forming steps: 5+14steps
  • Roller material: bearing steel
  • Main frame: 400H steel
  • Medium plate thickness: 20mm
  • Control systerm: PLC computer control with inverter
  • Power supply: 460V, 3 Phase,60Hz or as requirement
  • 0veral size: 9600mm*1500mm*1500mm



Working Flow

Decoiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table

Chain Drive Z Purlin Making Machine , Purlin Rolling Machine With 20 Roller Stations

Machine List



S.N Equipment name Quantity
1 3T manual uncoiler 1 set
2 Levelling device 1 unit
3 Punching station (including punching mould) 1 unit
4 Main roll forming machine 1 set
5 Main drive 1 unit
6 Cutting unit 1 set
7 Hydraulic station 1 set
8

Control system

( including control cabinet)

1 set
9 Out put rack 1 set
10 Cutting mould 3 sets

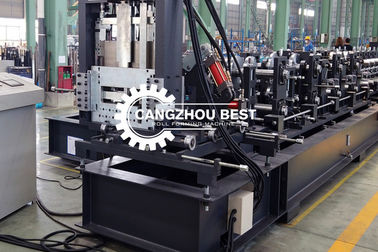

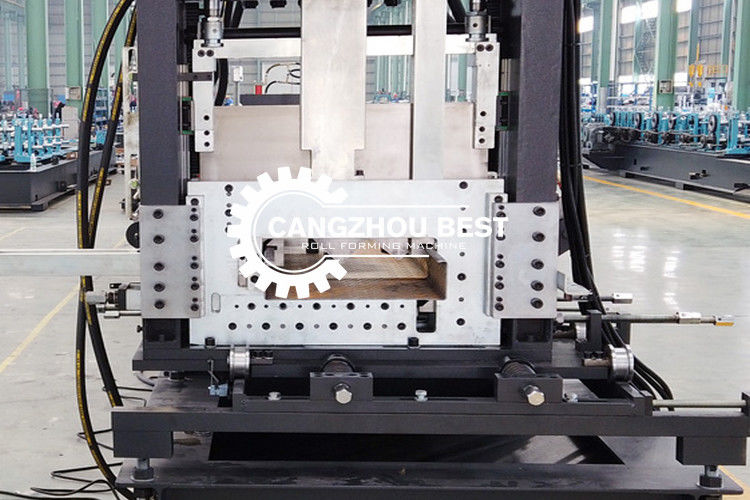

Pictures of the product

Chain Drive Z Purlin Making Machine , Purlin Rolling Machine With 20 Roller StationsChain Drive Z Purlin Making Machine , Purlin Rolling Machine With 20 Roller StationsChain Drive Z Purlin Making Machine , Purlin Rolling Machine With 20 Roller Stations
