Product Details:
|
| Name: | Truecoue Sheet Metal Africa Brand Roof Tile Sheets Making Machinery Roll Forming Machine | Color: | As Yourrequire |
|---|---|---|---|
| Speed: | 8-12m/min | Control System: | PLC |
| Shaft Material: | 45# Steel | Warranty: | 2 Year |
| High Light: | plc Roof Tile Roll Forming Machine,1250mm Roof Tile Roll Forming Machine,Φ450 Roof Tile Roll Forming Machine |
||

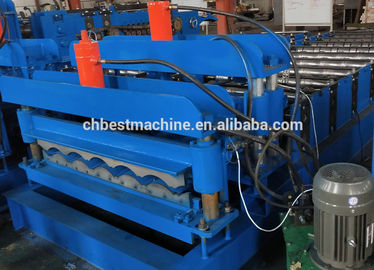

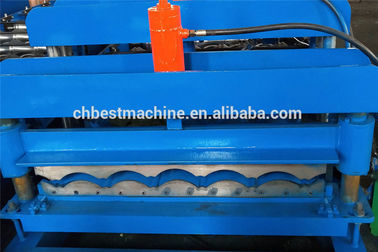

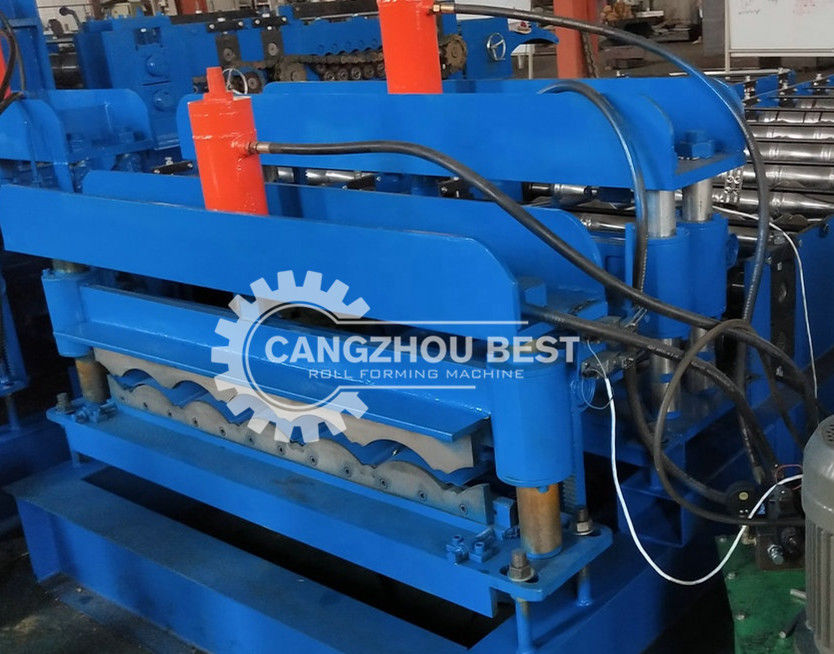

Truecoue Sheet Metal Africa Brand Roof Tile Sheets Making Machinery Roll Forming Machine
Decoiler
Max. Width: 1250mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Manual Or Hydraulic (Optional)
Roll Forming Machine
| tem | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 13-22 stations(according to the profiles) | ||||||||

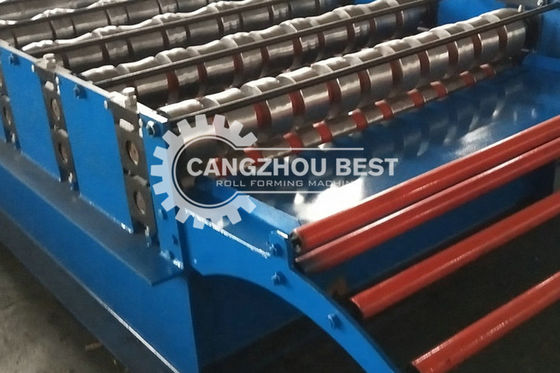

| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
||||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 3kw-11kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Cutter device
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Working Flow
Decoiler------feeding -------roll forming------cut to length-----output table
Packing Detall
| (1) |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) |
All Components Fixed by steel wire with Container. |
| (3) |
electrics devices be packed with wooden box.for Standard export packing |
| (4) |
rollers were painted with oil and packed with plastic film. |
| Working conditions | |
| 1.working size | 25m x 2m x 4m |
| 2.Power supply | 8.5kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
| Forming stations | 13-22 stations(according to the profiles) |
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing(option) |
| Driving system | 1 inch chain or gear box(option) |
| Machine power | 3kw-11kw(according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min(option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
1. Usage Of Roof Panel :
The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.
2. Feature Of Our Machines:
1) Our machines can uses galvanized steel sheet, colored armor plate or
aluminum plate as the material plate.
2) Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,
maintenance-free
3) We can make and design will kinds of roll forming machine according to customer's request.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
