Product Details:
|
| Name: | Hydraulic Decolier 5 Kw Glazed Roof Tiles Cladding Double Layer Roll Forming Machine | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | glazed tile roll forming machine,PPGI metal roll forming machine |
||

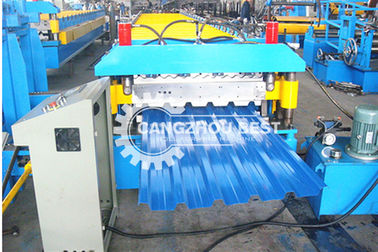

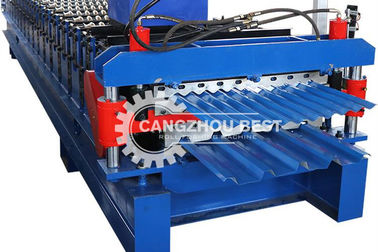

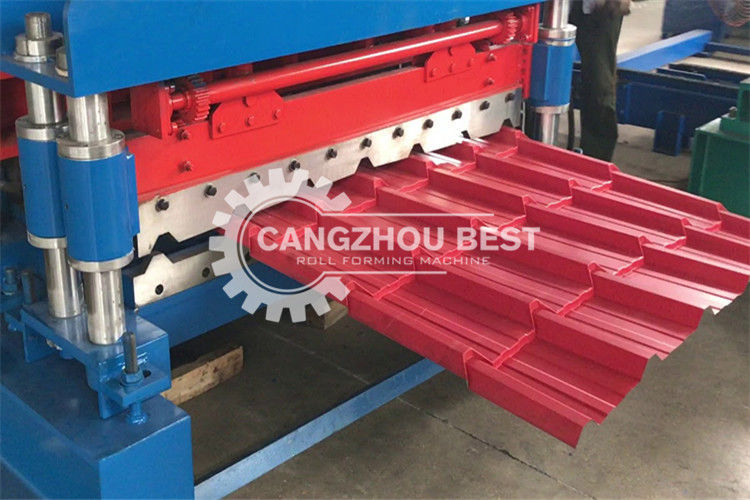

Hydraulic Decolier 5 kw Glazed Roof Tiles Cladding Double Layer Roll Forming Machine
Manual Decoiler
(1) Max Width: 1250mm
(2) Inner Diameter: 500mm
(3) Outer Diameter: 1200mm
(4) Max Weight Capacity: 5T
Roll Forming Machine
| Forming stations | 13-22 stations(according to the profiles) |
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing(option) |
| Driving system | 1 inch chain or gear box(option) |
| Machine power | 3kw-11kw(according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min(option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |

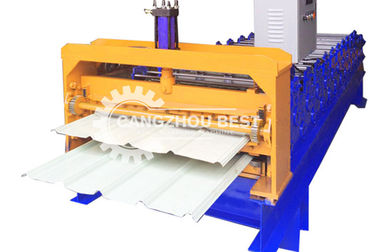

Cutter Device:
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Power:3lw
Hydraulic System:
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
Output Table
No power type
Length: 2m
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Our Service
Pre-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales-Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Other Product
Roof sheet machine, roof tile machine, ridge cap machine, double layer machine, c z purlin machine, highway guardrail machine, cable tray machine, water tube machine,decking sheet machine, roller shutter door machine, door frame machine, ceiling drywll machine and so on.
Our advantage:
- Metal Steel sheet Shutter Door Gate Frame Roll Shaping Machine consist of one set decoiler, one sets of feeding platforms and one roll forming core,and one cutting dies.
- Metal Steel sheet Shutter Door Gate Frame Roll Shaping Machine size we can design the machine all as customize,customer just show us the profile drawing material thickness width, we can design the machine according as the request
- When we finish Metal Steel sheet Shutter Door Gate Frame Roll Shaping Machine, we will test the machine and adjust the machine many times to be sure the machine have a perfect status and when customer receive the machine, the machine can be used very easy
Why choose us:
We have sold more than 3000 sets roll forming machines to many countries around the world.We have hundreds of models about all kinds of roll forming machine for your reference, you could't worry if you don't have a profile drawing.We can recommond you some classical models that is common in your country.When designing the machine, our considerate service will estimate and avoid the problem that may happen.One set machine can provide many solutions with different price level.But they are all the cost-effective.We attach importance to many details. Every machine part quality is higher than our competitors in same price level.
