Product Details:
|

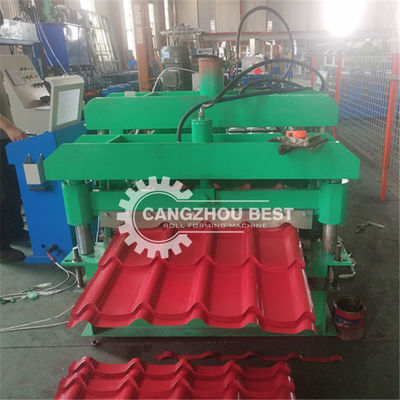

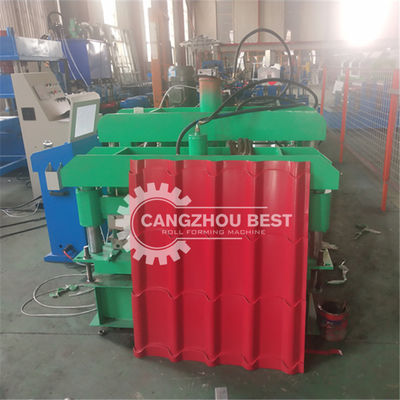

| Product Name: | Corrugated Metal Glazed Colored Steel Roofing Tile 740mm Roll Forming Machine PPGI Material | Color: | Blue Or As Your Requirement |
|---|---|---|---|
| Machine Dimention: | 6.5mx1.4mx1.4m | Machine Power: | 3kw+4kw |
| Warranty: | 2 Years | Control System: | PLC |
| High Light: | 740mm glazed tile roll forming machine,ppgi glazed tile roll forming machine,7kw glazed tile roll forming machine |
||
Stacker
| Type | Manual | Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs

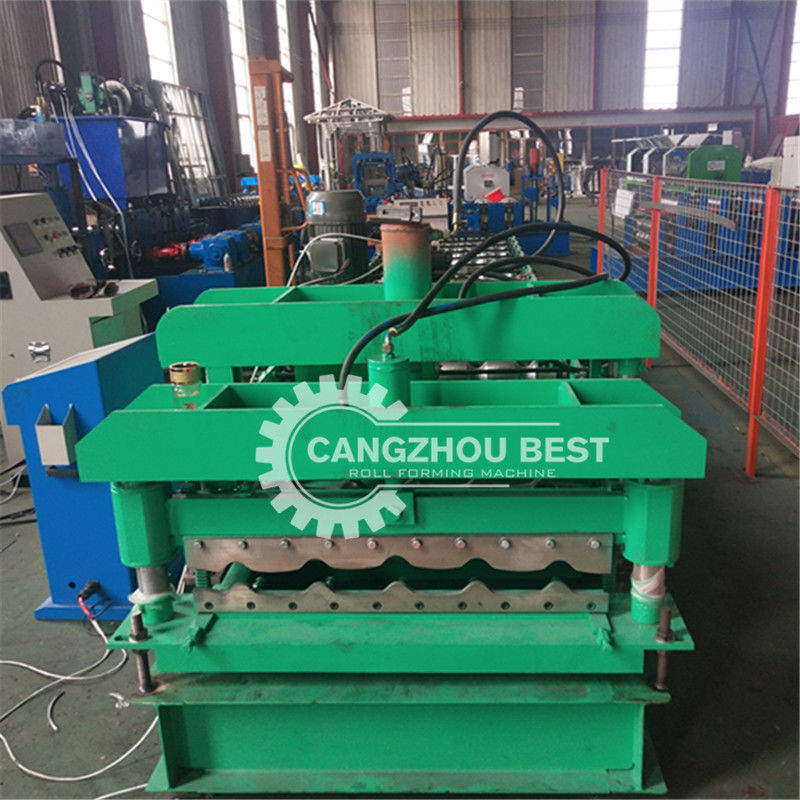

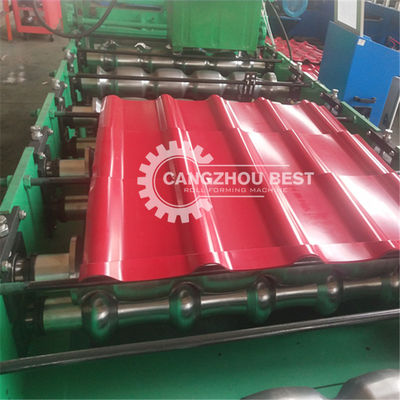

2.ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm
(2) Rollers:13groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
8) Motor Power: 7.5kw
(9) Driven type: 2.0＂Chain
3. PRESSING AND CUT-OFF DEVICE
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Power:4kw
Pressing die material: Cr12 steel
4.ELECTRONIC CONTROL SYSTEM
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Length Error: ±2mm
(4) Language: English and Chinese
(5) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Control box Oil pump
5. PRODUCTION SUPPORT TABLE
(1) No power type
(2) Length: 2m
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications,using top brand components.
What will you do if the machine is broken?
A4: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
Can you be responsible for transport?
A5: Yes,please tell me the destination port or address.we have rich experience in transporting.
How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 h), then we can pick up you.
Our Advantage
| 1. We are a factory with nearly 20 years experiences on Roll Forming Machines; |
| 2. We have our own research and development team with strong ability to solve all kinds of problems; | ||||||
| 3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost; | ||||||
| 4. We have more than 20 technicians that can go abroad for the after-sale service; | ||||||
|
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us; |
||||||
|
6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines; |
||||||
| 7. Our machines have reached the International Inspection Standards; | ||||||
| 8. We have got the ISO9001:2008 Certificate and CE Certificate; | ||||||
| 9. We are always waiting to serve you 7 days a week and 24 hours a day. | ||||||
