20m/Min 11kw Door Window Frame Steel Roll Forming Machine

20m/Min 11kw Door Window Frame Steel Roll Forming Machine
20m/Min 11kw Door Window Frame Steel Roll Forming Machine 20m/Min 11kw Door Window Frame Steel Roll Forming Machine 20m/Min 11kw Door Window Frame Steel Roll Forming Machine 20m/Min 11kw Door Window Frame Steel Roll Forming Machine

Large Image :  20m/Min 11kw Door Window Frame Steel Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY 125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month

20m/Min 11kw Door Window Frame Steel Roll Forming Machine

Description

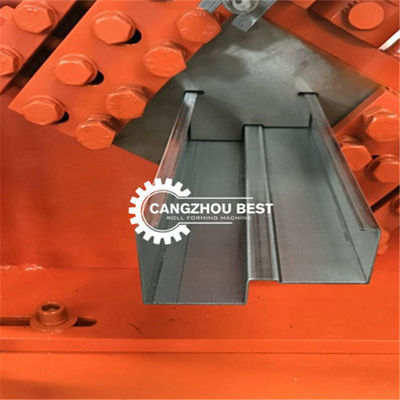

Product Name: 20m/min Metal Steel 11kw Power Door Window Frame Roll Forming Machine Color: Blue Or According To Your Request
Warranty: 2years Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

gearbox steel roll forming machine

,

20m/Min Steel Roll Forming Machine

,

11KW Steel Roll Forming Machine



20m/min Metal Steel 11kw Power Door Window Frame Roll Forming Machine

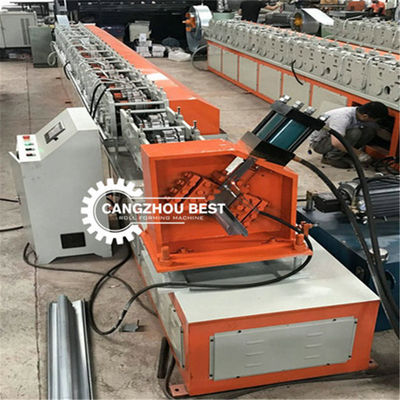

No. Name Qty.
1 Decoiler  1set
2 Feeding and guiding device 1set
3 Roll forming machine  1set
4 Punching machine with servo feeding  1set
5 Hydraulic cutting device  1set
6 PLC control box  1set
7 output table 1set



Parmater



A.Manual decoiler

1 Capacity 5tons
2 Loading width MAX 1500mm
3 Coil inner diameter 450-600mm



B. Main roll forming

1 Main motor power 5kw
2 Drive 1''Chain
3 Main shaft diameter ¢80mm
4 Shaft material 45#forge steel after treatment
5 Roller material 45# steel polished and coated with chrome HRC55-60° chrome coated 0.05mm
6 Roll station 16groups
7 Raw material 0.3-1.0mm
8 Working speed 10m--15m/min
9 Voltage 380v,380v,50hz

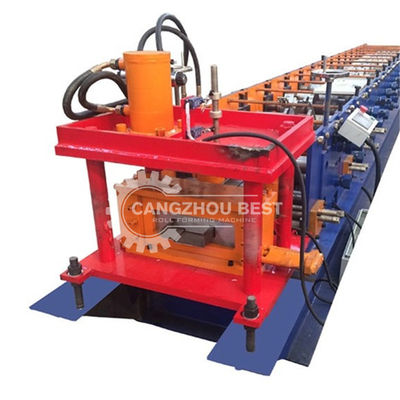

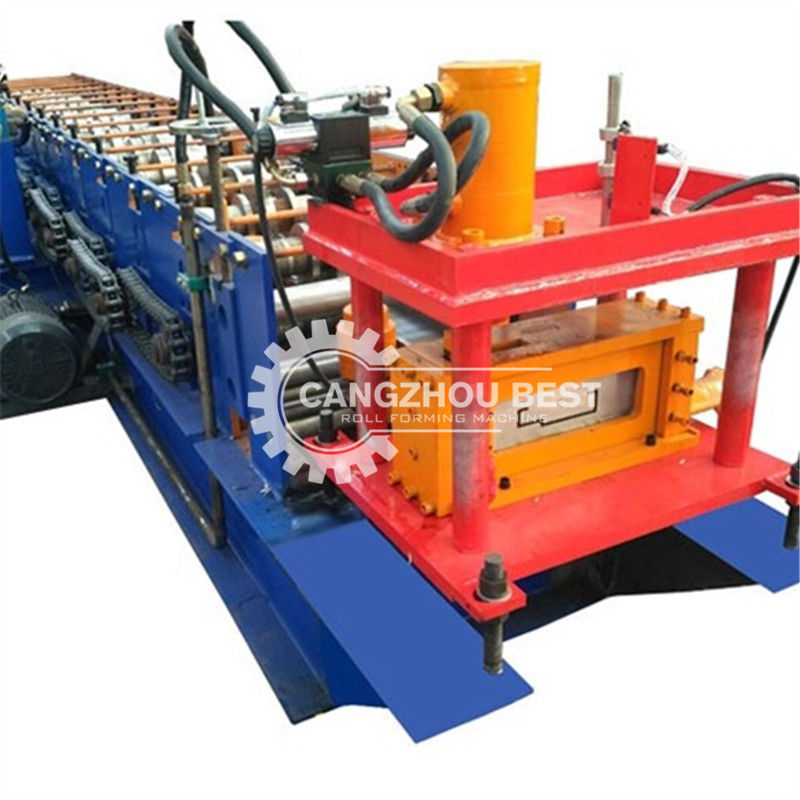

C Cutting device

1 Cutting Hydraulic cutting
2 Hydraulic power 7.5KW
3 Blade material Cr12,quenched 55°-60°C
4 Working pressure 16mpa
5 Cutting tolerance +/- 2mm



D Punching

1 Hydraulic punching AFTER roll forming
2 Power 7.5kw



E Control system

1 Type PLC Frequency Control System with touch screen
2 PLC Brand Japan Panasonic
3 Encoder Brand Omron
4 Length Error ±2mm



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.



1.Term of payment: TT, 30%TT should be paid as advanced deposit ,70%TT before shipment .
2.Delivery time: Within 35 working days after received of the deposit
3.After-service:Engineer available to service machinery onerseas



RFQ



1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2)Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit.  ALIBAB’s Gold supplier with BV assessment and CE certificate.



4)Q:What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
