Product Details:
|
| Name: | New Corrugated Roof Panel Sheeting Roll Forming Machine 2 Years Warranty Description | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | PPGI Roofing Sheet Roll Forming Machine,0.8mm Roofing Sheet Roll Forming Machine,GI Roofing Sheet Roll Former |
||

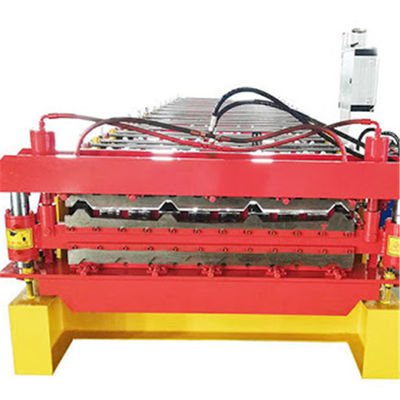

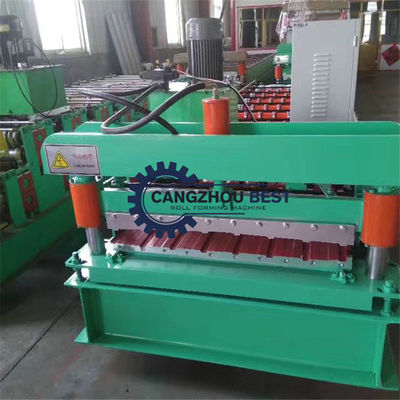

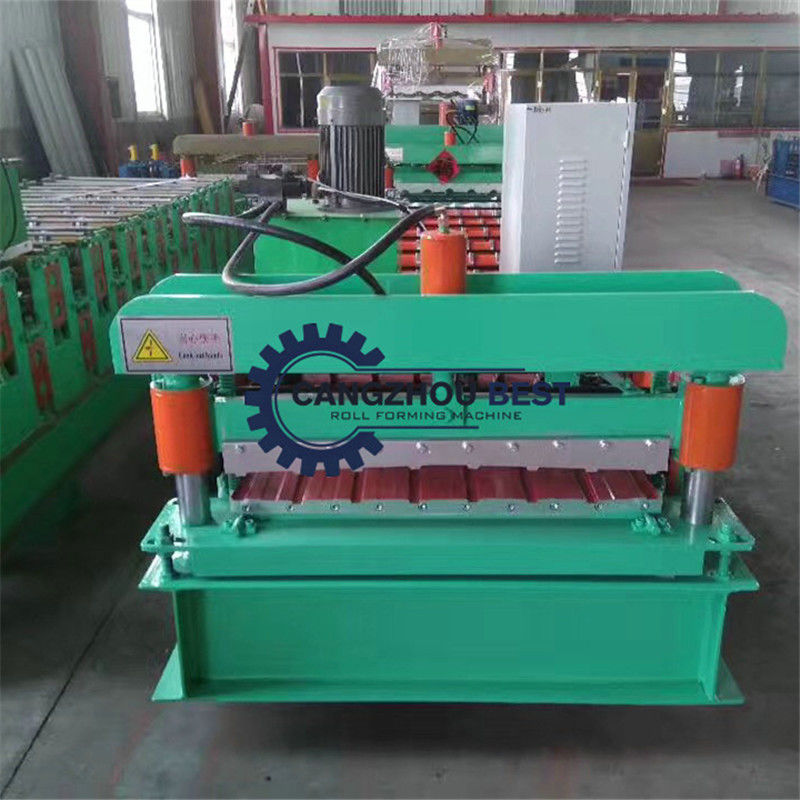

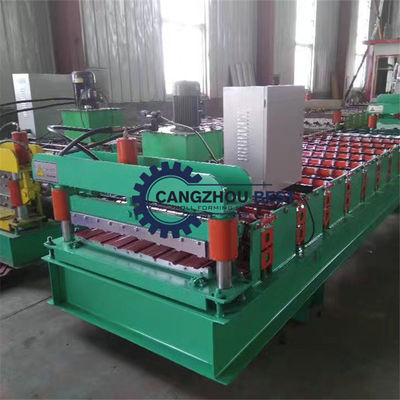

New Corrugated Roof Panel Sheeting Roll Forming Machine 2 Years Warranty Description
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Control System | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
1.Main Parameters:
| NO. | Type | Specification | Remarks | |
|
1. |
Raw material |
Type | GI | |
| Thickness | 0.3-0.8 | |||
| Yield strength | 235Mpa TO 350Mpa | |||
|
2. |
Decoiler |
Operation | Manual | |
| Weight apacity | 5tons | |||
|
3. |
Main body |
Roller station | 19 stations | |
| Diameter of shaft | 70mm | |||
| Material of rollers | 45# steel with chrome 0.05mm | |||
| Material of shaft | 45# steel with chrome 0.05mm | |||
| Frame | 350mm H-Beam | |||
| Chain | 0.6 inch | |||
|
4. |
Cutter |
Operate | Automatic hydraulic type | |
| Blade Material | CG12 | |||
| Number | One hydraulic cutter | |||
|
5. |
Power |
Pump motor for cutter | 5.5kw | |
| Main motor | 3kw | |||
| Voltage | 380V 50HZ | |||
|
6. |
Control system |
Electric Box |
PLC control system, Inverter, encoder |
|
| Language | English | |||
| 7 | Speed | 8-12m/min | ||
Main Parameter
| Name | Model/Name | Quantity | Technical Description |
| 1. Decoiler system | Arm type automatic decoiler (With ultrasonice control) | 1set | Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm. |
| 2. Main forming system | Pre-shearing device | 1set |
1.Roller material:No.45 steel with surface hard chrome painted. 2. Roller shaft material: No.45 3. Roller inner supporting structure type: guide column 4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear 5.Cutting blade material Cr12 quenched treatment 6.Punching die material adopts No.45 steel with nitride treatment. |
| Feeding guide device | 1set | ||
| Film covering device | 1set | ||
| Roll forming system | 1set | ||
| Pressing system | 2set | ||
| Post-cutting device | 1set | ||
| Complete safety cover | 1set | ||
| 3. Output system | Support table | 2set | For supporting the finished plate |
| 4. Hydraulic system | 1set | Separated hydraulic station for the main machine and decoiler. | |
| 5. Electric control system | 1set |
1. PLC Control, encoder automatic cutting in length 2. Operation stage: Touch screen+ button 3. AC frequency for adjusting the speed |
|
3.Advantage:
1)Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;
2)Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;
3)The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;
4)Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);
5)Forming machine all parts baking finishing and then assembly
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. |
| After-Sales-Service |
Training how to instal the machine, training how to use the machine. Engineers available to service machinery overseas. If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.
3. electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
