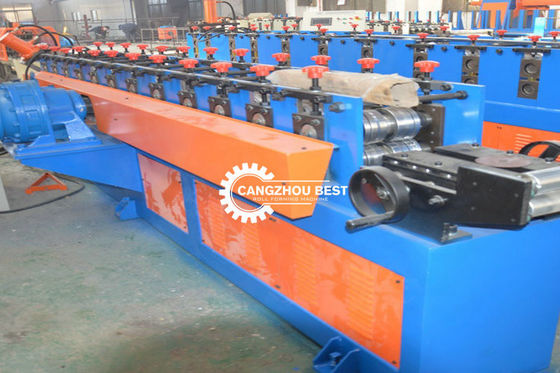

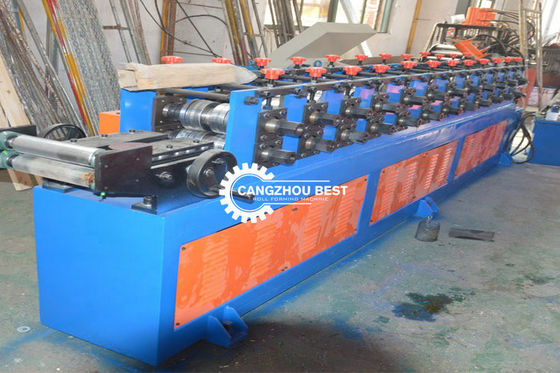

Chain Or Gear Box Driven System 1.2mm Door Frame Machine

Chain Or Gear Box Driven System 1.2mm Door Frame Machine
Chain Or Gear Box Driven System 1.2mm Door Frame Machine
Chain Or Gear Box Driven System 1.2mm Door Frame Machine Chain Or Gear Box Driven System 1.2mm Door Frame Machine Chain Or Gear Box Driven System 1.2mm Door Frame Machine Chain Or Gear Box Driven System 1.2mm Door Frame Machine Chain Or Gear Box Driven System 1.2mm Door Frame Machine

Large Image :  Chain Or Gear Box Driven System 1.2mm Door Frame Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000---15000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Chain Or Gear Box Driven System 1.2mm Door Frame Machine

Description
Condition: New Working Material: Galvanized Sheet(Gi),Cold Roll Steel(CRC),Hot Roll
Thickness: 0.7-1.2mm Decoiler: Manual/Hydraulic For Options
Forming Station: 16 Cutter Material: Cr12 Tool Steel
High Light:

1.2mm Door Frame Machine

,

15 meters/min door frame machine

High Efficiency Steel Door Frame Machinery With Chain Or Gear Box Driven System
1. Suitable Plate Material: thickness 1.5-6.0mm, Galvanized steel or mild steel
2. Working Speed: 8-15 meters / min

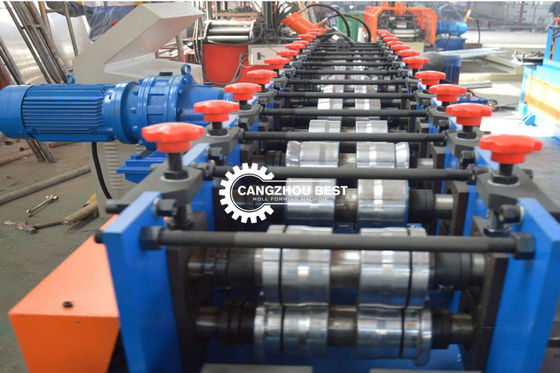

3. Forming Steps: 19 stations, drive by gear boxes
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts
7. Main Power with reducer: 22KW

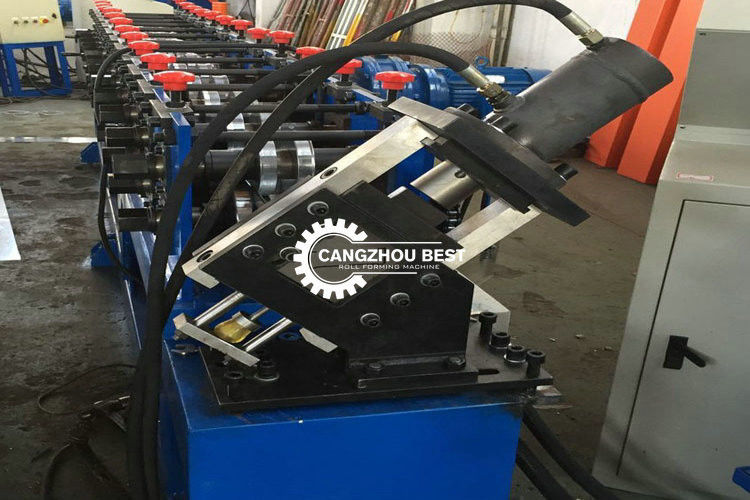

8. Cutting: Hydraulic Cutting
9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
10. Hydraulic Station Power: 4KW
11. The whole machine is controlled by industry computer-PLC.
12 PLC--Panasonic, Japan English and Chinese Language
13 Touch Screen--Panasonic Japan
14 Encoder--Omron, Japan
Price Range: 5 - 15 Lakh/Unit

Technical specification:

Door Frame roll forming machine
No. Item Specification Optional
1 Suitable material Type:Galvanized Coil, PPGI, Carbon steel Coil
Thickness(mm):1.0-2.0
Yield strength: 250 – 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2 Nominal forming speed(m/min) 10-20 Or according to your requirement
3 Forming station 17 According to your profile
4 Decoiler Manual decoiler Hydraulic decoiler or double head decoiler
5 Main machine motor Sino-German Brand Siemens
6 PLC brand Panasonic Siemens
7 Inverter brand Yaskawa
8 Driving system Chain drive Gearbox drive
9 Rollers’ materail Steel #45 GCr15
10 Station structure Wall panel station Forged Iron stationOr torri stand structure
11 Punching system No Hydraulic punching station or Punching press
12 Cutting system Post-cutting Pre-cutting
13 Power supply requirement 380V 60Hz Or according to your requirement
14 Machine color Industrial blue Or according to your requirement
