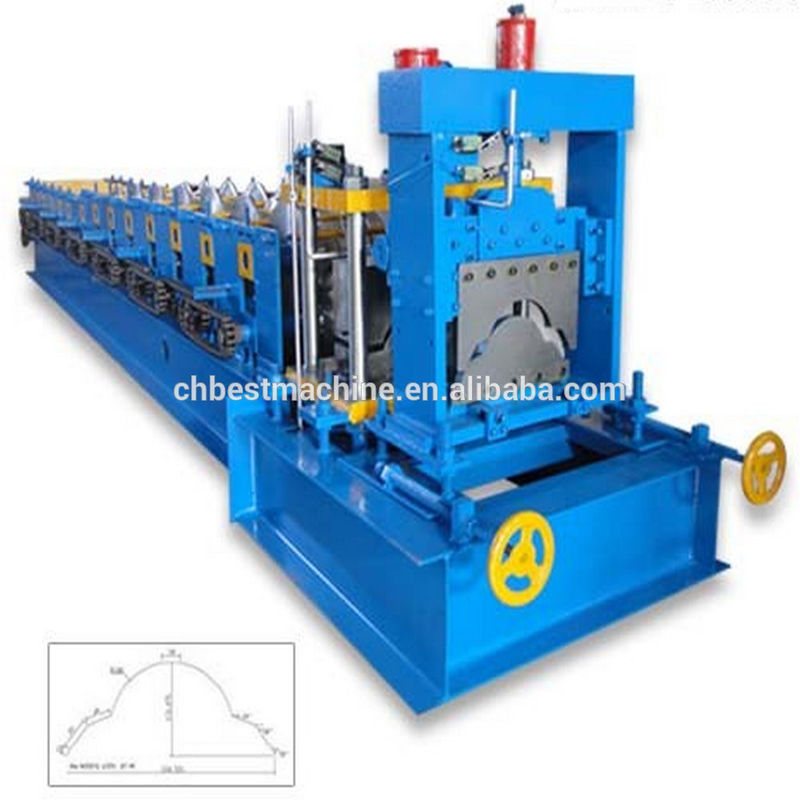

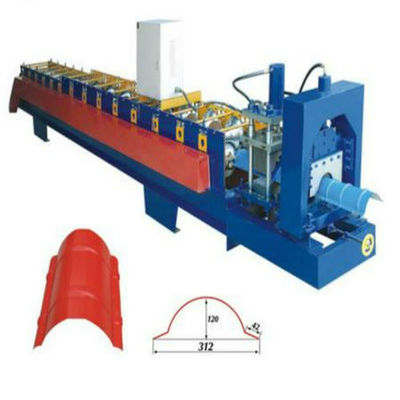

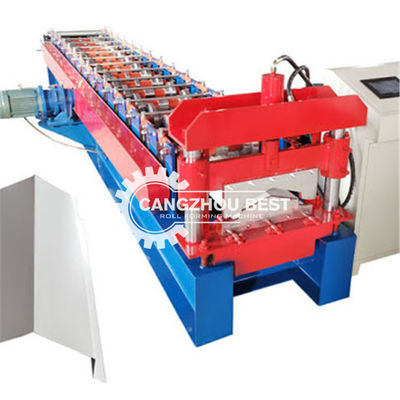

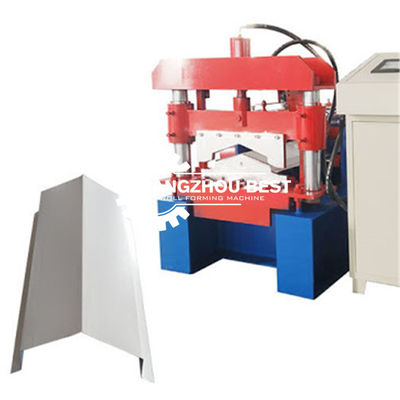

3kw Glazed Roof Building House Ibr Roll Forming Machine

3kw Glazed Roof Building House Ibr Roll Forming Machine
3kw Glazed Roof Building House Ibr Roll Forming Machine
3kw Glazed Roof Building House Ibr Roll Forming Machine 3kw Glazed Roof Building House Ibr Roll Forming Machine 3kw Glazed Roof Building House Ibr Roll Forming Machine 3kw Glazed Roof Building House Ibr Roll Forming Machine 3kw Glazed Roof Building House Ibr Roll Forming Machine

Large Image :  3kw Glazed Roof Building House Ibr Roll Forming Machine

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: FOB
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15sets/month

3kw Glazed Roof Building House Ibr Roll Forming Machine

Description
Name: 3kw Glazed Roof Building House Ridge Cap Forming Machine For IBR Roof Color: As Your Require
Material: PPGI/GI Warranty: 2 Year
Cutting Type: Hydraulic Shaft Material: 45# Steel
High Light:

ibr roof roll forming machine

,

building ibr roll forming machine

,

3kw ibr roll forming machine



3kw Glazed Roof Building House Ridge Cap Forming Machine For IBR Roof



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Hydraulic Pump 1set
PLC Control System 1set
Output Table 1set



Decoiler



Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm



Roll Forming Machine



Motor Power 3Kw+3Kw Operating Voltage 380V
Production speed 8 - 10 m / min
transfer method Chain drive
Machine forming shaft

A total of 10 rows of large shaft:

250H steel, vertical plate 12mm

Adjust the set Using 45 # steel seamless steel pipe finishing
Wheel material 45 # steel hard chrome plated
Shaft material 45 # steel shaft diameter: 65mm solid shaft
Forming part Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast.
Numerical control system

PLC panel,

KEL-320 displa

counter The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP
Cut 3Kw pumping station, shear pressure type equipment
Pressure plate thickness 0.3—0.8mm
Random attachments

The use of a manual,

a gift rack

warranty period 12 months



Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Deta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand



Output Table

No power type
Length: 2m



Packing Detall

1

1*40 GP container ; main machine naked and fastened with iron wire in the container.

2 Rollers were painted with oil and packed with plastic film.
3

Electrics devices be packed with wooden box.for Standard export packing.

4

All Components Fixed by steel wire with Container.





Our Service



Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.



Terms

Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.
