Metal Cold Plc Highway Guardrail Roll Forming Machine

Metal Cold Plc Highway Guardrail Roll Forming Machine
Metal Cold Plc Highway Guardrail Roll Forming Machine Metal Cold Plc Highway Guardrail Roll Forming Machine

Large Image :  Metal Cold Plc Highway Guardrail Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80000---100000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Metal Cold Plc Highway Guardrail Roll Forming Machine

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 2 Years
Weight: 15 T Voltage: 380V.50HZ.3Phase
Condition: New Color: As Your Request
High Light:

Cold Highway Guardrail Roll Forming Machine

,

metal Highway Guardrail Roll Forming Machine

,

plc Highway Guardrail Roll Forming Machine

Parameters of highway guardrail roll forming machine :

Technology Parameters:

Hydraulic de-coiler with 2 heads

Coil ID: φ 550 ~ 780mm;

Width of the coil: 150 mm - 580mm;

Hydraulic station power: 7.5KW;

Max Load: 5 T;

Qty: 1PC;

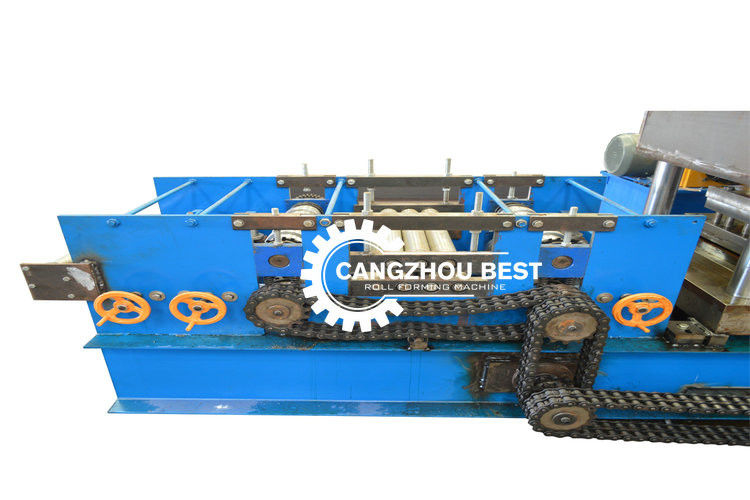

Feeding - Leveling and counting

It used for making the material flat before feeding into the roll forming machine.

Entrance and guide roller: 7 rollers ( Up 3, down 4);

Material GCr15, heat treatment;

Frame: 400 H steel;

Pre punching device

100T hydraulic punching device;

Piston hydraulic pump;

Hydraulic station power: 11KW;

9 holes punching.

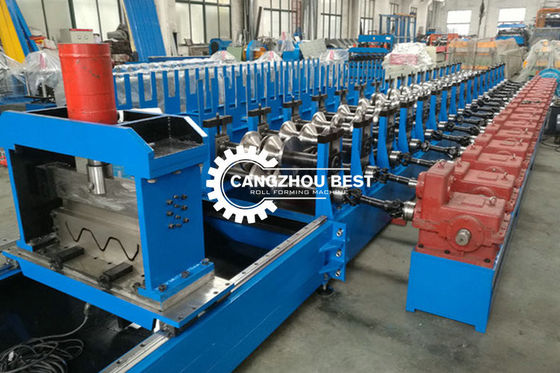

Main roll forming machine

Frame: 400 H steel with welded feeding platform;

Roller stations: 15 stations;

Roller material: Cr12;

Diameter of main shaft: ø116mm;

Material of main shaft: #45 steel, quenching and tempering treatment;

230 type gear box driving;

Main machine power: 2*22KW;

Frequency changer power: 50KW;

Speed: 8m/min (including punching and cutting);

"W" shape forming;

Post cutting device

Cutter material: Cr12;

Power supply: hydraulic station shared with punching device;

Frame: welding steel frame;

Cutting pressure: 50T.



PLC Control System

Control the quantity & punching length & cutting length automatically;

The Machine will be stopped while it is punching and cutting;

Automatic Length measurement and quantity counting (precision 3m+/- 2mm);

Voltage: 380V, 3 Phase 50Hz (or as per buyer`s request);

PLC brand: DELTA from Taiwan;

Frequency converter brand: DELTA from Taiwan;

Touch Screen brand: DELTA from Taiwan;

Encoder : REP from China.

Product support frame

Function: Support and output the product;

Structure: stand and supporting roll;

Size: L 3m x W 0.5m;

Qty: 2PCS.

Components of highway guardrail roll forming machine :

1) 5T hydraulic de-coiler with 2 heads ----------------------------------------------------- 1 set

2) Feeding and leveling system -------------------------------------------------------------- 1 set

3) Pre-punching system--------------------------------------------------------------------------1 set

4) Roll Forming system-------------------------------------------------------------------------- 1 set

5) Post cutting system----------------------------------------------------------------------------1 set

6) Auto stacker-------------------------------------------------------------------------------------1 set

7) PLC Control System---------------------------------------------------------------------------1 set

8) Hydraulic Station--------------------------------------------------------------------------------1 set

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas

and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)
