PPGI Interlock Roof 6m/Min Panel Roll Forming Machine

PPGI Interlock Roof 6m/Min Panel Roll Forming Machine
PPGI Interlock Roof 6m/Min Panel Roll Forming Machine PPGI Interlock Roof 6m/Min Panel Roll Forming Machine

Large Image :  PPGI Interlock Roof 6m/Min Panel Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY28-207-935
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

PPGI Interlock Roof 6m/Min Panel Roll Forming Machine

Description
Product Name: Durable Interlock Roofing Panel Light Weight Roof Sheet Forming Machine Material: PPGI
Machine Speed: 4-6m/min Machine Dimention: 6.5mx1.4mx1.4m
Machine Power: 3kw+4kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

6m/min panel roll forming machine

,

PPGI Panel Roll Forming Machine

,

interlock panel roll forming machine

Durable Interlock Roofing Panel light weight roof sheet forming machine



Tile effect roofing sheets are manufactured, cut to customers exact sizes and length requirements, providing 1m cover when fitted. ie. 10 sheets will cover 10m when fitted. Two types of durable cosmetic finish our tile effect roofing sheets are available in either a Polyester coated smooth finish or a plastisol coated leather grained finish.

The profile of the tile effect roofing sheet has a depth of 32mm providing 5 tiles across the width of each sheet. Each individual tile is 200mm wide and 300mm long. For example a 3 metre long sheet will consist of 50 tiles on a sheet, why fit 50 tiles when you can fit one sheet.



PPGI Interlock Roof 6m/Min Panel Roll Forming Machine 0



Working flow
PPGI Interlock Roof 6m/Min Panel Roll Forming Machine 1


Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Pressing Device 1 Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Hydraulic Pump 1 Set
7. Stacker 1 Set


Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm



roll forming



(1) Material Thickness: 0.4-0.8mm
(2) Rollers: 22steps

(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60℃
(4) Material for shaft: high grade No.45 steel after treatment

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kw

(9) Driven type: 1.0"Chain



Pressing and cutting device


Type

bearing sliding type

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type



Stacker


Type

Manual



Auto(option)




Length 1.5m-2m 6m or 12m



PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request

Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase



Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

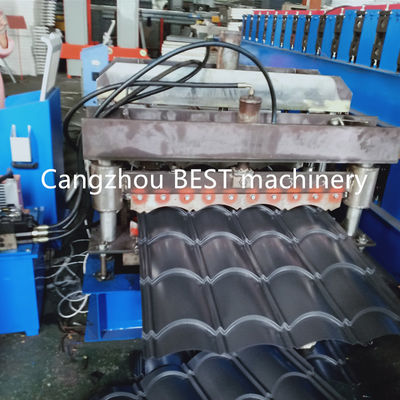

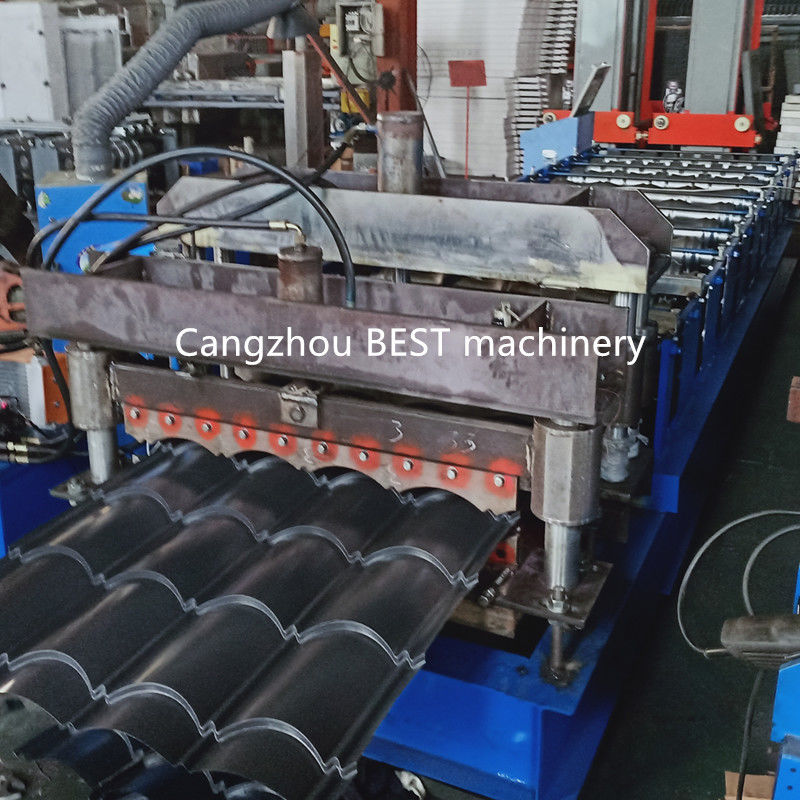

Photos



PPGI Interlock Roof 6m/Min Panel Roll Forming Machine 2



PPGI Interlock Roof 6m/Min Panel Roll Forming Machine 3



Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 45 days after receiving down payment
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
