0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine

0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine
0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine
0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine 0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine 0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine 0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine 0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine

Large Image :  0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY 125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD+8000+SET
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month

0.8-1.2mm Galvanized Steel Door Frame Roll Forming Machine

Description
Product Name: 0.8-1.2mm Thickness Galvanizned Steel Automatic Door Frame Rolling Forming Machine Color: Blue Or According To Your Request
Warranty: 2years Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

galvanized steel door frame roll forming machine

,

0.8mm steel door frame roll forming machine

,

1.2mm door frame rolling machine



0.8-1.2mm Thickness Galvanizned Steel Automatic Door Frame Rolling Forming Machine​





Working flow


Decoiler---------leveling--------punching---------roll forming--------cut to length----------output table



Machine components:



No. Name Qty.
1 Decoiler  1set
2 Feeding and guiding device 1set
3 Roll forming machine  1set
4 Punching machine with servo feeding  1set
5 Hydraulic cutting device  1set
6 PLC control box  1set
7 output table 1set



A. Manual Decoiler
(1) Max Width: 1250mm
(2) Inner Diameter: 500mm
(3) Outer Diameter: 1200mm
(4) Max Weight Capacity: 5T

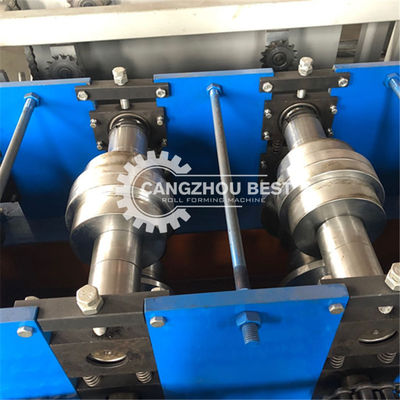

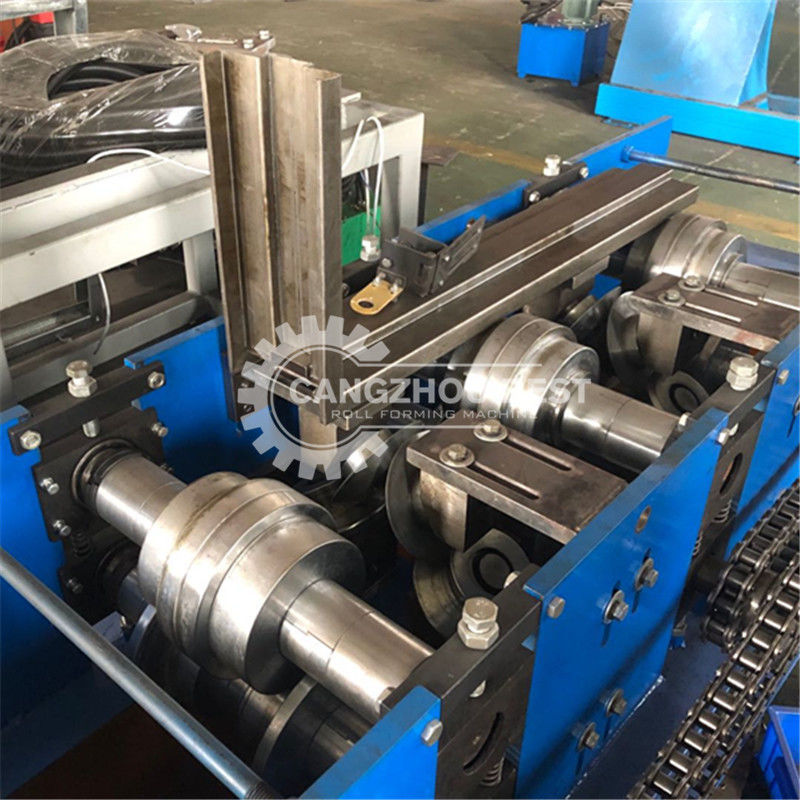

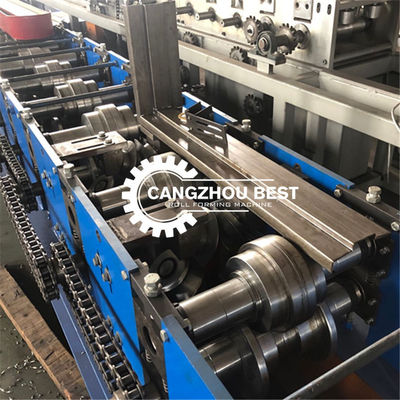

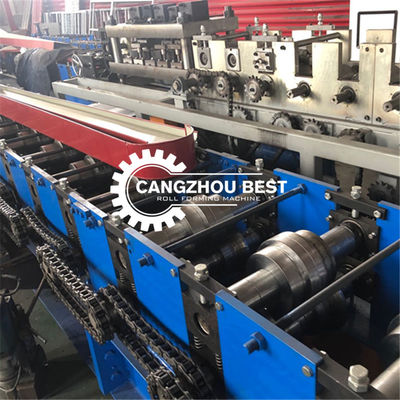

B. Roll Forming
(1) Raw Material: Colored steel or galvanized steel
(2) Material Thickness: 0.8-2.2mm
(3) Working Speed: 8-12m/min
(4) Rollers: 11 rollers ( based on drawing )
(5) Material for Rollers: GCr15, polished, heated, quenched HRC55-60°
(6) Motor Power: 3KW
(7) Roller Diameter: 70mm
(8) Machine Side Plate Type: Guide Pin Type
(9) Transmission Type: Chain Transmission

C. Hydraulic Cutting
(1) Cutting Type: Hydraulic, automatic cutting
(2) Blade Material: Cr12 with polished, heated, quenched HRC 60-62
(3) Power: 3KW







Our service:

1. Installation and training of roof forming machine:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roof forming machine:
a.One year guarantee for whole roof forming machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the roof forming machine, we will repair it for free in one year.





RFQ



1) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.



2)Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly



3) Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit.  ALIBAB’s Gold supplier with BV assessment and CE certificate.



4)Q:What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.



6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
