Product Details:
|
| Product Name: | 5mm Thickness CU Guardrail Post Glazed Highway Guardrail Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Coil Diamter: | 450-550 | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| Highlight: | Glazed Guardrail Machine,Cu Post Guardrail Machine,450mm guardrail machine |
||
5mm Thickness CU Guardrail Post Glazed Highway Guardrail Roll Forming Machine
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 600mm | 800mm |
| Capacity | 5000kgs | 5000kgs-15000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |

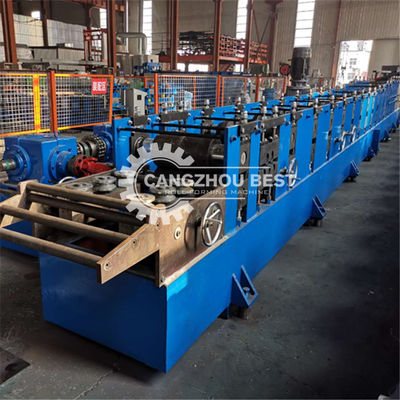

roll forming machine
Material Thickness: 0.3-0.8mm PPGI and GI
NO. of roller Stations: 14groups
Material for Rollers: high grade Gcr15 steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 90mm
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 22kw
Driven type: Chain or gear box
Speed:8-12m/min
Punching
using hydraulic punching
oil cylinder dia: DIA 140mm
working pressure:20mpa
mould material: Cr12 quenched 58°-62°
hydraulic power:7.5kw
size: 1.5m long*1.1m wide*1.2m high
Stacker
| Type |
Manual |
Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
