280mm Chain Driven 3kw Ridge Cap Roll Forming Machine

Large Image : 280mm Chain Driven 3kw Ridge Cap Roll Forming Machine

Product Details:

Place of Origin:	China, Hebei
Brand Name:	CHBEST
Certification:	CE/ISO
Model Number:	CHBEST-280

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	FOB
Packaging Details:	Standard
Delivery Time:	35days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15sets/month

Contact Now

280mm Chain Driven 3kw Ridge Cap Roll Forming Machine

Description

Name:	Best 280 Chain Driven Metal Galvanized Ridge Cap Roll Top Roll Forming Machine 380V	Color:	As Your Require
Material:	PPGI/GI	Warranty:	2 Year
Power:	3kw	Shaft Material:	45# Steel
Highlight:	3kw Ridge Cap Roll Forming Machine , 280mm ridge cap roll forming machine , PPGI ridge cap roll former

Best 280 Chain Driven Metal Galvanized Ridge Cap Roll Top Roll Forming Machine 380V

Machine Component

Decoiler	1set
Roll Forming Machine	1set
Cutting Device	1set
Hydraulic Pump	1set
PLC Control System	1set
Output Table	1set

Decoiler

Inner Diameter	450-550mm
Out Diameter	1200mm
Capacity	3000kgs
Type	Hydraulic Or Manual

Motor Power	3Kw+3Kw	Operating Voltage	380V
Production speed	8 - 10 m / min
transfer method	Chain drive
Machine forming shaft	A total of 10 rows of large shaft: 250H steel, vertical plate 12mm
Adjust the set	Using 45 # steel seamless steel pipe finishing
Wheel material	45 # steel hard chrome plated
Shaft material	45 # steel shaft diameter: 65mm solid shaft
Forming part	Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast.
Numerical control system	PLC panel, KEL-320 displa
counter	The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP
Cut	3Kw pumping station, shear pressure type equipment
Pressure plate thickness	0.3—0.8mm
Random attachments	The use of a manual, a gift rack
warranty period	12 months

Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Deta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese

Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand

Output Table

No power type
Length: 2m

Packing Detall

1	1*40 GP container ; main machine naked and fastened with iron wire in the container.
2	Rollers were painted with oil and packed with plastic film.
3	Electrics devices be packed with wooden box.for Standard export packing.
4	All Components Fixed by steel wire with Container.

Our Ridge Cap Forming Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

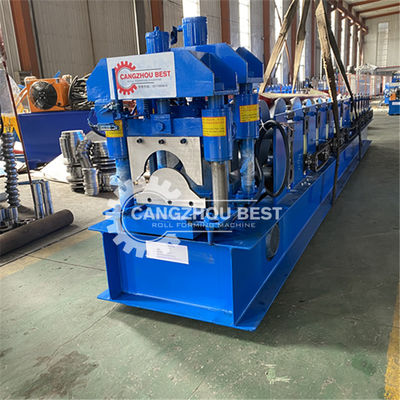

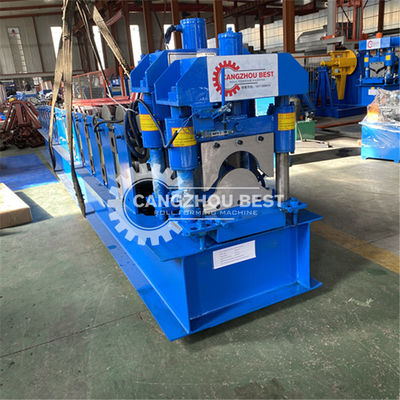

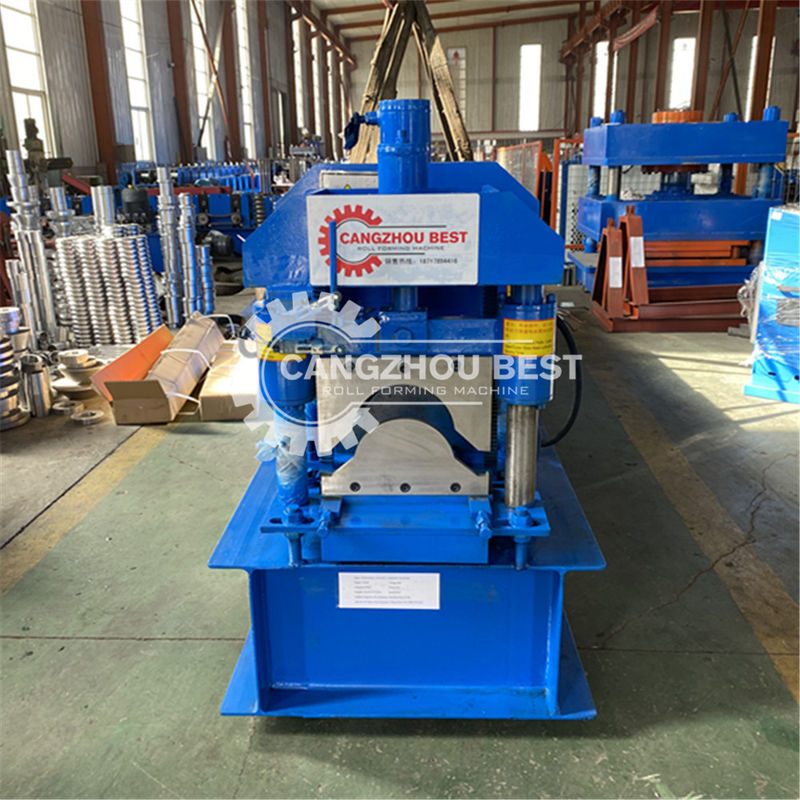

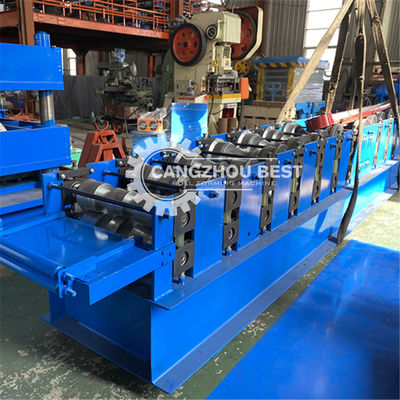

280mm Chain Driven 3kw Ridge Cap Roll Forming Machine 0

280mm Chain Driven 3kw Ridge Cap Roll Forming Machine 1
