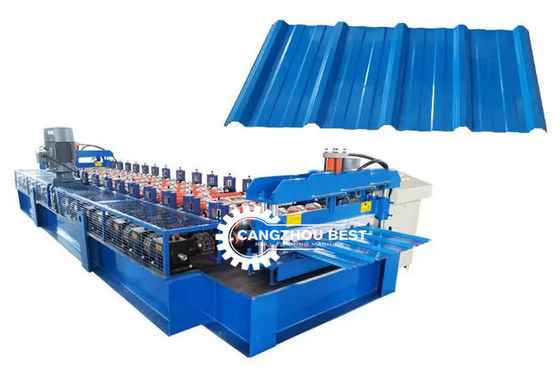

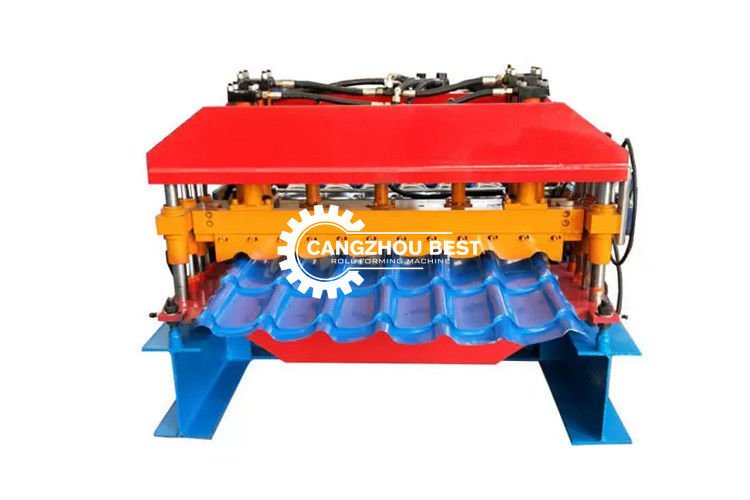

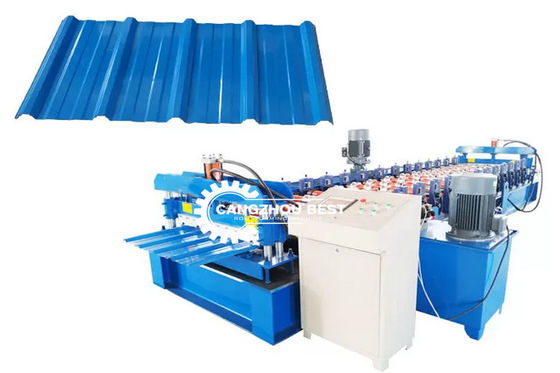

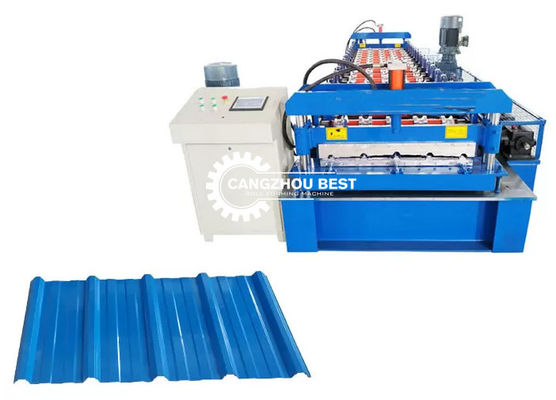

PLC Control 75mm Roof Tile Roll Forming Machine For Buildings

PLC Control 75mm Roof Tile Roll Forming Machine For Buildings
PLC Control 75mm Roof Tile Roll Forming Machine For Buildings PLC Control 75mm Roof Tile Roll Forming Machine For Buildings PLC Control 75mm Roof Tile Roll Forming Machine For Buildings PLC Control 75mm Roof Tile Roll Forming Machine For Buildings

Large Image :  PLC Control 75mm Roof Tile Roll Forming Machine For Buildings

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$8000---10000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

PLC Control 75mm Roof Tile Roll Forming Machine For Buildings

Description
Cutting Blade Material: Cr12, Heat Treatment Weight: 5T Or As Per Request
Control System: PLC Control System Raw Material: Pre-painted Coil Sheets, Soft
Shaft Diameter: 75mm Roller Materia: 45# Steel
High Light:

PLC Roof Tile Roll Forming Machine

,

75mm Roof Tile Roll Forming Machine

,

75mm Shaft Roll Forming Machine

Professional Roof Tile Roll Forming Machine PLC Control For Roofing Buildings



Quick Detail:

  1. Thickness : 0.4mm-0.6mm
  2. Material : High quality pre-painted coil
  3. Input width : 1219mm
  4. Effective width: 960mm
  5. Material weight : 5MT as standard
  6. Coil inner diameter : 508mm
  7. Driven way: by driven AC motor or Siemens motor with gear box on each stage to improve the precision
  8. Pressing stair distance tolerance : ±0.5mm
  9. Cutting tolerance : ±1mm

Application:

Most of time, a glazed tile roll forming machine has more roll forming stations and rolling tools than a regular roof panel roll forming machine does, and an extra hydraulic pressing equipment also contributes a higher price compared to a regular metal roofing sheet roll forming machine.

This semi-round shape profile is popular in Philippines, Sri Lanka with heavy strength pressures

Machine list:

  1. Hydraulic un-coiler or manual de-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, stop to press
  4. Hydraulic cutting device after step tile pressing
  5. Run out rack
  6. PLC control systems

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons

Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW

  • Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

  • Roll forming machine with stair-drawing and cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet, soft material
Thickness 0.4mm*0.6mm
Coil input width 1219mm
Carriage Frame design Wall-plate-frame-design, plate thickness 18mm
Roll forming stages 16 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 7.5Kw
Production speed 3-4m/min, 7-8m/min as request
Stair depth 20mm or as request
Stair distance 350mm or as per order
Hydraulic group 7.5Kw with professional fans cooling system
Material of cutting blade Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3Ph or as the customer's requirements
Major Color of Machine Painted RAL 5015(Blue) or as per customer’s requirements
  • PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Control the quantity, drawing length (250-350mm) & cutting length (min.800mm) automatically.

Cut-to-length tolerance≤±1mm

Control Voltage 24V

  • Product Rack Un-powered, 3 units
