Product Details:
|
| Name: | High Quality Aluminium Corrugated Metal Glazed Tile Roofing Forming Making Machine | Usage: | Buidling |
|---|---|---|---|
| Marketing Type: | New Product 2020 | Voltage: | 380v |
| Speed: | 8-12m/min | Place Of Origin: | Hebei,China |
| Key Selling Points: | Long Service Life | Way Of Drive: | 1.0 Inch Single Chain |
| Tile Type: | Steel | Control System: | PLC Control |
| High Light: | glazed tile roll forming machine,12m/min Tile Roll Forming Machine,Corrugated Tile Roll Forming Machine |
||
High Quality Aluminium Corrugated Metal Glazed Tile Roofing Forming Making Machine
1. Working Flow:
Decoiler--feeding materil--roll formng--pressing and cutting--output table
2. Component:
|
COMPONENT FOR Roof Sheet Glazed Tiles Roll Forming Machine
|
|||
|
Name
|
Quantity
|
Units
|
|
|
Decoiler
|
1
|
Set
|
|
|
Main Machine
|
Feeding device
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
|
Cut Equipment
|
1
|
Set
|
|
|
Hydraulic system
|
1
|
Set
|
|
|
Electric control system
|
1
|
Set
|
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
|
3. Technique parameters
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2.Installation Dimension (L*W*H): | 6.5m*1.5m*1.4m(depend on design) |
| 3.Main motor power | 3KW ~4KW with Cycloidal reducer |
| 4.Hydraulic station power | 3KW ~4KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6.Thickness of material | 0.2mm~0.8mm |
| 7.Diameter of principal axis | Φ70-90mm |
| 8.Material expand width | 1000,1200,1250mm |
| 9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11.Controlling system | PLC |
| 12.Processing speed | 3-6m/min |
| 13.Processing precision within | 1.00mm (depend on design) |
| 14.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15.Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16.Roller station | 8-20 Rollers |
| 17.Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 4.6T |
4. Our service:
|
1. we can produce the special machine,send your drawing to us,we can design for you. 2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself. 3. we provide a one-year warranty and lifelong technical support, we can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100. 4. engineers available to service machinery overseas. 5. if you come to visit our factory,we can book the room for you, car pick up to send. Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available! The real data, the most professional foreign trade team, your best trustable partner. |
5. Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

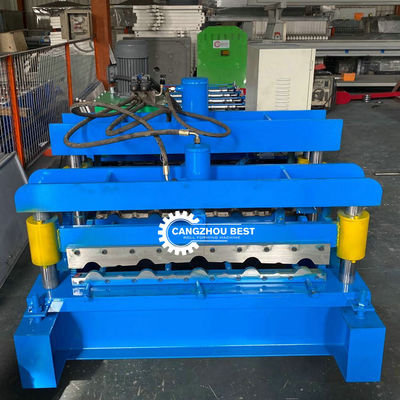

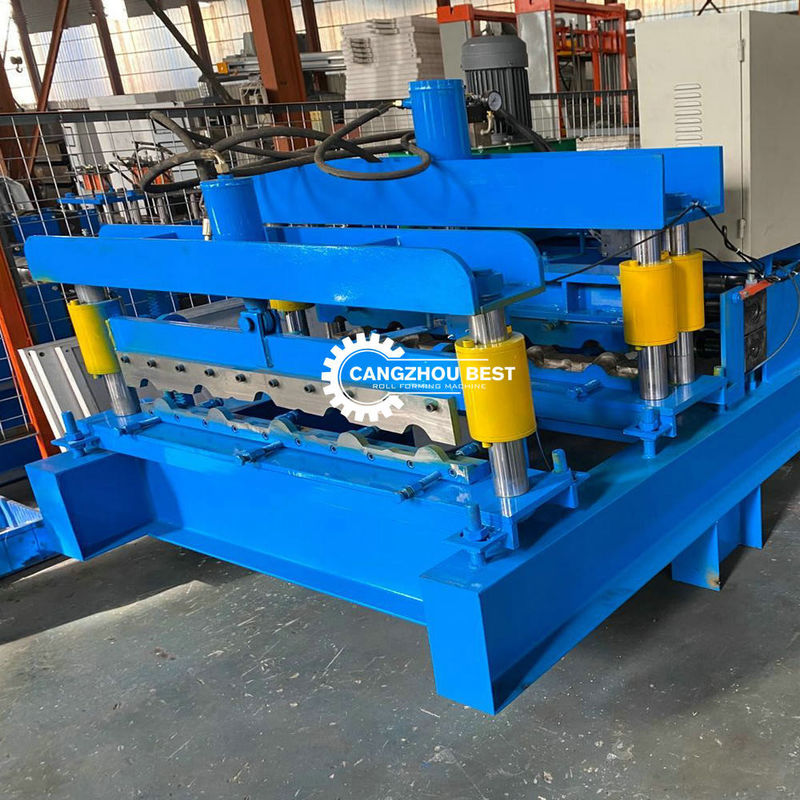

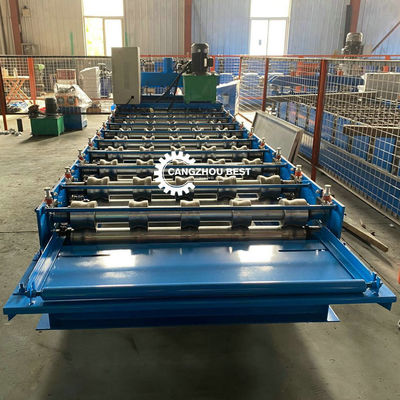

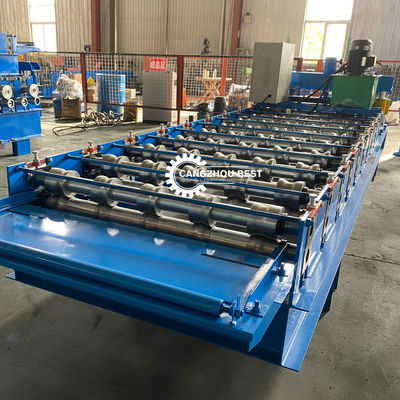

6. Machine photos:
