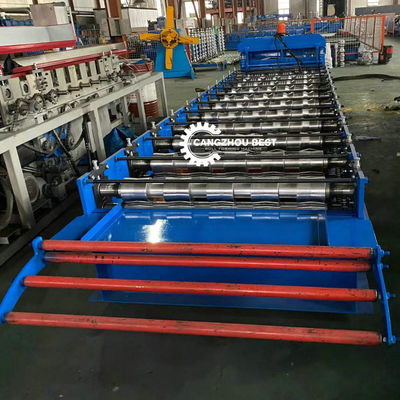

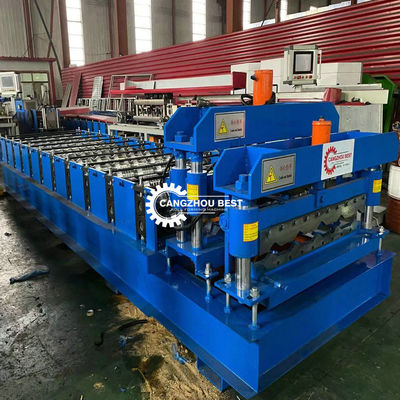

3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine

3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine
3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine
3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine 3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine 3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine 3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine 3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine

Large Image :  3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine

Description
Product Name: 3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine Type: Tile Forming Machine
Machine Speed: 4-6m/min Rolling Thickness: 0.3-0.8mm
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic Place Of Origin: Hebei, China
Certification: CE SGS ISO9001 Tile Type: Color Steel
High Light:

800mm Roof Tile Making Machine

,

3kw Roof Tile Making Machine

,

ppgi tile roll forming

3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine



Suitable Products:

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.



Working flow



Decoiler----feeding----roll forming----pressing----cut to length----output table

Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set

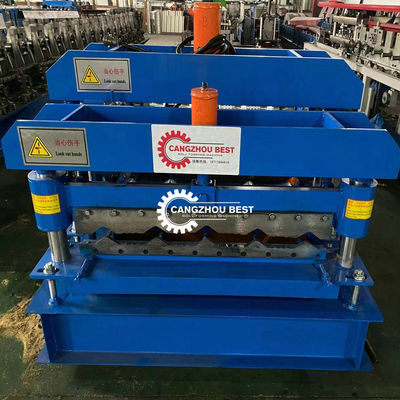

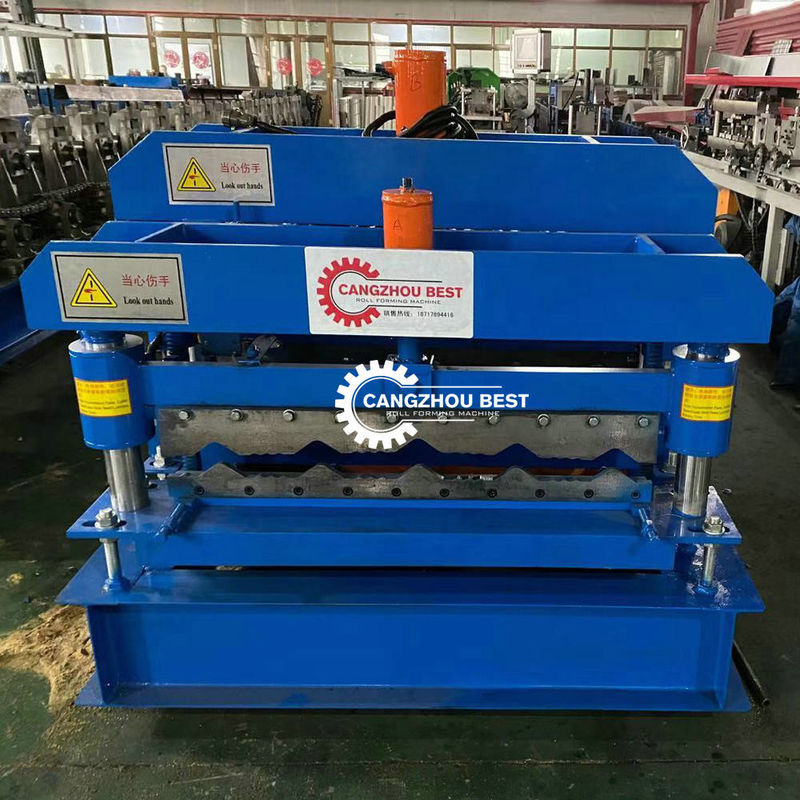

3. Pressing Device 1 Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Hydraulic Pump 1 Set
7. Stacker 1 Set



Main machine

The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece.

The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.



PLC computer controlling system

You can set the running speed/length/batch/pieces of the steel sheet on the PLC computer touch screen,Then the machine can running auto or you can choose the manual mode. The whole operation process are easy to understand.



Hydraulic system

Using for punching holes/punching logo/cutting steel sheet need put hydraulic oil into the oil tank.



Decoiler

This one is 5 ton manual decoiler.. There are still hydraulic decoiler.you can choose what you need hydraulic decoiler can improve the production efficiency by feeding the material automatic.



Roofing Machine Technical Parameter:

No. Item parameter
1 Machine size 9000*1500*1200mm
2 Machine weight 5t
3 Machine power 3kw
4 Hydraulic engine 3KW
5 Roll speed 4-6M/Min
6 Roll stations 16
7 Roller material GCr15
8 Effective width 800mm
9 Feeding width 1m/1.2mm/1.22mm
10 Voltage 380V 60Hz 3PH/Customized
11 Material thickness 0.3-0.8mm/Customized
12 Control System Schneider/Delta/Customized



Components of glazed roof tile roll forming machine

1 Manual uncoiler 1 set
2 Sheet guiding equipment 1 set
3 Roll forming system 1 set
4 Pressing device 1 set
5 Post-cutting equipment 1 set
6 Hydraulic station 1 set
7 Electric controlling system 1 set
8 Support table 2 pieces



The advantage of metal roofing machine,double layer roll forming machine:

1.Good quality: We have a professional designer and experienced engineer team. And

the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within 18 month since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation: All machine cotrolling by PLC computer controlling systerm.

5. Elegant apperance: Protect the machine from rust and the painted colour can be customized

6. Reasonable price: We offer the best price in our industry.



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.



Photos

If you need roll forming machine, just send me a inquiry, we have many type machines, we can produce according to your requirement.

3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine 0

3kw Villa Plc Control 800mm Glazed Metal Roof Tile Making Machine 1
