Product Details:
|
| Name: | Galvanized Metal Sheet V Crimp Plc 20mm Roofing Making Machine | Roller Material: | Hydraulic Cutting |
|---|---|---|---|
| Voltage: | 380V, 50HZ, 3 Phase | Cutting Blade Material: | Cr12 |
| Screen: | Color Touch Screen | Bottom Frame: | 350H Steel |
| Control System: | PLC | Key Selling Points: | Easy To Operate |
| Speed: | 8-12m/min | Side Panel: | 20mm |
| High Light: | Plc Roof Making Machine,20mm Roof Making Machine,8m/min Roof Making Machine |
||

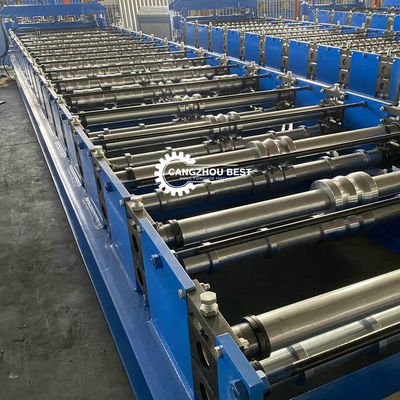

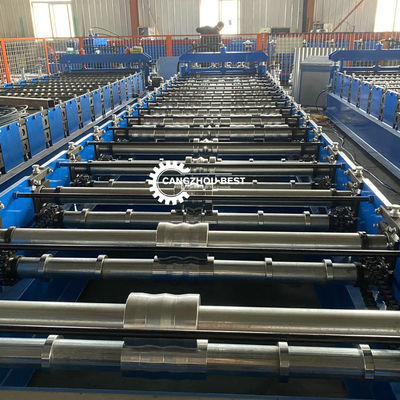

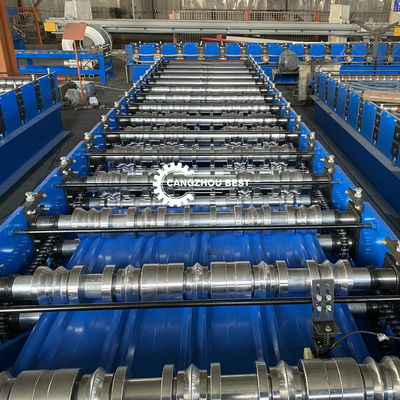

Galvanized Metal Roofing V Crimp Panel Roll Forming Machine Production Line
1. Company information:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
2. Machine details:
| uncoiler | |
| Loading capacity | 5T |
| Inner diameter | 470-530mm |
| Steel coil width |
914, 1000, 1220, 1250 mm. According to your actual drawing. |
| Working speed | 0-15m/min, adjustable |
| feeding table |
| It is used to control the width and position of the steel sheet. |
|
The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel. |
| main frame | |
| Material | 350 H steel |
| Feature |
more table, no shaking |

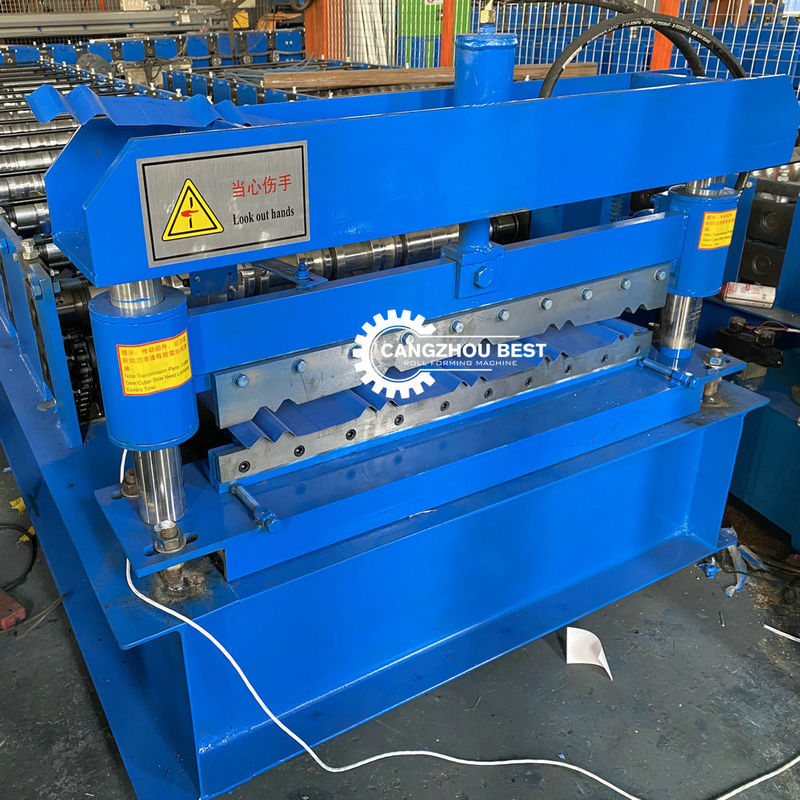

| cutting system | |
| Material of blade | Cr12MOV, much better than normal Cr12 material |
| Hydraulic power |
3KW |
| control cabinet | |
| Suitable power |
380V, 50Hz, 3phase or according to your need. |
| Feature |
The whole process is automatically controlled by the computer. In this way, you can ensure the accuracy and easy work. |
3. Parameters
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 6.5 tons |
| 9 | length | 6.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
4. Packing
Standard Export Packing.
1). One 40ft container for loading one set machine with manual decoiler;
2). The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3). Spare parts and some small parts packed in plastic tooling box;
4). All Components Fixed by steel wire with Container.
5. Our service:
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours
We can produce according to your requirements.
