Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | About 13 Tons |
| Tile Type: | Colored Glaze Steel | Use: | Roof And Wall Or Any |
| High Light: | glaze deck roll forming machine,8m/min deck roll forming machine,1.8MM deck roll forming machine |
||
Product Description

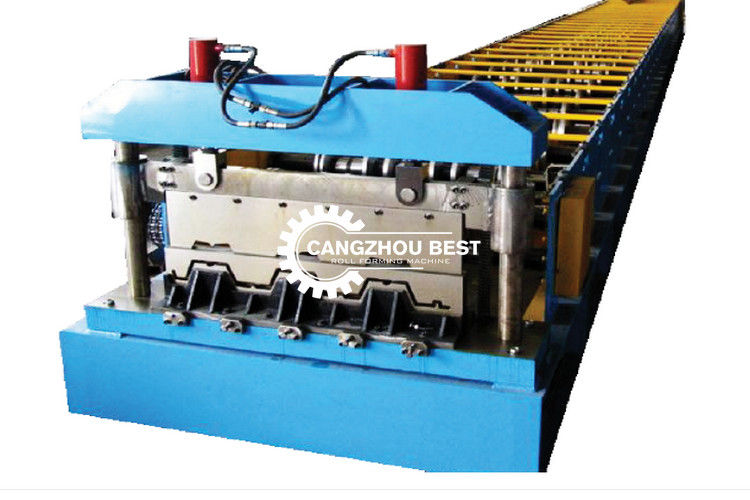

Floor Deck Roll Forming Machine
Item YX-75-268-780
Roll forming machine for production floor deck & building material.
Metal Forming machine for steel floor deck technology detail
1,Technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized | |
| T.(mm) | 0.6-1.8mm | |||
| Yield Strength (Mpa) | Q235 | |||
| 2 | Forming product Width | 310-914.5mm | ||
| 3 | Forming speed (m/min) | 2-8m | Including hole | |
| 4 | (KW) | 18 KW | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Collect Rack | 6m | FYR | |
| 7 | Voltage | AC380V,50Hz,3P | Customized | |
Floor Deck line process
Uncoiler →Guide device → roll forming machine →shear device (including knife)→ finished product rack
Floor deck machine layout as below
Design drawing
Floor Deck Drawing
Roll Forming machine list
Uncoiler
1,Type Manual Expansion
2,Parameter
1) Passive discharge
2) Coil weight:< 5T
3) Coil inner D.:φ450mm-φ530mm
4) Max. Width.1300mm
5) Thickness .0.4-1.8mm
Guide device
Main Forming machines

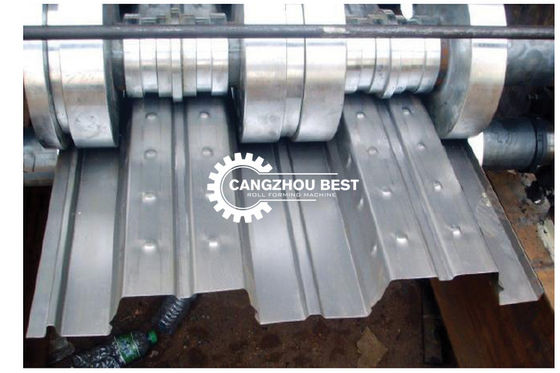

3.1 Forming Roller:20 stations,and add Rub-roll, To make sure the surface profile no scratches.
3.2 Side Panel:T.18mm ,A3 steel Heavy duty .
3.3 Rolling speeding: 2-8 m/min.
3.4 Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
3.5 Motor power:7.5KW.
3.6 Main Roller :￠75mm,45 #.
3.7 Equipment base: 45 # H type using welded steel plate.
3.8 Transmission: chain drive.
3.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Hydraulic shear for cutting floor deck
Collect Rack
Collect Rack can do automatic flat rack or manual rack
Below photo is automatic collect
Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
(Ⅶ)Machinery main components of the brand
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.
Devices completed floor deck prodution line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Guide device | 1 | |
| 3 | Forming machine | 1 | |
| 4 | Follow Shear | 1 | Including knife |
| 5 | Collect rack | 1 | |
| 6 | Control system | 1 |
Floor deck machine accessories brand
| No. | Name | manufacturer |
| 1 | Motor & Reducer | Domestic brands |
| 2 | The main key bearing | Domestic brands |
| 3 | Inverter | Shilin |
| 4 | PLC Systems | Siemens |
| 5 | Low-voltage electrical | Schneider |
| 6 | Encoder | Omron |
| 7 | touch screen | Siemens |
| 8 | Hydraulic system | Domestic brands |
Floor deck roll forming machine for mass production construstion material foor deck.
Floor deck name as floor board, also known as profiled steel plate, steel plate, steel floor plate. It was first called the profiled steel plate, which is the collective name for all the steel plates pressed by the plate press.
The floor slab is made of galvanized steel sheet by roll forming, and its cross section is V-shaped, U-shaped, trapezoidal or similar. It is mainly used as a permanent template and can also be selected for other purposes.
The earliest profiled steel plates were mainly used for roof slabs on the factory floor, and later there were profiled steel plates for the floors, which were gradually classified as floor deck.
