Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 6T Roof Sheet Roll Forming Machine |
| Use: | Roof/wall | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 12m/Min Roof Tile Roll Forming Machine,12m/Min Corrugated Iron Sheet Machine,0.3mm roof tile roll forming machine |
||

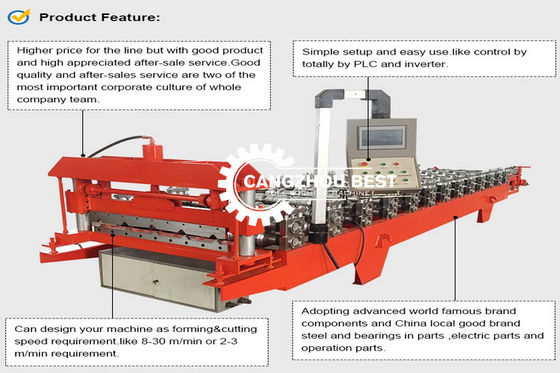

The double layer roll forming machine consist of uncoiler and its base,infeed guides,fixed position driven forming machine, shearing device,hydraulic station,PLC control console and so on.
our company has hundreds of profile models for this series roll forming machine,We can design different kinds of profile for machine, as aper customers requirement.
Technical Parameter
|
Item NO. |
Description |
Offered Specification |
| 1.1 | Rolling speed | 12m/min |
| 1.2 | Rolling thickness | 0.3mm-0.8mm |
| 1.3 | Raw material | Color painted coils |
| 1.4 | Dimension | About 8000×1600×1200(mm) |
| 1.5 | Effective width | 836mm |
| 1.6 | Feeding Coil width | 1250mm |
| 1.7 | Roller stations | About 18 stations |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ76mm |
| 1.10 | Transmission | By chain 1.2 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 10m+-0.5mm |
| 1.14 | Hydraulic station | 4kw |
Main Components
| No. | Name | Quantity |
| 1 | 5 tons passive de-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Control box | 1 unit |
| 4 | Hydraulic station | 1 unit |
| 5 | Out tables | 2 units |
Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service
Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
| Roll forming machine name | Hot sale South America 840 Trapezoid steel roof tile roll forming machine |
| Brand of plc | Delta |
| Material of rollers | High grade 45# steel with 0.05mm chormed |
| Material of shafts | Soild high grade 45# steel |
| Diameter of shaft | 75mm |
| Material of blade | Cr12 ateel |
| Transmission | Chain |
| Motor voltage | 220V 60Hz 3P or customized |
| Motor kw | 4kw |
| Cutter system | Automatic Hydraulic cutter system |
| Hydraulic pump kw | 3 kw |
| Machine base frame | Steel channel welding with four supported legs |
| Raw material | ppgi |
| Thickness of raw material | 0.3-0.6mm |
