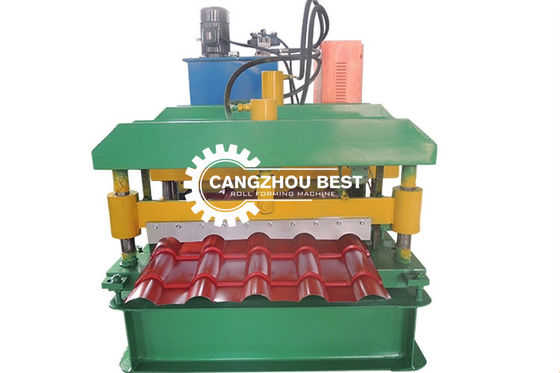

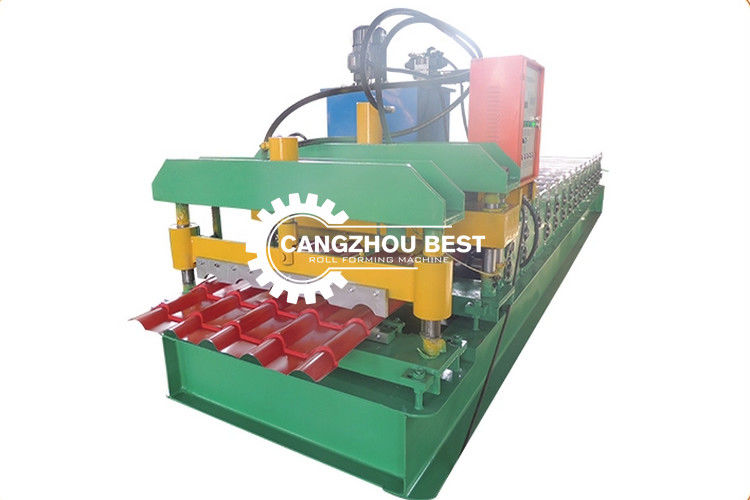

Aluminium 3m/Min 0.7mm Glazed Tile Roll Forming Machine

Large Image : Aluminium 3m/Min 0.7mm Glazed Tile Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$8000---12000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Aluminium 3m/Min 0.7mm Glazed Tile Roll Forming Machine

Description

Tile Type:	Colored Glaze Steel	Voltage:	380V 50Hz 3phases
Condition:	New	New:	6T Roof Sheet Roll Forming Machine
Use:	Roofing	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	aluminium glazed tile roll forming machine , 3m/min glazed tile roll forming machine , 0.7mm glazed tile roll forming machine

Direction for use

Steel glazed roff tile making machine roll forming machine:

1.Put all necessary parts on the right location,make the ground falttening.

2.Connect electric wires,use 6-8 mm² support line and keep grounding.

3.Fill hydraulic oil in the pump.not too full,three quarters are ok.

4.Feed raw materil into the machine slowly,make it run smoothly then automatic. 5.Pay attention to final sheet collection,do not scretch it or hurts people.

Description of application effect

1.The whole line working speed is about 3m/min.,max working speed could be 5 meters per minute.

2.Feeding material width should be confirmed before machine design .the width are changeable,

3.Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .

4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing.

5.Hydraulic pre-cutting are provided.

Our Strength

1.Four technicans on the roll forming machine filed over 20 years.

2.60 expericend workers for machine assemble and make them qualified.

3.Three engineer who know English for foreign installment and debugging.

4.20 professional sales person for longlife customer's service.

5.More than 30 sets of grinders, milling machines and various high-precision CNC machines for raw material treatment and good machine design.

6.Highly-experienced assembly operators which underline our strong production capability helps for high-class machine together.

After-sales Service Provided	Engineers available to service machinery overseas
raw material	PPGI
PLC	mitsubishi/delixi/siemens
warranty	18 months
Cutting blade material	Cr12 Quenching
Roller material	45# Forged Steel
Key Selling Points	Easy to operate
Color	Customized

2.main parameter table.

Material thickness	0.3~0.7mm
Material yield stress	230~550 Mpa
Max. forming speed	8~25m/min
Roller material	45# steel with chrome treatment
Roller driven type	Chain transmission
Controller & operation	PLC & touch screen and button
Hydraulic system pressure	12 Mpa
Hydraulic station motor power	3 Kw
Main motor power	4~7.5Kw
Total power	7~10.5Kw
Total weight	About 6000~8000 Kgs

TRAPEZOID TILE ROLL FORMING MACHINE
Feeding material	PPGI
Thickness of the plate	0.3-0.8mm
Coil width	914/1000/1200/1220/1250mm
Machine size	about 7000mmX1600mmX1000mm
Diameter of the axle	Φ70/Φ75mm
Rolling stages	15-18 stages
Productivity	8-12m/min
Total power	4kw machine motor +4 kw pump station motor
Voltage	220V 60Hz 3phase or as requirement
Weight	about 4.5T
Base frame	300H steel
Side board thickness	16mm
Cutting blade	Cr12 with heat treatment
Cutting system	Hydraulic cutting system after forming
Control cabinet	PLC and frequency changer in it
