Multifunctional 4mm Plc Color Steel Roll Forming Machine

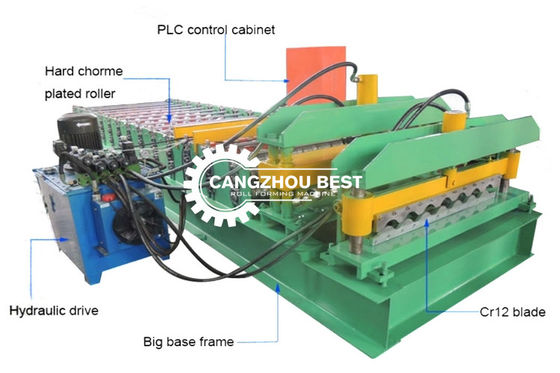

Large Image : Multifunctional 4mm Plc Color Steel Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$8000---12000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Multifunctional 4mm Plc Color Steel Roll Forming Machine

Description

Tile Type:	Colored Glaze Steel	Voltage:	380V 50Hz 3phases
Condition:	New	Weight:	6T Roof Sheet Roll Forming Machine
Use:	Wall	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
High Light:	multifunctional color steel roll forming machine , 4mm color steel roll forming machine , plc color steel roll forming machine

-exported quality roof tile roll forming machine

1.Ø95 mm shaf

2.T35 mm shaft box

3. H350 mm steel frame

4.Siemens PLC with color screen

5. auot hydraulic decoiler and auto stacker(selectable)

cost proformance quality roof tile roll forming machine

1.Ø70 mm shaf

2.T18 mm board connect wall

3. H250 mm steel frame

4.China famous PLC with color screen

5. manual decoiler and received table

Feature Of Our Roll Forming Machines:

1.Our floor deck roll forming machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.floor deck roll forming machine Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free
3. We can make and design will kinds of roll forming machine according to customer's request.

2.2. Supply components of the machine:

Description	Quantity (set)
6Tmanual decoiler	1
Guiding device	1
Hydraulic pre cutter	1
Forming system	1
Transmission system	1
Hydraulic guillotine&punching	1
Support table	2
Hydraulic station	1
Control box	1
Spare parts and tools	1

2.3. General Parameters of machine:

NO	ITEM	Parameter
1	Forming Speed	Max18m/min(depend on quantity of punching) 10-15METERS/MIN depends on the quantity of punching holes
2	Forming station	Around 18 groups
3	Total Power	About 5.5 KW
4	Total Weight	About 6500kgs
5	Voltage	220v,50hz,3p
6	Diameter of shaft	70/80mm
7	Installation Size	9.5 * 1.2 M*1.5

Main parts Material

No	Item	Parameter
1	Forming Shaft	s45c with grinding process and heat treatment HRC28-32,twice CNC
2	Forming Roller	s45c with vacuum heat treatment with hard chrome coatingHRC50-52
3	Cutting Blade	Cr12MoV with hard treatment
4	Control System	PANASONIC PLC, others are Schneider etc.
5	Electrical motor	China quality brand
6	Touch screen	Win view
7	PLC	Panasonic
8	Rely	Schneider
9	Encoder	Omron

Product name	Tile Forming Machine
Core Components	Motor
Motor	4kw
Theoretical yield	None
Weight	10000KG
Tile Type	Colored, Colored Steel
Payment terms	L/C,T/T,Western Union,MoneyGram
Material of rollers	45# forged steel,with hard chrome plating

Part details	Item Name	Specification
Manual decoiler	Carrying capacity	5 tons
Raw coil	Coil material	GI
	Feeding width	1250 mm
	Thickness	1.2-1.5 mm
Forming part	Roller station	28 station
	Material of roller	GCR 15
	Shaft Diameter	95mm
	Material of shaft	45# steel with 0.05mm chrome
	Weight of machine	About 10 tons
	Machine length	About 12 m
	Productivity	8-15 m/min
Cutter	Material of cutter	Cr 12
Cutter	Operation	Hydraulic cutting
Power	Operation	Chain transmission
	Driving way	2 inch chain
	Voltage	380V 50Hz 3 phases
Control syestem	Control	PLC
Control syestem	Motor	15*2 kw

FAQ

Q1. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms like L/C are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.

Q4. What will you do if the machine is broken?

A4: We provide 24 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?

A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour). 2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
