Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Weight: | 15 T | Voltage: | 380V.50HZ.3Phase |
| Condition: | New | Product Name: | HIghway Guardrail Forming Machine |
| High Light: | 3.5mm crash barrier roll forming machine,15m/min Crash Barrier Roll Forming Machine,45kw Crash Barrier Roll Forming Machine |
||

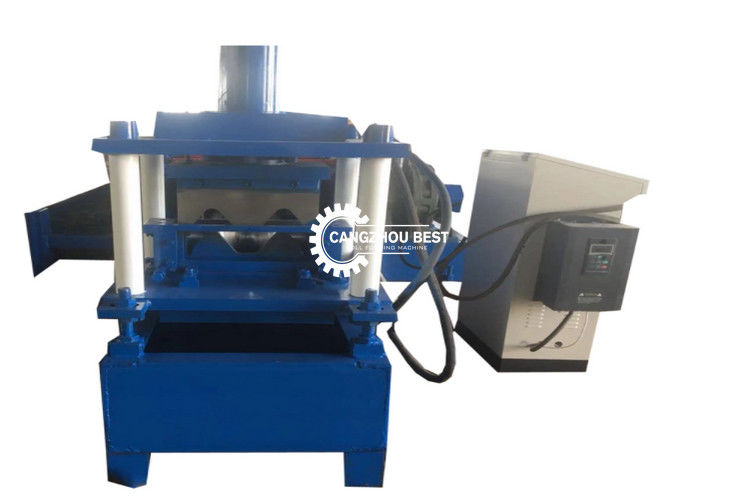

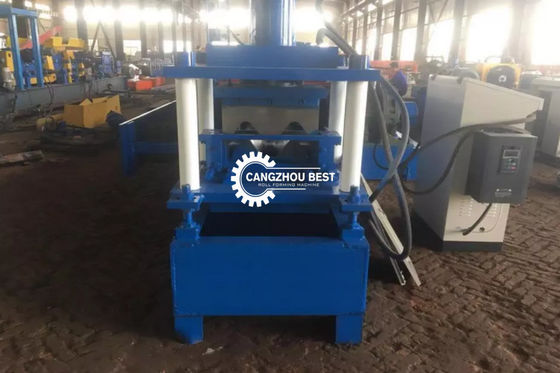

1.Photoes Of Machine
W Beam Steel Crash Barrier Board Making Roll Forming Machine for Highway Road
Panel profiles:
2. Parameters of guardrail machine :
| 1 | Model No. | Two waves highway roll forming machine |
| 2 | Max coil thickness | 3.5mm |
| 3 | Coli material | Steel or other |
| 4 | The bearing capacity of manual decoiler | 5 tons |
| 5 | shaft material | 45#steel |
| 6 | Out diameter | 100mm |
| 7 | numbers of forming steps | 20 stations |
| 8 | transmission | Differential gear transmission |
| 9 | Forming speed | 10-15m/min |
| 9 | main motor power | 45kw |
| 10 | voltage | 380V50HZ Three-phase or you need |
| 11 | dimension | 20.5*1.2*1.5m |
| 12 | cutting | Hydraulic cutting |
| 13 | Cutting power | 13.5kw |
| 14 | blade material | Cr12 steel with quenched treated 60-62°c |
| 15 | control system | PLC(Delta) |
| 16 | length tolerance | ±2mm |
| 17 | spare parts |
easy emaged parts:conk 2pcs, fuse-link 4pcs rubber mat: 1 pcs bolt spanner: 1 pcs |
| 18 |
The whole line including: Hydraulic decoiler, roll forming machine, cutting part PLC control system, run-out table. |
|
3. Components of W Beam Steel Crash Barrier Board Making Roll Forming Machine for Highway Road :
| No. | Name | Unit | Qty |
| 1 | decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
4. The main components of highway guardrail Crash Barrier roll forming machine:
(1) Double head Hydraulic Decoiler
(2) Roll-Forming M/C:
Steps: 17 steps Roller Material: CR15
Voltage: 3phase/80V/50-60Hz. Line speed: 10-12m/min;
Rolling chromium thickness: 0.05 mm
(3)Punching device
(4) Cutting Mechanism
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment: One set of cutting tool, one hydraulic tank, one cutter machine.
Stop to cut, Post cut cutting length tolerance: ± 2mm
Cutting tool material: VR12MOV quenching HRC58-62
(6)Computer control cabinet:
It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: Automatic and manual one.
(7)Fully auto curving machine for crash barrier/highway guardrail:
5. Working Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
A. One-Years product warranty.
B. Training and installation available.
C. The technical support for the whole life.
