Product Details:
|
| Type: | Tile Forming Machine | Tile Type: | Steel, Glazed Steel |
|---|---|---|---|
| Use: | ROOF | Voltage: | 380V |
| Certification: | CE | Warranty: | 1 Year |
| High Light: | automatic light steel keel roll forming machine,3mm light steel keel roll forming machine,hydraulic light steel keel roll forming machine |
||

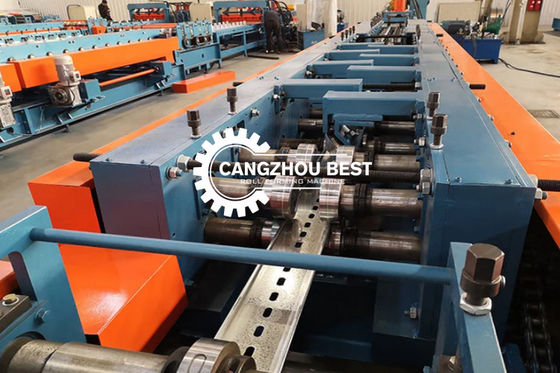

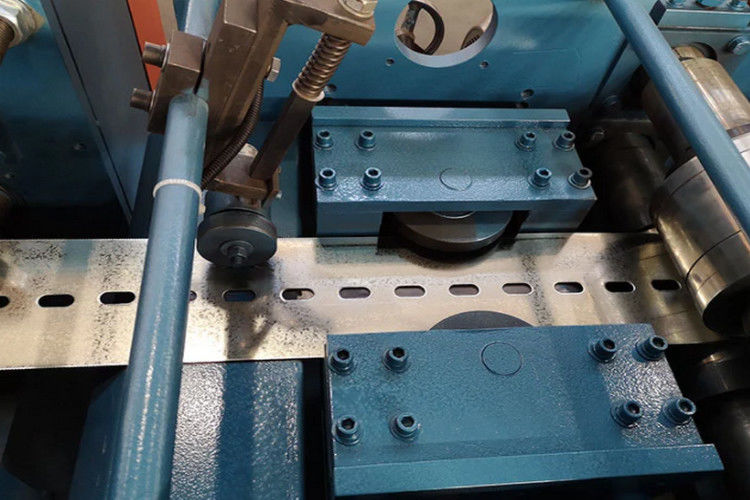

Metal Stud And Track Roll Forming Machine C/Z Interchangeable Purlin Roll Forming Machine
This C/Z Quick Interchangeable Roll Forming Machine adopts a special structure. The rollers for C&Z are changed very quickly without dismantle any parts . One machine can produce all specifications of C/Z/U purlins. Crimples are optional to increase rigidity of purlins. The width of the purlins can be automatically adjusted by PLC. If you need more economy solution then can be Handle Wheel adjusting as well. This machine we adopt pre-punching and pre-cutting or post-cutting system.
We have two solutions for you:
a) Fully automatic type: purlin size change and CZ interchange both are controlled by PLC and operating on touch panel, within 1 minute.
b) Semi-automatic type: purlin size change by press button, CZ interchange change manully (within 10 minutes)
| Description | ||
| Product Name | C Purlin Rool Forming Machine | |
| Machine Size | 8000mm*1600mm*1800mm | |
| Machine Weight | About 3 T | |
| Frame Materials | 350H steel | |
| Forming Shaft | Diameter | 80mm |
| Material | 45# quenched and tempered material | |
| Forming roller | 45# Forging Hard Chrome Plating | |
| Cutting System | Hydraulic Cutting | |
| Main Engine power | 22 KW with cycloidal reducer | |
| Forming Rows | 16 rows | |
| Forming Speed | 8-12m/min | |
| Pressing Thickness | 1-3mm | |
| Effective Width | 80mm--300mm | |
| Pressing width | 1000mm | |
| Electric Control System | SIEMENS/ Schneider | |
| Pump Station Motor | 15 KW | |
| Transducer | SIEMENS | |
| Coder | Wuxi "rip" or "Xin Ya" | |
| Switch | " CHINT "or" delixi" | |
The steel C stud roll forming machine with embossing, 11 rollers tation, 40 mm diameter shaft, Cr12 roller material, hydraulic cutting.
C/Z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available. The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine.
Specifications
| 1. |
Power requirement
|
Type | 380v/3ph/50hz | |
| Main Motor power | 11kw | |||
| Cutter power | 5.5kw with 2.2 kw servo motor | |||
| 2. | Forming speed(m/min) | 40-45m/min max | Not include the time of cutting | |
| 3. | Forming stations | 12stations | ||
| 5. | Material of rollers | CR12 | ||
| 6. | Thickness of structure | 30mm | ||
| 7 | Forming shaft diameter(mm) | 50 | ||
| 8 | Drive | Gear box | ||
| 9 | Type of cutting | Hydraulic cutting | ||
| 10. | Control system | PLC xinjie | ||
| 11. | Install dimension(depend on the final design) | 4.8m×0.6m×1.2m | Without panel length | |
| 12. | Total weight (Approx) | 2.3T | Depend on final design | |
| 13. | Screen | Text screen /touch screen | ||
Components
| NO | Name | Unit | Qty | |
| 1 | Man-made decoiler | set | 2 |
|
| 2 | Feeding Table | set | 1 | |
| 3. | Forming Rollers | set | 1 |
|
| 4. | Hydraulic cutting with hole punching | set | 1 |
|
| 5. | Profile Discharger | set | 1 |
|
| 6. | Electric Control system | set | 1 |
Brake down and so on (6)Power supplier 380V 50Hz 3phase |
