Product Details:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
| Warranty: | 1 Year | Certification: | CE/ISO9001 |
| High Light: | metal stud and track roll forming machine,PLC stud and track roll forming machine,1.6mm Stud And Track Roll Forming Machine |
||
1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
—————— working flow ——————

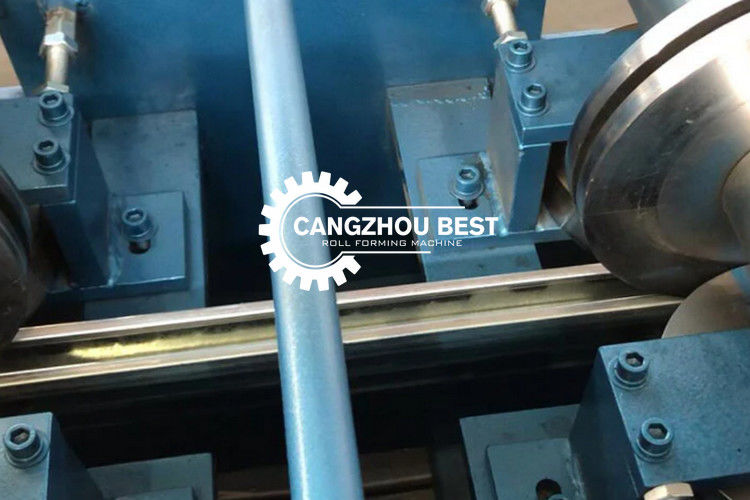

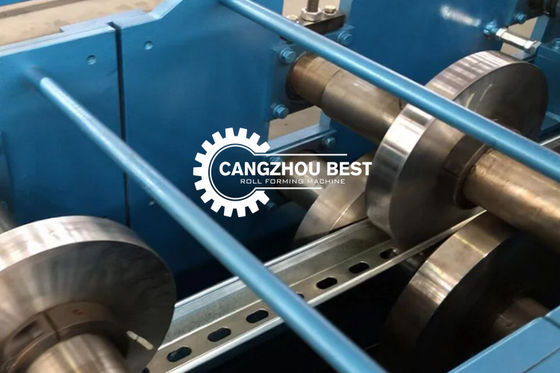

Light gauge steel stud and track roll forming machine production line
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine.
| 1.Processing Material | PPGI,GI |
| 2.Processing Thickness(mm) | 0.5-1.6mm |
| 3.Material of Rollers | 45# steel, with hard chrome coated |
| 4.Diameter of Shaft | 40mm |
| 5.Production Speed | 0-25m/min |
| 6.Roller Driven | Gear Transmission |
| 7.Cutting Model | Hydraulic Profile Cutting |
| 8.Length Measurement | Encoder |
| 9.Control Style | PLC |
| 10.Operation Model | Button + Touch Screen |
Technical parameter of product line:
1. Applied plank stuff: color armor plate
2. Applied slab thickness: 0.3-1.0mm
3. Charge in width: 1000mm
5. Rolling rows: 16rows
6. Rolling diameter: 70mm
7. Dimensions: 8.5m*1.5m*1.6m
8. Weight: 5t
9. Power: 4kw+3kw
Equipment parts
1. Steel strip supporting frame
2. Feeding platform
3. Automatic shearing system
4. Hydraulic system
5. Steel strip unfolding system
6. Computer control system (imported computer)
7. High-precision automatic counter
| Coil Material | Type | Galvanized Steel Sheet |
| Thick | 0.4-0.6mm | |
| Uncoiler (manual/automatic) | Weight Capacity | 3T |
| Inner Diameter | 460-520mm | |
| Outside Diameter | 1400mm | |
| Coil width | Max 600mm | |
| Feeding and | Pinch rollers | one pair, up and down |
| straightening device | Straightening rollers | up three, down four |
| Diameter of rollers | 75mm | |
| Roll Former | Frame type | single station |
| Forming Roller stand | about 14 Groups | |
| Shaft material | High grade 45# steel, | |
| Heated and quenched HRC55-60° | ||
| Shaft diameter | 50mm | |
| Roller material | GCr15 | |
| Drive Type | By gear | |
| Forming Speed | 40-45m/Min | |
| Motor | 5.5KW reducer with | |
| requency control | ||
| Cutting | Type | After-cutting, hydraulic |
| Hydraulic cutter | Material of mould | Cr12 |
| With quenching treatment55-60° | ||
| Cutting tolerance | 10M+/- 2.0 mm | |
| Feature | no distort, no wasting , high safe factor.(main motor stop cutting) |
|
| PLC cabinet | PLC | XINJIE |
| Length Controller | Encoder | |
| Operation | Touch Screen | |
| Transducer | Delta | |
| Hydraulic station | Hydraulic station power | 4 KW*2 |
| Hydraulic pressure | 15 Mpa | |
| Runout Table | Non-power type | 2 pcs |
