Product Details:
|
| Name: | 1.6mm Automatic Metal Door Frame Channel Roll Forming Machine With Punching Holes | Condition: | New |
|---|---|---|---|
| Place Of Origin: | Hebei, China | Roller Material: | GCr15 |
| Production Capacity: | 10-20m/min | Cutting Type: | Hydraulic Cutting |
| Control System: | PLC | Driven System: | Chain |
| Key Selling Points: | Easy To Operate | Material: | Galvanized |
| High Light: | 1.6mm channel roll forming machine,punching holes channel rolling machine,20m/min channel roll forming machine |
||
1.6mm Automatic Metal Door Frame Channel Roll Forming Machine With Punching Holes
1. Product profile
Full automatic steel door frame roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machine is a complete production line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feeding & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.
2.Technical Parameter
A. Manual Decoiler
| Max Width | 1250mm |
| Inner Diameter | 500mm |
| Outer Diameter | 1200mm |
| Max Weight Capacity | 5T |
B. Roll Forming
| Raw Material | galvanized steel |
| Material Thickness | 0.8-2.2mm |
| Material for Rollers | GCr15, polished, heated, quenched HRC55-60° |
C. Hydraulic Cutting
| Cutting Type | Hydraulic, automatic cutting |
| Blade Material | Cr12 with polished, heated, quenched HRC 60-62 |
D. Control System
| Electrical Control | PLC Frequency Control System with touch screen |
| Voltage | 380V/3Ph/50Hz(or as your local standard) |
E. Output Table
| It is simple and used to load finished product |
| Length: 4m |
3. Main components
| De-coiler | 1 Set |
| Feeding and Guiding Device | 1 Set |
| Roll Forming Machine | 1 Set |
| Punching device | 1 Set |
| Hydraulic Cutting Device | 1 Set |
| PLC Control Box | 1 Set |
| Output table | 1 Set |
4. What this Fully automatic steel frame machine benifit you:
1) it can help you do the 45 degree shearing or punching necking and punch holes all fully automatic.
2) The door frame machine just needs one person to operate. Save worker salary.
3) Highly accuracy.
5. Our Service:
1) Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2) After Service
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the machine, we will repair it for free in one year.
Package
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded in one 40’ container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

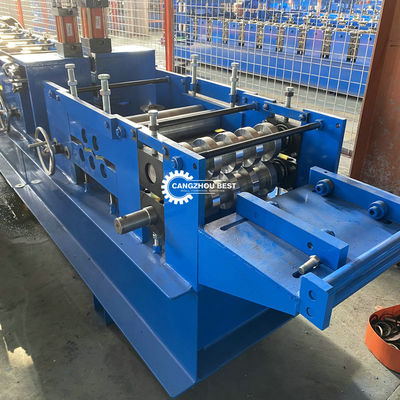

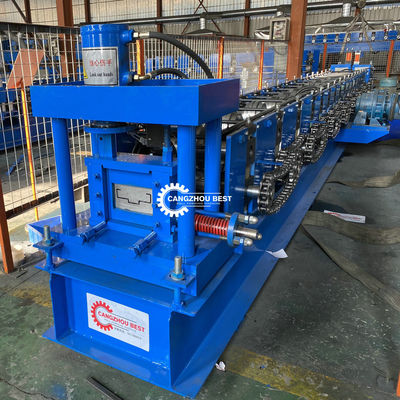

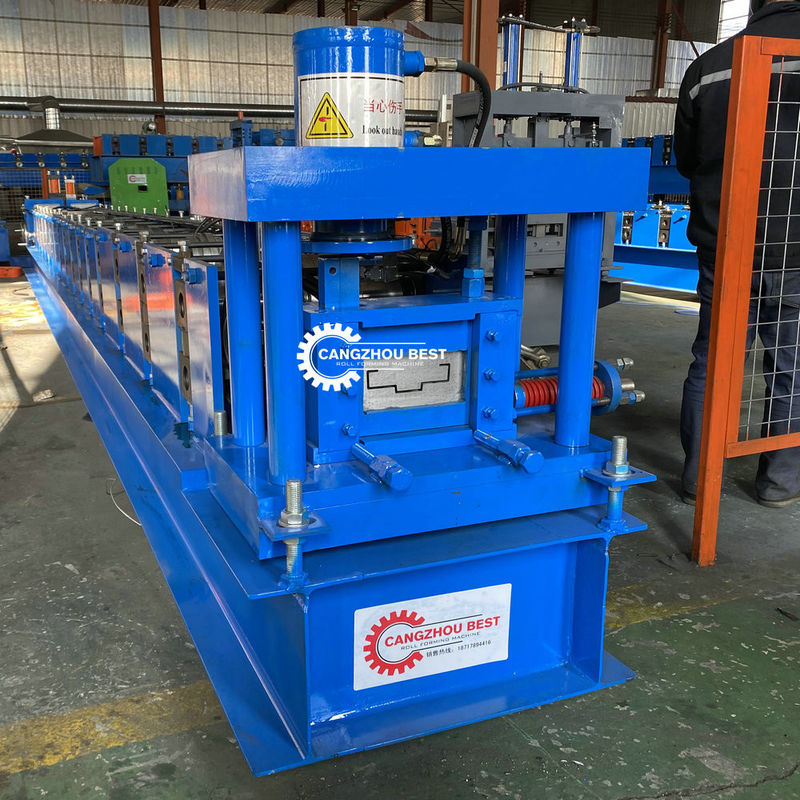

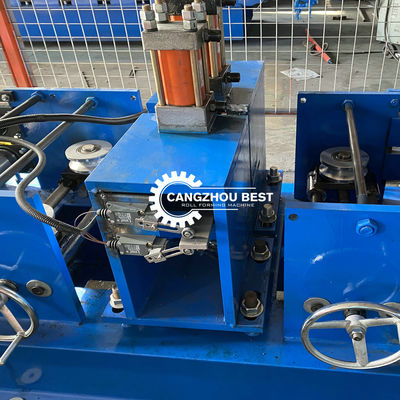

6. Photos for Reference:
