PPGI Sheet 1.5mm Door Frame Roll Forming Machine

Large Image : PPGI Sheet 1.5mm Door Frame Roll Forming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$20000---30000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

PPGI Sheet 1.5mm Door Frame Roll Forming Machine

Description

Material Thickness:

1.5--2mm

Material Of Roller:

Gcr15

Cutting:

Hydraulic Cutting Cr12mov

Working Speed:

12-15Meters/Min

High Light:

PPGI Door Frame Roll Forming Machine

1.5mm Door Frame Roll Forming Machine

15Meters/Min Door Frame Roll Forming Machine

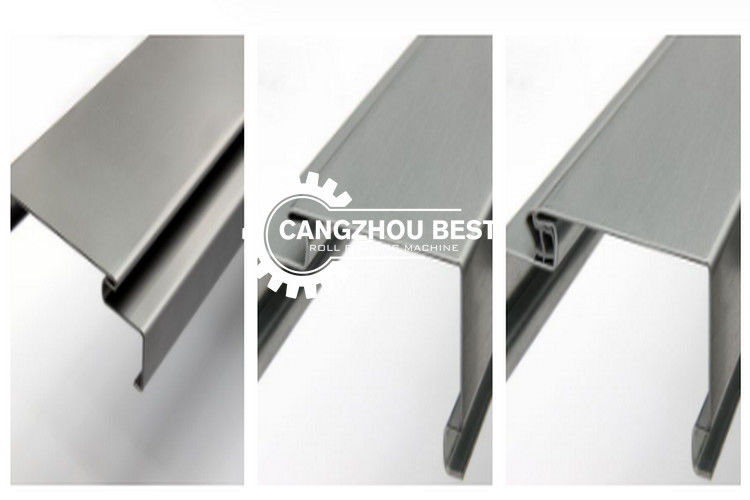

High Performance 0.7 - 1.2mm Door Frame Roll Forming Machine With PLC ControlProduct IntroductionDoor Frame Roll Forming Machine can make various types of metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machine is a complete production line. After roll forming by our production line, we could make a very smooth and beautiful steel door frame without any scratch on the surface. This steel door frame production line is composed of the following elements: De-coiler, feeding & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.Show us your drawing of shutter door
Details of Shutter Door Roll Forming Machine

No.	Item	parameter
1	Machine size	48008001600mm
2	Machine weight	2000kg
3	Machine power	5.5kw
4	Hydraulic engine	2.2kw
5	Roll speed	14M/Min
6	Roll stations	13
7	Roller material	45#Steel
8	Effective width	75mm
9	Feeding width	125mm
10	Voltage	380V 50Hz 3PH/Customized
11	Material thickness	0.7-1.2mm/Customized
12	Control System	Schneider/Delta/Customized

Control	PLC control	China/Taiwan/Japan/Germany brand
	Main motor	Main: 4kw
	Language	English or as your request
Cutting	Cutter	High grade Cr12 steel
	Cutting system	Hydraulic
	Hydraulic pump	Main: 3kw
	Cutter frame	Steel plate welding
