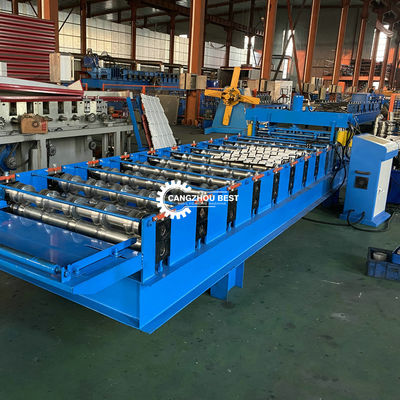

Glossy Steel Profile 0.3-0.8mm Roof Tile Roll Forming Machine

Large Image : Glossy Steel Profile 0.3-0.8mm Roof Tile Roll Forming Machine

Product Details:

Place of Origin:	HEBEI CHAIN
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	CB800

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD12500
Packaging Details:	naked
Delivery Time:	35days
Supply Ability:	15sets/month

Contact Now

Glossy Steel Profile 0.3-0.8mm Roof Tile Roll Forming Machine

Description

Name:	Charcoal Grey Glossy Steel Profile Q Tile&Bricktile Roofing Sheet Roll Forming Machine	Control System:	PLC
Machine Speed:	8-12m/min	Shaft Diameter:	70mm
Shaft Material:	45#steel	Material Thickness:	0.3-0.8mm
Highlight:	profile roof tile roll forming machine , 0.8mm roof tile roll forming machine , 0.3mm roof tile roll forming machine

Charcoal Grey Glossy Steel Profile Q Tile&Bricktile Roofing Sheet Roll Forming Machine

Draft Specifications

1.	Suitable to process:	Color steel
2.	Width of the raw material :	1200
3.	Output width:	1000
4.	Rollers:	11 rows
5.	Power :	4kw+4kw
6.	Thickness of the plate:	0.3-0.8mm
7.	Productivity:	Productivity 12-15m/min or 25-35m/min by hydraulic motor
8.	Diameter of the roller:	72mm
9.	Weight About:	4 T
10.	Voltage:	380V 50Hz 3phase
11.	Received table:	4 meters
12.	Raw material of the cutter :	Cr12
13.	Raw material of the roller:	Bearing steel

Components of line:

1) Manual De-coiler ------------------------------------------------------ 1 set

2) Guiding Device--------------------------------------------------------- 1 set

3) Roll Forming System--------------------------------------------------- 1set

4) Cutting Device---------------------------------------------------------- 1set

5) Hydraulic System------------------------------------------------------- 1 set

6) PLC Control System-----------------------------------------------------1 set

7) Run out table ----------------------------------------------------------- 1 set

Details

Manual decoiler

Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.

Power: None;

Power of the open and closure of segments: Mechanical;

Power of rotation of segment: Pull by forming system;

Number of segment: 4pcs;

Range of segment expansion: 460 ~ 520mm;

Height of center of the mandrel: 0.65m;

Feeding speed: depend on the roll forming machine speed;

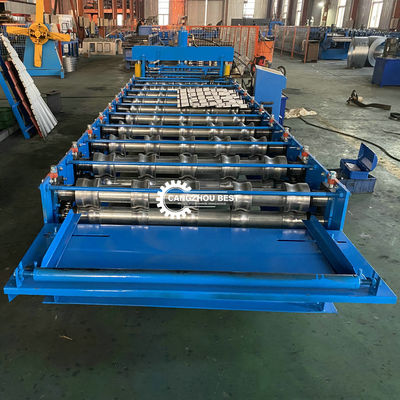

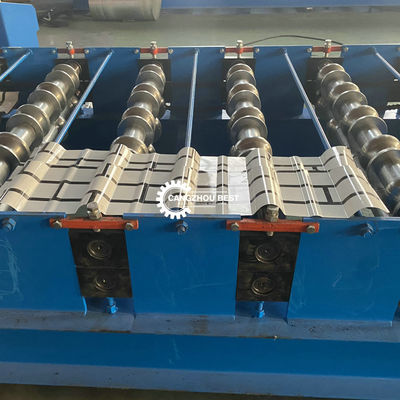

Roll forming system

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;

Shaft: manufactured with 45# high grade steel by CNC machine tools;

Supporting frame: steel wallboard to guide the forming station bearing basement;

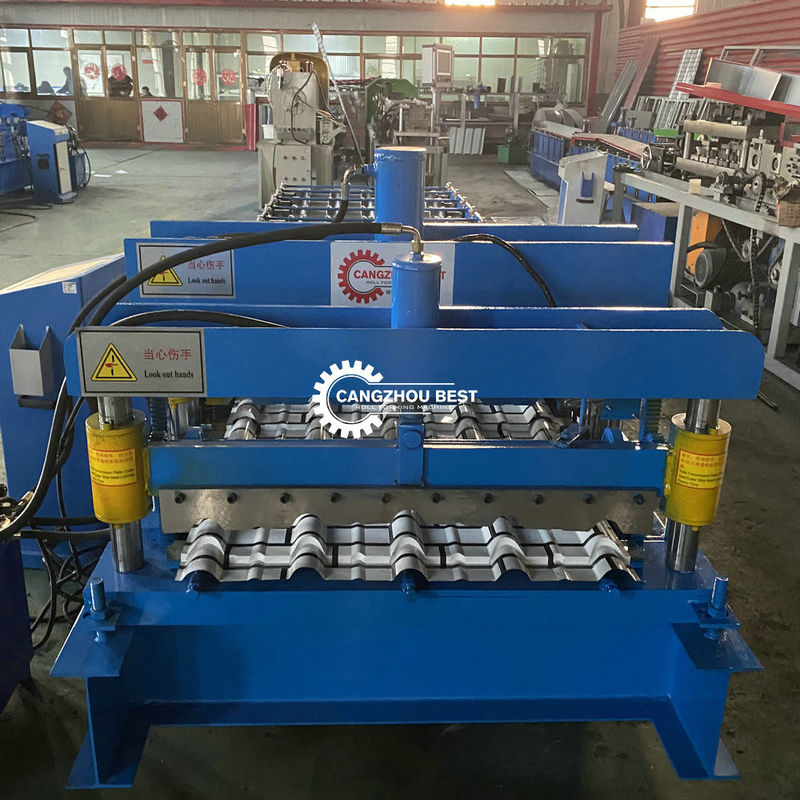

Post cutter

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.

Support table

Feature: finish product collection;

Material: steel frame and nylon shaft;

Table length: 3 m * 2;

Max supporting length: 12m.

Glossy Steel Profile 0.3-0.8mm Roof Tile Roll Forming Machine 0

Glossy Steel Profile 0.3-0.8mm Roof Tile Roll Forming Machine 1
