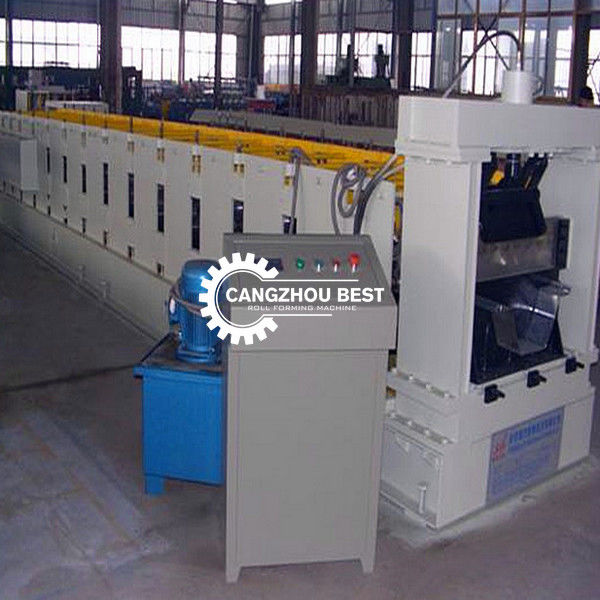

15m/Min Automatic Plc Control K Span Machine Max Span 38 Meters

15m/Min Automatic Plc Control K Span Machine Max Span 38 Meters
15m/Min Automatic Plc Control K Span Machine Max Span 38 Meters

Large Image :  15m/Min Automatic Plc Control K Span Machine Max Span 38 Meters

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$30000---60000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

15m/Min Automatic Plc Control K Span Machine Max Span 38 Meters

Description
Voltage: 380V 50Hz 3phases Condition: New
Weight: 10T After-sales Service Provided: Engineers Available To Service Machinery Overseas
Tile Type: Colored Glaze Steel Use: Roof
High Light:

Plc Control K Span Machine

,

K 38 Meters Span Machine

,

15m/min K Span Machine

Simple introduction of machine

The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding.

It has the ability of strong loading and stable operation when running the machine.

All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

It is very easy to install the equipment and suitable for producing in the factory.

The machine has features of low noise and high efficiency.

Details of main machine

Item Description
Coil width 914mm
Effective width 610mm
working speed 12m—15m/min (not contain cutting)
Roll station 24stations
Material of roller 45#forge steel, polished and coated with chrome
Material of main shaft 45﹟forge steel
Diameter roller Ф76mm
Total power 18.5kw
Forming thickness 0.8mm—1.2mm galvanized steel or metal 195Mpa-345Mpa
Transmission By double line 1.0 inch Chains
Size of machine About 9000 x 1500 x1200 (L x W x H)
Weight About7 000Kgs
Color Blue (it is also can changed depend on customer request)



Arching machine

Item Description
Suited material 0.8-1.6mm color steel coil
Thickness 0.8mm min semi diameter of radian: 16mm
Thickness 1.0mm min semi diameter of radian: 12mm
Thickness 1.2mm min semi diameter of radian: 11mm
Speed of radian 10m/min
Roll station of radian 2 stations
Main power 8.5KW
Working type standing, curving
Control system adopt transducer, Japan Brand
Size of machine (mm) 2000x1800x2000

Introduction of Cutting

Machine adopt hydraulic after cutting

Cutting after forming: Cut the sheet after roll forming to required length

Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Material of blade: CR12with heat treatment

Length measuring: Automatic length measuring

Tolerance of length: 3m+/- 1.5mm

Manual de-coiler

Dimensions: 1700mm*1000mm*800mm

Width of feeding: 1000mm

Capability: 5 Ton

Inter diameter: 550-610mm

Mode of expand &fight: inner expand &fight by manual

Way of feeding: manual

Control panel Panasonic

Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)

Automatic length measurement

Automatic quantity measurement

Computer used to control length & quantity.

Machine will automatically cut to length and stop when required quantity is achieved

Length inaccuracy can be amended easily.

Control panel: Button-type switch and touch screen

Unit of length: millimeter (switched on the control panel)

Hydraulic station and manual out table

Hydraulic station power: 4kw

Hydraulic pressure: 12Mpa

Jointed by 60mm*40mm tube

Size: 1.0m long*0.8mwide*0.6-1mhigh

One out table with two support roller

Electric Seaming Machine: one unit main power: 0.75KW

Technological process
Decoiling—feeding—roll forming----cut to length—product packing manual---arching---seaming

Composition of machine

NO. Name unit Qty
1 Roll forming main machine Set 1
2 Arching machine Set 1
3 Manual decoiler Set 1
4 Control panel Set 1
5 Hydraulic station Set 1
6 Manual out table Set 4
7 Electric Seaming Machine Set 1
8 Spare tools Set 1box

Application

K Span arched roof, k span roofing, large span roof, no-girder roof panel
