Adaptable Top Hat Purlin Batten Roll Forming Machine With Different Size
Roof Truss Purline Making Machinery feature:
1) Take continuous production,there is no need to change the rollers in rough-forming section.
2) steel frame roll forming machine finished with good flatness bending pressure performance is good,
automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy
installation,
3) the product can be used as medium-sized industrial and civil buildings the main force structure, such as
factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and
wall flat load bearing support.
1. Coil Material
| Thickness of sheet: 1.5-3.0mm |
|
Coil width: Customer-made
|
|
Yield strength: 250-350Mpa
|
|
Material: GI, Carbon steel
|
2. Decoiler / Uncoiler
|
Coil width: Max.600mm
|
|
I.D: 508-610MM
|
|
O.D: Max.1500mm
|
3. Pinch feeding & leveling
|
Feeding rollers: 4 rollers
|
|
Leveling roller: 7 Rollers ( upper 3 rollers, bottom 4 rollers )
|
4. Punching
|
Punching type: Hydraulic punching
|
|
Punching die: Cr12Mov, quenched, HRC58-62
|

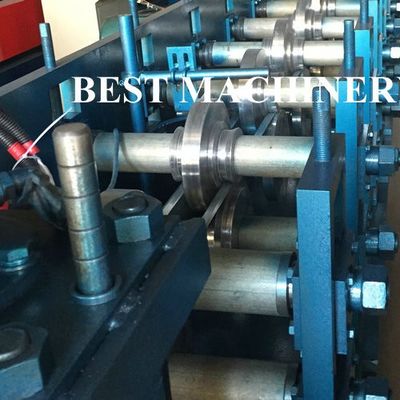

5. Top hat channel forming machine
| Forming stations: 14 stations (Depend on profiles) |
| Roller material: GCr15 steel, HRC58-62 |
| Diameter of shaft: 80mm |
| Shaft material: High grade 45# steel |
| Drive type: Chain transmission |
| Forming speed: 0-15m/min |
| Main power: 3kw |

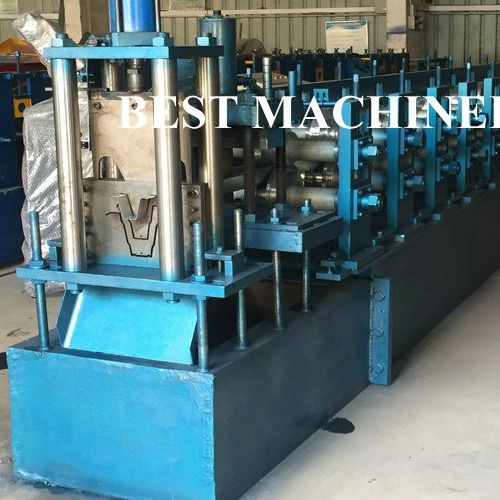

6. Cutting device
| Cutting type: Hydraulic cutting |
| Cutting blade: Cr12Mov, quenched |
| Cutting tolerance: 10m+/-1.5mm |
| Encoder: OMRON Brand |
7. Electrical control
| PLC: PANASONIC Brand or Custom-made |
|
Inverter: YASKAWA Brand or Custom-made
|
| Touch screen: MCGS Brand or Custom-made |
| Operation type: Touch screen & Button |
8. Hydraulic station
| Hydraulic station: Famous Chinese brand |
| Hydraulic power: 7.5KW |
9. Runout table
| Table type: Simple nonpower type |
| Function: To support the finished panels |
NOTE: All technical parameters can be changed according to user s need, and only as a reference.
Machine Features of Top Hat Purlin Roll Forming Machine
The advantages of top hap purlin machine are as follows:
1. Assembly process meets export standards, body frame and sideboard are spray-painted,
other parts are finished through baking/chroming/galvanizing/blackening respectively, then unified assembly. After surface treatment,
not only extend lifetime, but also improve overall appearance.
2. Manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated, surface with mirror treatment (more wearable and rust-free)
3. Rolling shafts are with precision machined. Solid core, 75mm, the material thickness increased to 0.8mm
4. Hydraulic cutting device, make the cutting smooth and neat.
5. Easy operation, low maintenance cost
Our service:
1. Manuals / Videos of machine installation, adjusting,setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ICT engineers &technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a 3-year warranty for the machine,2 years warranty for the electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one for you. The warranty will begin after the machine send out we received the B/L
