Product Details:
|
| Name: | 12-15n/Min Metal Roofing Sheet IBR Roll Forming Making Machine For Iron Sheet | Suitable Material: | Q235 Or Similar |
|---|---|---|---|
| The Shaft: | 70mm | Cutting Blade Material: | Cr12 |
| Screen: | Color Touch Screen | Bottom Frame: | 350H Steel |
| Control System: | PLC | Condition: | New |
| Feeding Width: | 1200mm | Cutting: | Hydraulic |
| High Light: | iron ibr roll forming machine,iron ibr roof sheeting machine,15m/min ibr roll forming machine |
||
12-15n/Min Metal Roofing Sheet IBR Roll Forming Making Machine For Iron Sheet
1. Product profile:
The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
2. Machine List
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
3. Machine details:
| NO.1 Feeding Platform | |
| Frame Structure | Steel Plate Welded |
| Roller Flatting System | let the feeding fluently |
| NO.2 Roll Forming M/C | |
| Installation Dimension | 11500mm*1400mm*1500mm |
| Machine Under Frame | 400H-beam |
| Sidewall Plate Thickness | 20mm |
| Roller Stations | 11Steps |
| Shaft Diameter | 70mm |
| Main Shaft Material | 45# steel with finish turning |
| Roller Material | 45# Forging Steel with Chromium Plate |
| Chromium Plate Thickness | 0.05mm |
| Motor Power | 3kw |
| Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
| Chain Wheel and Cycle Chai | 1 Inch |
| Roll forming Speed | 15/min(adjusted with frequency changer) |
|
NO.4 PLC Control Cabinet The target piece length is adjustable and digit of it can be adjusted |
|
| PLC Control System | Delta |
| Frequency Converte | Delta |
| Voltage | 3phase/380V/50Hz(For confirmation ) |
|
NO.5 Hydraulic Cutting System It adopts hydraulic drive and automatic location system to decide the dimension and cut the target . |
|
| Working Method | Stop to cut then post cut |
| Hydraulic Tank | 1 set |
| Hydraulic Pump Station | 3KW |
| Cutting Length Tolerance | 10m ±1mm |
| Cutting Tool Material | Cr12 with quenched treatment 58°C-62°C |
| NO.6 Exit Rack | |
| Function | Load Steel Purline |
| Length/set | 2 meters |
4. Packing:
a. Need one 20 or 40 ft container, according to your final drawing.
b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is
covered with anti-rust oil.
c. Spare parts in carton box
5. Installation and Training:
| 1 | If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. |
| 2 | Without visiting, we will send you user manual and video to teach you to install and operate. |
| 3 |
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things. |
6. Our Warranty:
1. The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.
2. If the equipment are out of work in the guarantee period, the buyer need our repairman to go to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.
7. Our Service:
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements
Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians. Position the machine in the buyer’s factory.
Prepare necessary electric wiring. Prepare material of trial running. Provide labors for assistance and installation during installation.

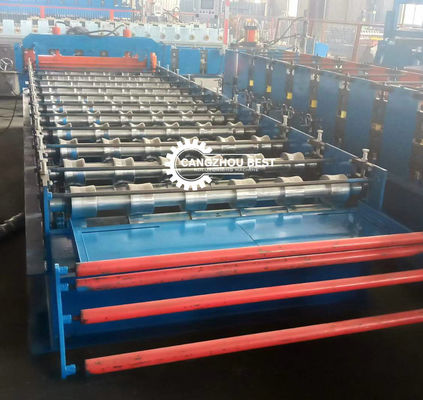

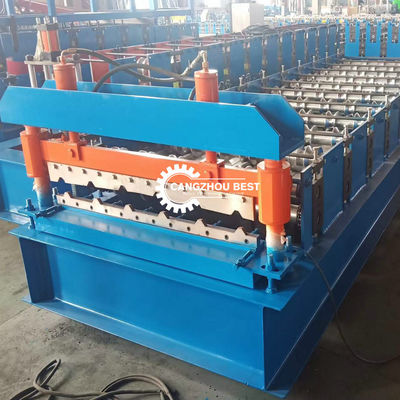

Photos for Reference:
