Product Details:
|
| Name: | Tr4&Tr5 Peru Popular IBR Profile Roofing Sheet Making Roll Forming Machine | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | profile roofing sheet roll forming machine,ibr roofing sheet roll forming machine,GI ibr machine |
||
Tr4&Tr5 Peru Popular IBR Profile Roofing Sheet Making Roll Forming Machine
Components
| 1 | Manual uncoiler | 2 sets |
| 2 | Sheet guiding equipment | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Pressing device | 1 set |

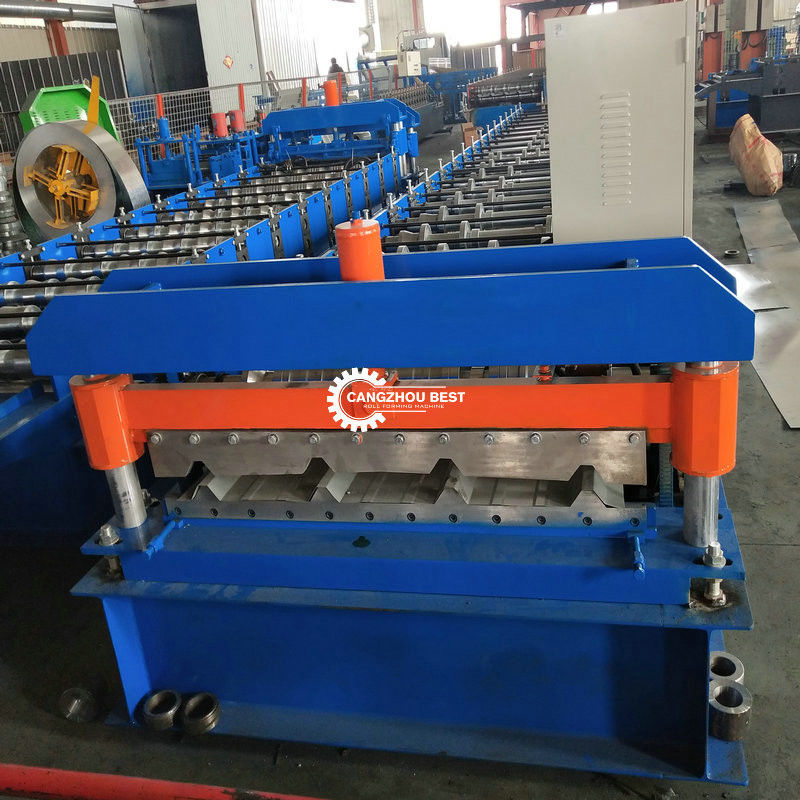

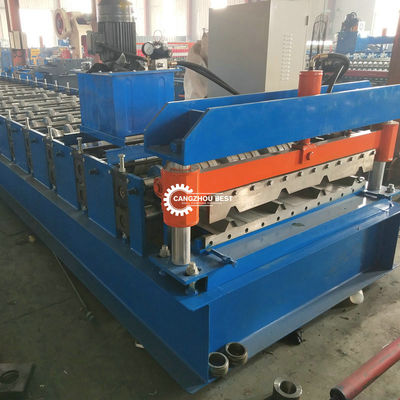

| 5 | Post-cutting equipment | 1 set |
| 6 | Hydraulic station | 1 set |
| 7 | Electric controlling system | 1 set |
| 8 | Support table | 2 pieces |
Technical Parameters:
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1200mm/1220MM | |
| Thickness | 0.2-0.8mm | |
| Yield strength | Q235 | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 22 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 20-25m/min | |
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1300mm*1500mm | |
| Weight(About) | 2.5 tons | |
| Length measurement | Encoder | |
| Control mode | PLC | |
| Operating mode |
Button +Touch screen |
|
Decoiler

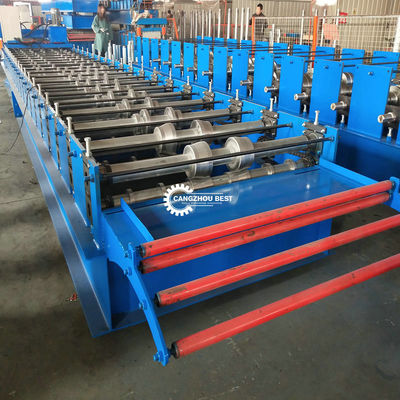

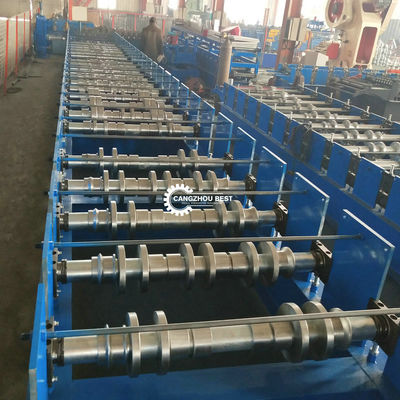

Main roll former
Main motor power: 5.5 KW
Roller material:45# steel with chormed treatment.
Roller shaft material: 45# steel with quenched treatment.
Work speed:8-12 m/min
Length of the part: 7500*1650*1500mm
Structure: Middle plate welded frame structure
Frame: 350 H steel with diagonal bracing
Drive mode: By double chains drive methord
1. PLC controller -- Siemens
2. Transducer -- Yaskawa
3. Encoder -- KOYO
4. Other electronic component- Schneider
After Sales Service
1.Payment Term: 30% deposit by T/T , balance after machine finish .
2.Delivery Time: within 40 days after receipt of deposit .
3.After sale Service: We could send technician to your country for installation . Cost including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Roofing Ibr Sheet Roll Forming Machine For Making Roof Sheets Advantage:
1. Famous Brand, quality is guaranteed.
2. It can be produce Trapezoidal Profile can satisfy the client demand for spend less and Multi-purpose.
3. Full Automatic Computer Control make easy to operation.
4. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat treatment 58℃-62℃ . The product quality is durable and long service life .
