Galvanized Steel Self Lock 8.5kw Door Frame Making Machine

Galvanized Steel Self Lock 8.5kw Door Frame Making Machine
Galvanized Steel Self Lock 8.5kw Door Frame Making Machine
Galvanized Steel Self Lock 8.5kw Door Frame Making Machine Galvanized Steel Self Lock 8.5kw Door Frame Making Machine Galvanized Steel Self Lock 8.5kw Door Frame Making Machine Galvanized Steel Self Lock 8.5kw Door Frame Making Machine Galvanized Steel Self Lock 8.5kw Door Frame Making Machine

Large Image :  Galvanized Steel Self Lock 8.5kw Door Frame Making Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY 140
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Galvanized Steel Self Lock 8.5kw Door Frame Making Machine

Description
Product Name: Galvanized Steel Self Lock Door Frame&Window Profile Roll Forming Machine Life Time: 10years
Warranty: 2years Machine Power: 5.5kw+3kw
Control System: PLC Cutting Type: Hydraulic
High Light:

8.5kw door frame making machine

,

galvanized steel door frame making machine

,

8.5kw steel door frame making machine



Galvanized Steel Self Lock Door Frame&Window Profile Roll Forming Machine



Specifications:



Product name Metal Door Frame Roll Forming /door Production Machine
Voltage 380V/415V/440V
Advantage Easy Operation
Capacity 12-15M/MIN
Color Blue or As customered
Power 3KW/5.5KW
Material PPGI/GI
Suitable for Door frame
MOQ 1SET
Condition New
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 1 Year
Core Components PLC, Bearing, Gear, Pump
Warranty 2 years
After-sales Service Provided Free spare parts, Field installation, commissioning and training, Video technical support, Online support
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location None
Applicable Industries Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location None
Place of Origin Heibei,China
Brand Name SYTT





Working Flow:

Coil car loading--5T hydraulic decoiler--7 rolls leveling –servo-feeder----(No 1)3 sets hinges holes punching---(No 2)lock holes punching--(-No 3)crossbar head cut ---roll forming----Turk head---hydraulic flying shear---4M auto outable



Components



No
Components
Quantity
1
5T hydraulic decoiler
1 set
2
Feeding
1 unit
3
Leveling machine
1 set
4
Hydraulic punching
1 set
5
Roll forming
1 set
6

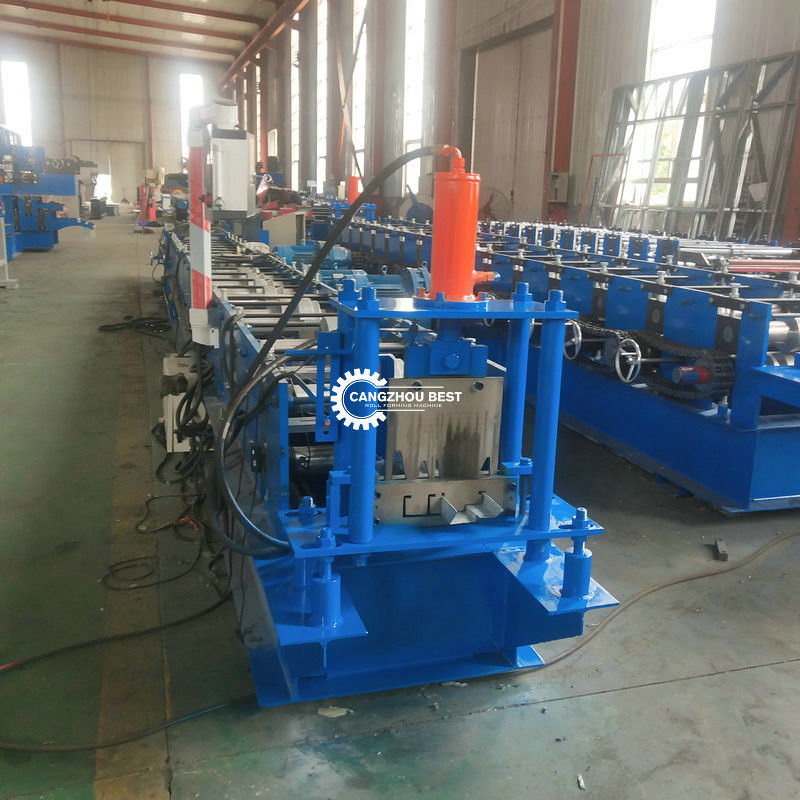

Hydraulic cutting
1 set
7
out table
2 sets
8
Hydraulic station
1 set
9

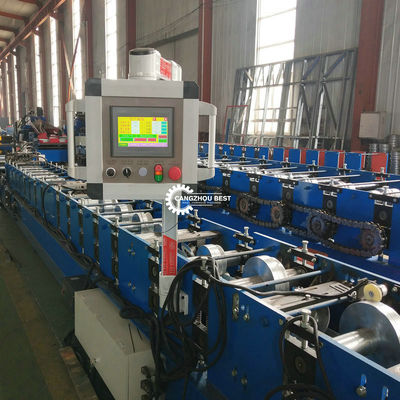

PLC controller
1 set
10
Spare parts and tools
1 box

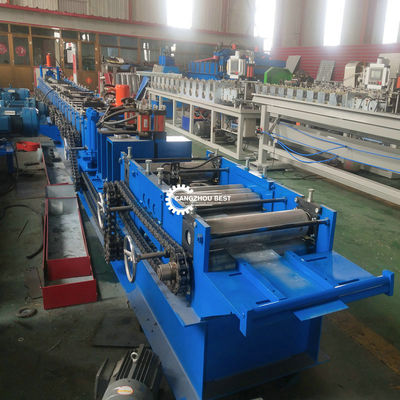

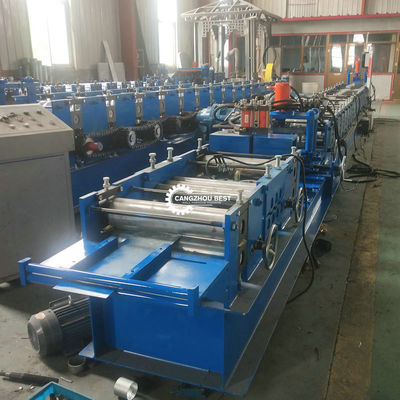

Roll forming Machine

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 8500 1650 1500 mm (L*W*H)
Weight of main part: 6.5 tons
Voltage : 380 V 50 HZ 3 PHASE(As customer’s need)
Roller fixer : Middle plate
Frame : 350 H steel welded
Drive mode: Chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 15 rollers
Main power: 5.5 kw



Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic motor Power: 4 kw
Hydraulic oil: 46# hydraulic oil
Volume: 30 L
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. and two sets of electromagnetism valves.
