|Raw Material:||0.8-1.5mm||NO. Of Roller Stations:||14 Groups|
|Diameter Of Shaft:||70mm||Frame Panel Thickness:||20mm|
|Motor Power:||5.5kw||Driven Type:||1.0＂Chain|

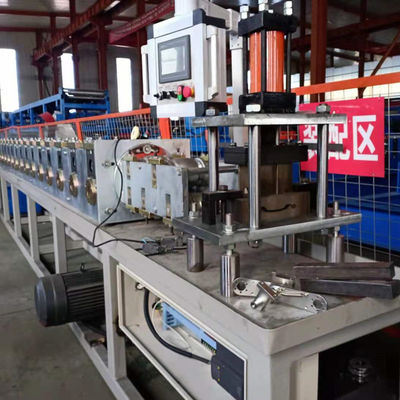

1.5mm metal door frame roll forming machine,
1.5mm steel door frame roll forming machine,
delta metal door frame roll forming machine

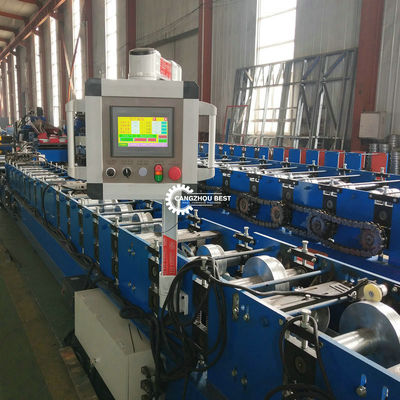

Steel strip roller shutter metal door sheet roll forming making machine
Our rolling shutter machine can produce many kinds of shutter doors. When maximum security and airflow are a must,fenestrated shutter door is needed.It is ideal for parking structures, container docks or any application where security and airflow needed.
Components of line
1. Decoiler 1 unit
2. Roll Forming System 1 unit
3. Cutting Device 1 unit
4. Hydraulic Station 1 unit
5. PLC control system 1 unit
Roller shutter door profile drawing:
|No :||Roll Forming System Main Parameter :|
|1||Length of the main part||about 3000*1000*400|
|2||Weight of main part||3 tons|
|3||Voltage||380V/50HZ3Phase (as customer`s request)|
|4||Roller fixer||guide column|
|5||Frame||steel plate welded/ Memorial arch frame type|
|8||Material of rollers||GCr12MoV|
|9||Material of shafts||45# steel with tempering|
|10||Diameter of shafts||φ40mm|
|11||Number of rollers||10 rollers|
pictures and parts pictures
1.Term of payment: TT, 30%TT should be paid as advanced deposit ,70%TT before shipment .
2.Delivery time: Within 35 working days after received of the deposit
3.After-service:Engineer available to service machinery onerseas
Our product advantage
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used
as the garden like factory, hotel, exhibition, villa,civil construction etc.
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
