1.6mm PLC Steel Door Frame Making Machine With Punching Holes

1.6mm PLC Steel Door Frame Making Machine With Punching Holes
1.6mm PLC Steel Door Frame Making Machine With Punching Holes 1.6mm PLC Steel Door Frame Making Machine With Punching Holes 1.6mm PLC Steel Door Frame Making Machine With Punching Holes

Large Image :  1.6mm PLC Steel Door Frame Making Machine With Punching Holes

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE, BV,SGS
Model Number: YX-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6500-USD8500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets/month

1.6mm PLC Steel Door Frame Making Machine With Punching Holes

Description
Name: 1.6mm Metal Steel Channel Door Frame Roll Forming Machine With Punching Holes Condition: New
Way Of Drive: Chain Roller Material: GCr15
Production Capacity: 10-20m/min Cutting Type: Hydraulic Cutting
Control System: PLC Driven System: Chain
Key Selling Points: Easy To Operate Warranty: 2 Years
High Light:

1.6mm steel door frame making machine

,

1.6mm door frame making machine

,

plc steel door frame making machine

                        1.6mm Metal Steel Channel Door Frame Roll Forming Machine With Punching Holes

1. Product profile

Automatic steel door frame shutter door roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame roll forming machineis a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.



2. Technical Parameter
A. Manual Decoiler

Coil weight (Max):3000kg
Inter diameter: 420mm-510mm
Maximal out diameter:1300mm
Oil cylinder dia:100mm
Coil width (Max.)500mm



B. Roll Forming

The quantity of leveler rolls must be planned according to thickness 0.8mm to 1.5 mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:¢56mm, material is SAE 1045, hardening and tempering
Power: 4KW AC motor
Speed: 0-15m/min
Transmission: by chains , Model:1.2inch



C. Hydraulic Cutting

Cutting after forming: Cut the sheet after roll forming to required length
Hydraulic drive uses the same hydraulic unit with punching
Material of blade:Cr12, 58-62 HRC hardness
Cutting blade: 1 set.
Cutting power by hydraulic, 7.5KW with Storage tank
Working pressure: 10-20Mpa adjustable


D. Control System

Electrical Control PLC Frequency Control System with touch screen
Voltage 380V/3Ph/50Hz(or as your local standard)



E. Output Table

It is simple and used to load finished product
Length: 4m



3. Main components

De-coiler 1 Set
Feeding and Guiding Device 1 Set
Roll Forming Machine 1 Set
Punching device 1 Set
Hydraulic Cutting Device 1 Set
PLC Control Box 1 Set
Output table 1 Set



specification of metal roofing door frame roll forming machine

No. Iron Door Frame Roll Forming Machine
1 Suitable material color steel sheet, galvanized steel sheet, aluminium sheet
2 Material width 1250mm or as your required
3 Material thickness 0.3-0.8 or as your required
4 Working speed 8-12m/min, can be 20m/min
5 Main motor power 5.5kw with cycloidal with reducer
6 Hydraulic pump power 4kw
7 Electrical control system PLC control system with inverter
8 Shaft diameter 70mm
9 Roller station 16 rows, depend on your panel profile drawing
10 Roller high grade 45# steel, hard chrome plating
11 Working time 24 hours
12 workers 1-2 only
13 Cutting head material Cr 12 mould steel with quenched treatment
14 Voltage 380V 3Phase 50Hz or as your required
15 Weight 4.5T
16 Dimension 685mm*15mm*15mm



4. What this Fully automatic steel frame machine benifit you:

1) it can help you do the 45 degree shearing or punching necking and punch holes all fully automatic.

2) The door frame machine just needs one person to operate. Save worker salary.

3) Highly accuracy.



5. Our Service:

equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

2.If the equipment are out of work in the guarantee period, the buyer needs our repairman to come to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment.

Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Lifetime services to every customer.



Package

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded in one 40’ container.

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.

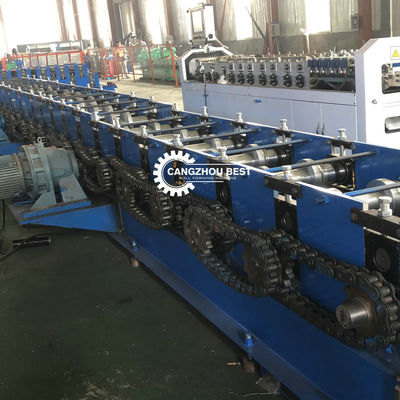

6. Photos for Reference:

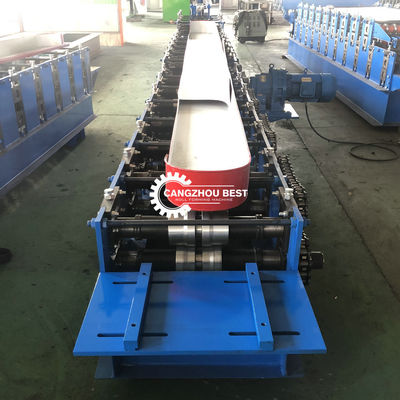

1.6mm PLC Steel Door Frame Making Machine With Punching Holes 0

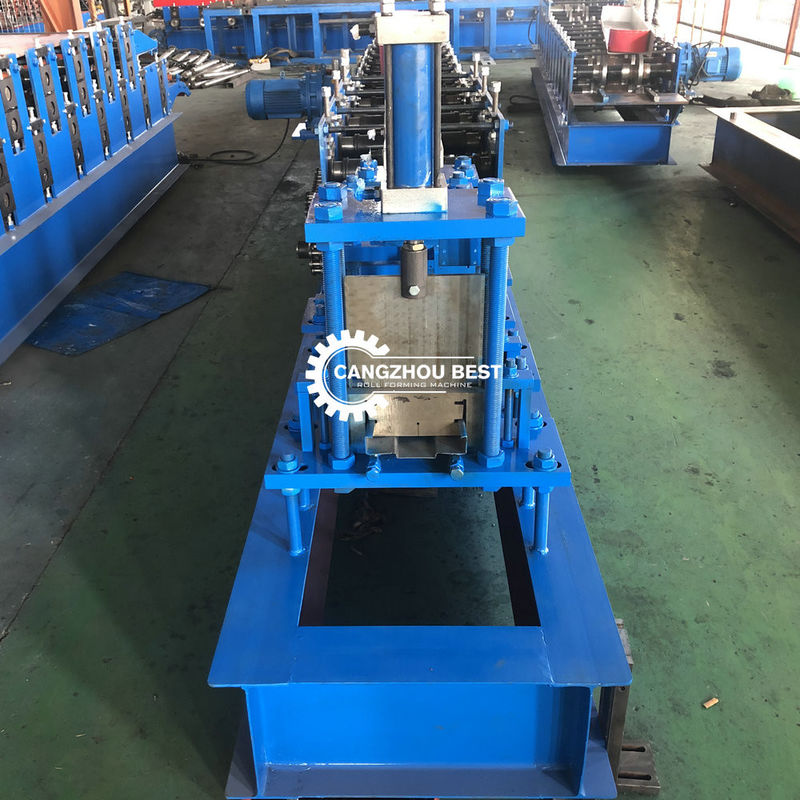

 1.6mm PLC Steel Door Frame Making Machine With Punching Holes 1
