1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine

1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine
1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine 1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine 1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine

Large Image :  1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD2000-USD9500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine

Description
Name: 1.2mm Metal Roller Shutter Slat Garage Door Roll Forming Machine Supplier Warranty: 2 Years
Thickness: 0.7-1.2mm Cutting Type: Hydraulic
Customized: Yes Forming Speed: 8-12m/min
Control System: PLC Side Wall Thickness: 20mm
Hydraulic Power: 3kw Place Of Origin: Hebei,China
High Light:

1.2mm roller shutter door machine

,

gearbox driven shutter roll forming machine

,

rolling shutter door slats roll forming machine

1.2mm Metal Roller Shutter Slat Garage Door Roll Forming Machine Supplier



Brief introduction

This equipment is used for producing roller shutter door. The whole production line consists of a material-putting rack,forming main machine and hydraulic set-length punching-cutting machine. Its shearing involves no waste,not producing shearing waste and saving the cost of material,with high production efficiency.



Metal Garage Steel Roller Shutter Door Profile Roll Forming Making Machine with Embossing Design can make various types metal roller shutter door, reinforced, fire stop doors, etc by roll forming method. The steel roller shutter door roll forming machine is a complete product line. After roll forming by our production line, we could make very smooth and beautiful roller shutter door without any scratch on surface. This roller shutter door production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, hydraulic cutting system, PLC control system, run-out table, etc. The machine will be customized according to your profile drawing.



Technical Parameters

Productivity shutter as the drawing
Material specification Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Thickness 0.7 mm to 1.2mm.
Main motor power3 kw.
Hydraulic station power 3 kw.
Feeding width Depends on the model of profile.
Yield stress 235Mpa(33KSI) ~ 350Mpa
Roll forming Speed 12-15 m/minute.
Cutting Tolerance +/-2.5mm(length5000mm); +/-3.0mm(5000mm<length10000mm)
Manual Uncoiler Max. Capacity: 3000kgs
Coil inner diameter 508mm/610mm.
Voltage 380v/50hz/3 phase
Numbers of stands 12 stands/stations/pairs for each roll forming system
Material of Main Equipment
Roller Material High grade No.45 forged steel, coated with hard chrome.
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.
Electric Elements

PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements are from famous suppliers of China

Cutter blades Cr12 mould steel with quenched treatment.

Our service:



Best service:

1.We have professional team to make different kinds of roll forming machines for our customers,
from designing, processing,assembling, debugging, delivery.
2.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country.

3.You can send your men to our factory. we will teach them how to operate the machine without training charges.

4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.

5.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.



Working Flow:

Manual decoiling----feeding and guiding----roll forming----punching----cut to length----run out table

1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine 0

FAQ:

Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.

Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,

replace the hydraulic oil every 1-2 years.

Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,

we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.

if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.

we have rich experience in transport.

Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.

Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.





Need my help now?I am always here for you

Please contact us now!

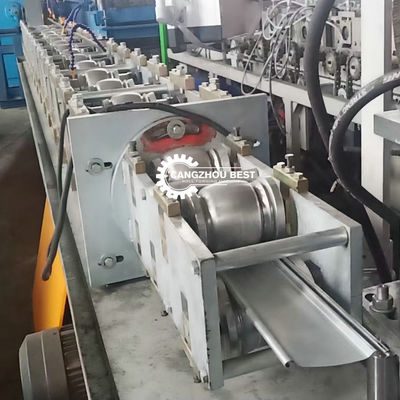

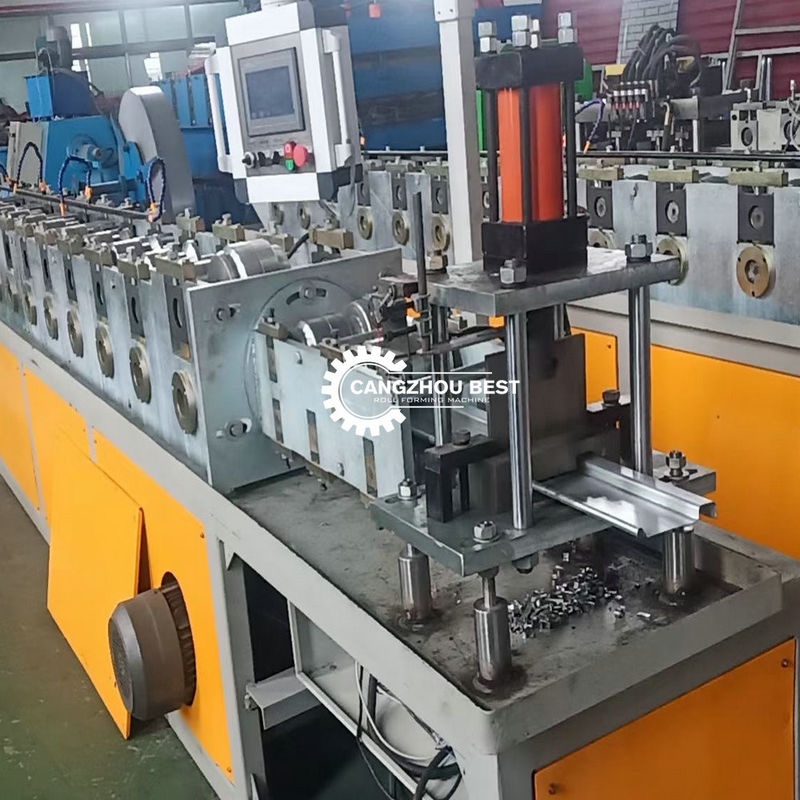

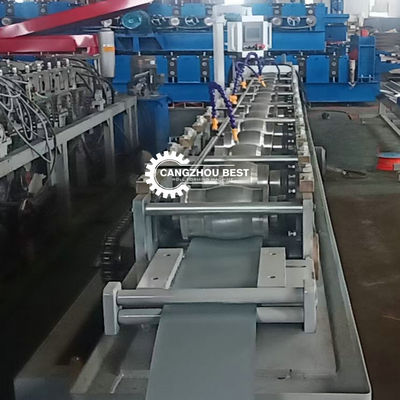

Machine photos:



1.2mm Metal Rolling Shutter Door Slats Roll Forming Machine 1
