Plc Speed 4-6m/Min Roof Tile Roll Forming Machine

Plc Speed 4-6m/Min Roof Tile Roll Forming Machine
Plc Speed 4-6m/Min Roof Tile Roll Forming Machine Plc Speed 4-6m/Min Roof Tile Roll Forming Machine Plc Speed 4-6m/Min Roof Tile Roll Forming Machine Plc Speed 4-6m/Min Roof Tile Roll Forming Machine

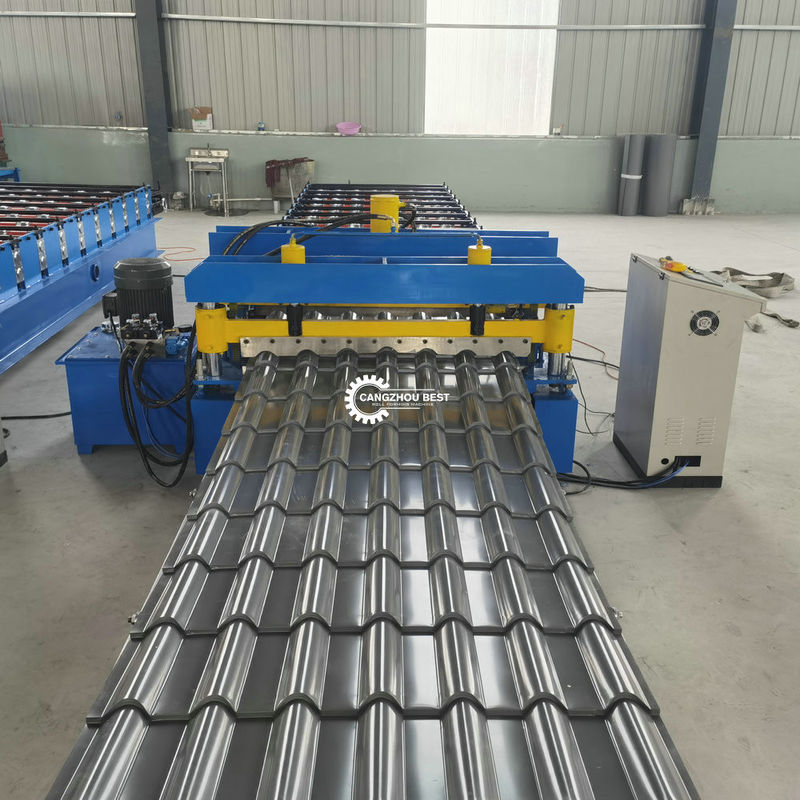

Large Image :  Plc Speed 4-6m/Min Roof Tile Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY980
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Plc Speed 4-6m/Min Roof Tile Roll Forming Machine

Description
Product Name: Steel Profile Color Steel/Aluminum Metcopo Tile Sheet Roll Forming Machine Warranty: 2 Years
Machine Speed: 4-6m/min Material Thickness: 0.3-0.8mm
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic
High Light:

gearbox driven metal roll forming machine

,

4m/min roof tile roll forming machine

,

6m/min roof tile roll forming machine



Steel Profile Color Steel/Aluminum Metcopo Tile Sheet Roll Forming Machine



Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'

requests.



Draft parameter



1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 5 ton passive decoiler
6. Forming Speed: 4-6m/min
7. Roller Groups: 16 stations
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw

12. Hydraulic power: 5.5Kw



Working flow



Decoiler----feeding----roll forming----pressing----cut to length----output table

Components



No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

Set

1

4

Hydraulic pump station

set

1

5

post cut

set

1

6

electric motor

set

1

7

output table

set

1



Roll Forming Machine Specifications



Decoiler

1.Features:
Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
2.Power: None
3. Power of the open and closure of segments: Mechanical
4.Power of rotation of segment: Pull by forming system
5.Number of segment: 4
6.Range of segment expansion: 480 ~ 520mm
7.Height of center of the mandrel: 0.65m
8.Feeding speed with push: 0~30m/min
9.Approximate Size: 1.5 m * 1.1m *1.2 m
10.Speed control: By mechanical brake
11.Methods of operation: Manual.

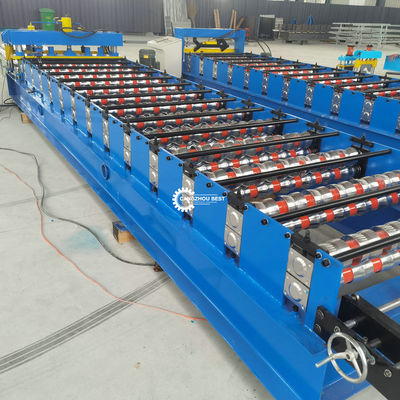

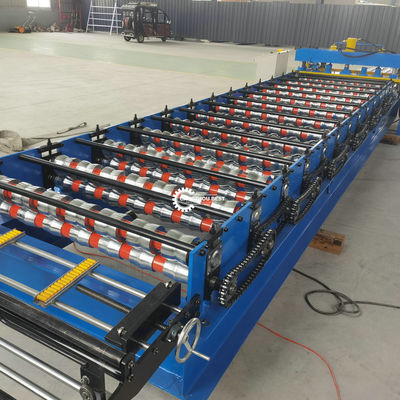

Roll Forming Machine

1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2.Shaft:70mm manufactured with 45# high grade steel by CNC machine tools
3. Supporting frame: steel wallboard to guide the forming station bearing basement
4.The finished products will change if using different material and thickness
5.Driving of machine:by one inch chain

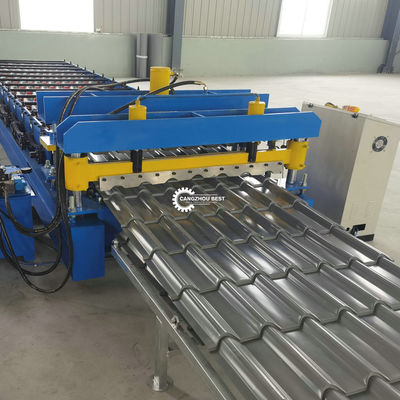

Hydraulic cutting

1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
2.Power supply: hydraulic station
3.Frame: welding steel frame
4.Stroke switch: non-contact photoelectric switch
5.Cutting before forming: cut the sheet after roll forming to required length
6.Length measuring: automatic length measuring



Control system:

The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line.
1.Control the cutting length automatically
2.Automatic Length measurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:380V, 3 Phase 60Hz (As per buyer`s request)
