762mm Steel Corrugated Metal Sheet Roof Roll Forming Making Machine
1. Advantage:
Overseas engineers can perform installation, instruction, commissioning, and maintenance.
The machine is controlled by a computer controller program, which can be set in advance to cut the
meter, length, quantity and punching position. The program will perform cut-to-length cutting by itself, saving manpower! With
multi-languages, it is convenient for users in various countries, simple and easy to operate, and can input multiple sets of
different work data, saving time, labor and labor! , High throughput!
The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
2. Technical Parameters:
Main Parameters:
| 1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 |
Width of the feeding material |
914/925mm |
| 3 |
Roller station |
13 rows |
| 4 |
Thickness of feeding material |
0.3-0.8mm |
| 5 |
Productivity |
8-12m/min |
| 6 |
Rollers' material |
45# steel |
| 7 |
Diameter of shaft |
75mm |
| 8 |
Voltage |
380V 50Hz 3phases |
| 9 |
Wall thickness of main forming machine |
14mm steel plate |
| 10 |
Main forming machine body |
300 mm H steel |
| 11 |
Motor power |
3+3kw |
| 12 |
Size |
7500*1500*1400mm |
| 13 |
Weight |
About 4 T |
| 14 |
Custom |
According to customer's requirements |
3. Machine Details:

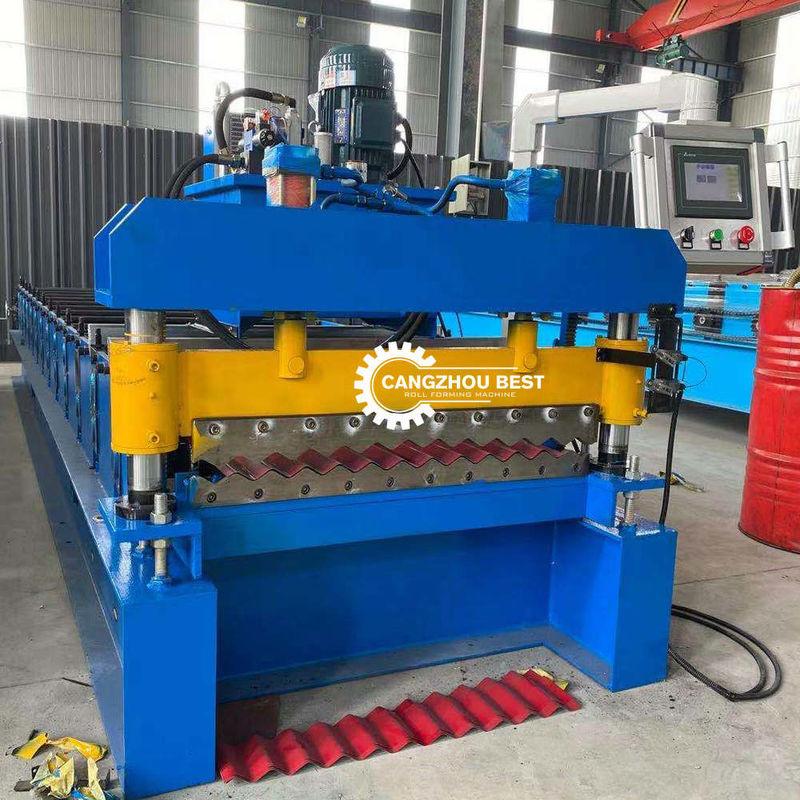

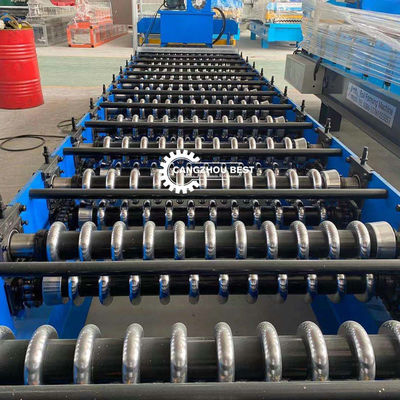

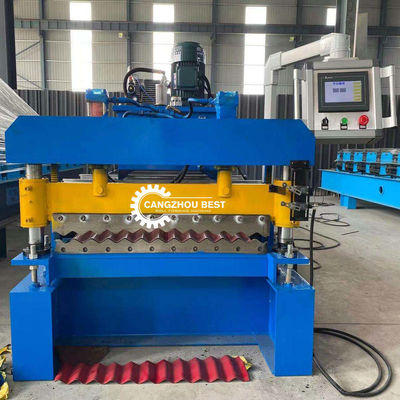

Fully automatic tile Roofing Roll Forming Machine is composed of feeding, forming and cutting after forming. The products produced by tile press have smooth and beautiful appearance, uniform lacquer pattern, high strength and durability. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, locomotive garages, hangars, gymnasiums, exhibition halls, cinemas and theatres. Its components include: whole machine, PLC computer control system, hydraulic pump station system, automatic post-shearing system.
4. Guarantee:
| 1 |
we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket, visa, accommodations, food and transportation in your country. |
| 2 |
You can send your men to our factory. we will teach them how to operate the machine without training charges. |
| 3 |
Actually, there's another cheap and easy way to choose. Every machine leaves our factory with one book of operation manual. You can read through the manual first, and get familiar with the machine. Then we can get a video call, and teach you on-line on how to operate the machine. |
| 4 |
Apart from the above training course, we also provide 18 MONTH warranty for all the easily broken part of the machine for free and whole-life technical service support. |
5. Packing:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
Our service:
Before ordering:
We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
Then your product is hot sale roof tile .
We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.
We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can order the material coil with lowest price.
During production:
We can send the pictures to show you the schedule of your roll forming machines.
We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion
After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and you only need to pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine.
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available!
The real data, the most professional foreign trade team, your best trustable partner
We can produce according to your requirements.
