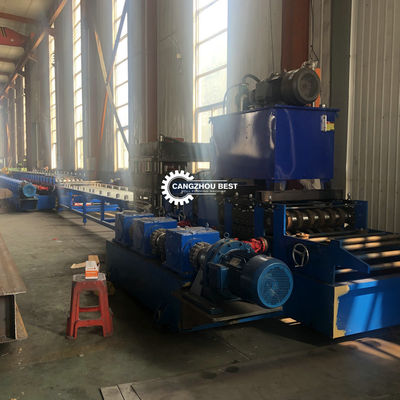

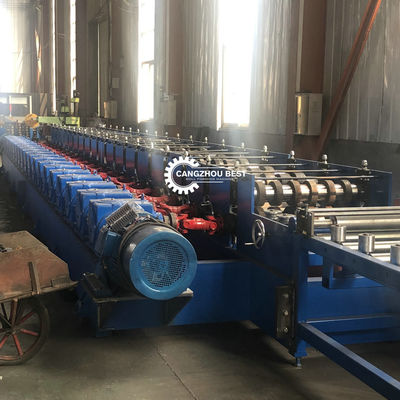

W Beam 1mm Steel Roll Forming Machine Crash Barrier Board Making For Highway Road

W Beam 1mm Steel Roll Forming Machine Crash Barrier Board Making For Highway Road
W Beam 1mm Steel Roll Forming Machine Crash Barrier Board Making For Highway Road W Beam 1mm Steel Roll Forming Machine Crash Barrier Board Making For Highway Road

Large Image :  W Beam 1mm Steel Roll Forming Machine Crash Barrier Board Making For Highway Road

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD12500-USD42500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

W Beam 1mm Steel Roll Forming Machine Crash Barrier Board Making For Highway Road

Description
Name: W Beam Steel Crash Barrier Board Making Roll Forming Machine For Highway Road Rolling Thickness: 1-4mm
Condition: New Warranty: 2 Years
Voltage: 380V 50Hz 3phases Control System: PLC Control
Place Of Origin: Hebei,China Color: As Your Request
Speed: 12-15m/min Cutting Blade Material: CR12
High Light:

1mm steel roll forming machine

,

highway road steel roll forming machine

,

plc w beam roll forming machine

W Beam Steel Crash Barrier Board Making Roll Forming Machine For Highway Road





1. Main parameters of highway guardrail machine

Main parameters of highway guardrail machine
  Suitable to process Color steel plate, galvanized sheet,aluminum coils and etc.
2 Effective width 310mm
3 Roller station

17 rows forming

7 roller leveling

4 Thickness of feeding material 2.0-2.5 mm
5 Productivity 8-12m/min
6 Rollers' material 45# forging steel
7 Diameter of shaft 100mm
8 Cutting tool material: GCr12 with quenched treatment 60-62°C
9 Weight About 6.9T
10 Size 13.5*1.85*1.6mm
11 Voltage 380V 50Hz 3phases
12 Wall thickness of main forming machine 14mm steel plate
13 Main forming machine body 300 mm H steel
14 Total power 22+11 kw
15 Leveling power 2.2 kw



2. Processing technique and deployment

Processes: 10T Hydraulic de-coilerLeveling device--Punching station--Roll forming machine—PLC system—Hydraulic system-CutterOutput table



3. Technical Specification

(1)Hydraulic de-coiler: max.capacity: 10T;

(2) Hydraulic System: Power of the oil pump: 11kw Hydraulic oil :40#

(3)Computer control cabinet :

It adopts Delta PLC to control(PLC brand can be changed as your requirement).

The target piece length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.

Reducer is Xingxing Cycloid which works stably and no noise

(4)Counter: One counter gauges length, pulses, and decides length

(5) Output table: It used to load the forming plate



Introduction

This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.



Features:

1. This production line can be automatically run by inputting some data (like products length and batches) to the PLC control system.
2. Very strong base frame is configured to avoid vibration.
3. All the rollers have been processed by CNC lathe and polished on the surface to guarantee the accuracy.
4. The rollers have gone through hardened treatment to guarantee long lifespan.
5. We can also design the crash barrier roll forming machine according to customer’s requirement.



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.



Machine maintenance
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily.

1) The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2) Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3) Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4) If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid rain and damp, especially electrical controlling box
5) Cutting device should add lube to the places where need lube to the request
6) Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity shortage
7) Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.


Inquiry me get more details and video!
