300mm Automatic Changeable Size C Purlin Roll Forming Machine Profile
1. Profile drawing for reference(C&Z purling interchangeable)
2. Machine parameters:
Main features of interchange cz cold rolled purlins machine
The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1. Produce different purlin size without changing rollers or spacers.
2. No need changing cutter for different size.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. Optional Punch hole at any position of purlin web side and flange side
Detailed Images of interchange cz cold rolled purlins machine
1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
2) interchange cz cold rolled purlins machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

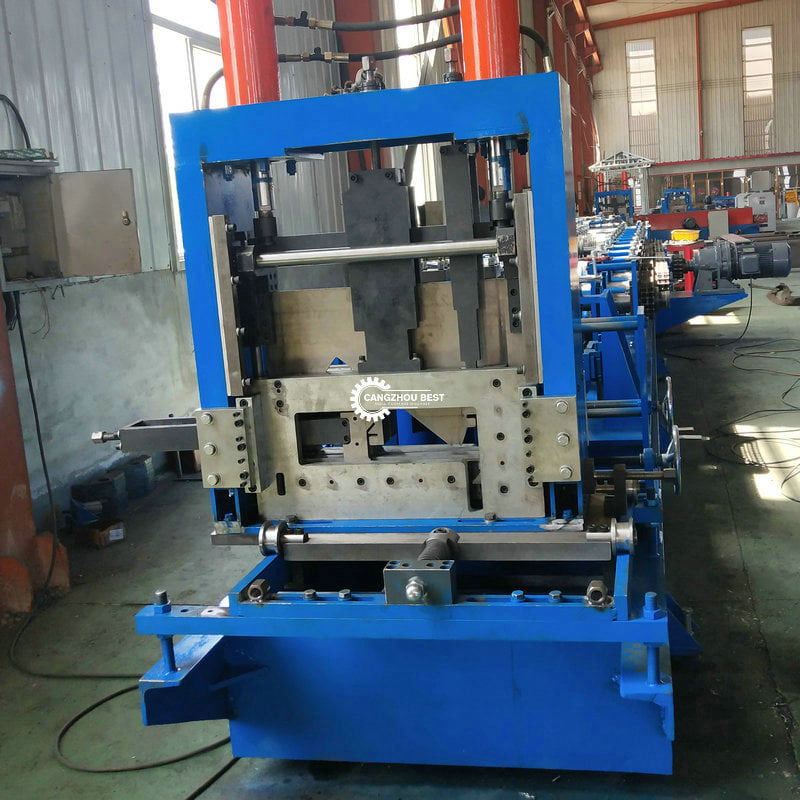

3) interchange cz cold rolled purlins machine post cutter
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
4)interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
5)interchange cz cold rolled purlins machine exit rack
Un-powered,two unit (3m*2)
Other detailes of interchange c cold rolled purlins machine
Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW , Frequency speed control. Forming speed approx.18m/min
PLC Control System Omron (Touch screen: xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
There are 3 plans for you.you can choose the best plan.
a.30% T/T deposit in advance and the balance of 70% is paid after confirmation and before shipping.
b.Irrevocable LC at sight.
c.30% TT deposit,and balance DA 60 days for part of countries with extra charges.Please contact me for details if you need this plan.
1.With 45 working days after received deposit ,we will finish the machine.
2.We will take photos and videos for your confirmation.
3.You need send balance and make delivery within 1 month.After you send the balance,you can book container.
4.Once container is confirmed,we load the container within 5 days.
1.Best price and the best quality!
And we have a very professional sales team which can offer you the most professional service.
2.High quality is our promise.
we have more than 20 years experience producing feed processing machines in China.
Therefore that is why our products popular in European American African and Asian, and have a very hot market. Our feed processing machines mainly including hammer mill,mixer,and pellet mill machine depend on competitive price, high quality and superior service!
3.On time delivery. As direct manufacturer supplier, we can delivery in on time to make sure to save you much time and energy.
4.Excellent after sales service. We have our own after sales service team in office, so that we can solve all the problem you met in time.
5.20 years exporting experience. We had exported to Pakistan, Russia, America, Australia, Uzbekistan, about 30 countries.
6. Efficient work----your inquiry and question will be dealt with in 24 hours.
If you have interest in our products, pls kindly write me email or call me directly.
We will offer you best price and service in 24 hours.
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and have skilled technicians available across the world.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology to improve our machines constantly. We have experts from domestic-leading machinery corporation as well as sals elites.
Wokers, traders, designed as a family to insure best interest of our clints.
3), Q: How does your factory do regarding quality control?
A: Quality is priority. OUR people always attach great importance to quality control during the whole process. Every product will be fully assembled and carefully tested before packed.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Please inquiry me, get more details!!!
5. Product feature and usage:
The products of C or Z shape purline forming machine have excellent anti-bending property and are
easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale
construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on

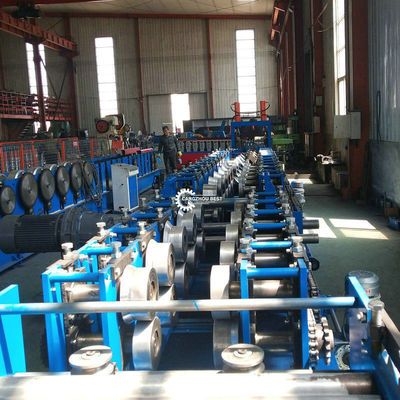

6. Machine photos:
