Color Steel Aluminum Metal 0.3mm Panel Roll Forming Machine Roof Tile Making

Description
Name: Color Steel Aluminum Metal Roof Tile Making Panel Roll Forming Machine Voltage: 380V, 380V 50Hz 3phases
Control SystemControl System: PLC Roller Material: 45#steel
Shaft Diameter: 70mm Production Capacity: About 4m/min
Driven Type: Chain Sheet Thickness: 0.3-0.8mm
Power: 7.5kw Cutting Blade: Cr112
High Light:

chain driven panel roll forming machine

,

0.3mm panel roll forming machine

,

chain driven metal roll forming machine

IBR Metal Glazed Roof Tile Roll Making Forming Machine With High Quality



1. Working Flow:

Decoiler--feeding materil--roll formng--pressing and cutting--output table



2. Parameters:

No.
Item
Description
1
Coil width
according the profile
2
Rolling speed
0-35m/min
3
Rolling thickness
0.3-08mm
4
Control system
PLC (Panasonic) as list in the note
5
Un Coiler
10T hydraulic de-coiler with coil car
6
Roller Stations
22stations
7
Roller Material
ASTM1045 chrome plated surface with chrome
8
Shaft Material and DIA
¢85mm material:45# with quenching and tempering
9
Post track cutting
The main machine won't stop when cutting, 2.9kw servo motor
10
Maim Motor Power
15kw
11
Hydraulic Station Power
5.5kw with storage tank and air cooling system
12
Hydraulic Pressure
12-16Mpa adjustable
13
Material Of Cutting
CR12with heat treatment
14
Structure Of The Stations
Iron cast
15
Tolerance
3m+-1.5mm
16
Electric Source
380V, 50HZ,3 phase
According to customer's require
17
Way Of Drive
By gear box


3. Technology Index

Cutting distance≥150mm

Temperature of the working environment of the production line: 0—40 Celsius

Humidity of the working environment of the production line: 5-85 (No dew)

Working Voltage: Three Phase Voltages 380V (AC)

Working Environment: No corrosive gases, less dust.

Error of Cutting Distance of Glazed Tile: ±1-2mm



The main description

Roll Forming Machine: CLASIC

Control System: PLC



Un-coiler:

UnCoiler : 5 ton manual

Decoiling Holder: 2200mm×1620mm×1700mm

inside diameter of the uncoiler: 510-610mm



Roll forming machine:

Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm

Color Steel Sheet width: 1220mm

Roller Stations: about 16 stations

Way Of Drive: 1.2 inch single chain

The speed of the roll forming machine: 5-6m/min

Roller Material: 45# forge steel, coated with chrome

Shaft Material and DIA: 76mm, material is 45# forge steel

Maim Motor Power: 7.5kw

Error of Cutting Distance of Glazed Tile: ±1-2mm

Roll Forming Machine: 8700mm×1622mm×1400mm

Roll Forming Machine: 8000kg



Press parts

Type Hydraulic

Hydraulic Station Power: 5.5kw

Size of the press parts: 2000*1800*1500mm



Cutting parts

Type Hydraulic

Max. cutting thickness: 1mm

Hydraulic Station Power: 5.5kw

Automatic Hydraulic Cutting Machine: 400mm×1500mm×1100mm

Material Of Cutting: Cr12Mov quenching 58-62℃

Automatic Hydraulic Cutting Machine: 400kg



Passive Out table

Size of the out table: 2000*1350*1000mm, two pieces



4. Our service:

Terms of payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.

Delivery: 10 days after receipt of advance payment.

Service: we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 200 USD/day.

Warranty: 12 months limited warranty

During warranty: parts are free but buyer pay the shipping fee.



5. Summary

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 17+ years experience;

3). We achieves that the machine capacity is double of the competitors;

4). The machine working speed can be 60m/min;

5). Very easy to install and operate the roll forming machine.



6. Machine photos:

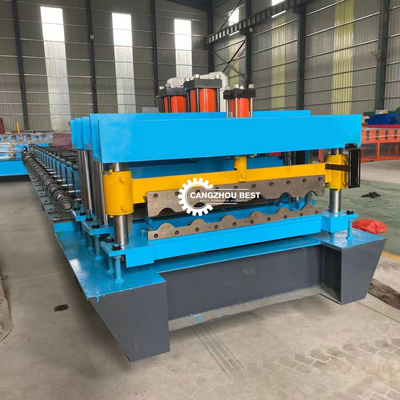

Color Steel Aluminum Metal 0.3mm Panel Roll Forming Machine Roof Tile Making 0

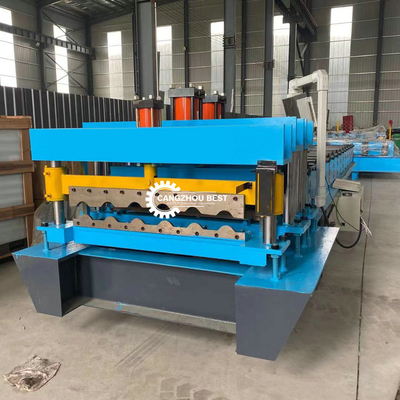

Color Steel Aluminum Metal 0.3mm Panel Roll Forming Machine Roof Tile Making 1
