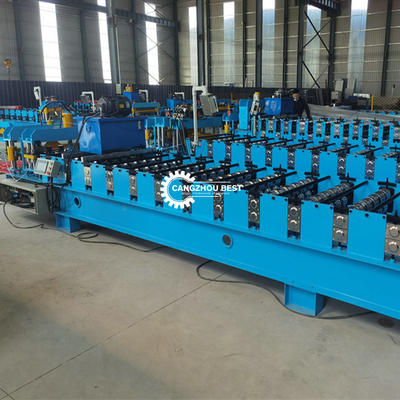

0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine

0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine
0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine 0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine 0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine

Large Image :  0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-800/1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine

Description
Name: Aluminium Step Tile Roofing Sheets Roll Forming Machine Voltage: 380V, 380V 50Hz 3phases
Application: Application Roller Material: 45#steel
Shaft Diameter: 70mm Place Of Origin: Hebei,China
Frame: Welding With 350 H Steel Sheet Thickness: 0.3-0.8mm
Power: 7.5kw Cutting Blade: Cr112
High Light:

0.8mm roofing tile roll forming machine

,

aluminium step tile roll forming machine

,

380v roofing tile roll forming machine

0.8mm Aluminium Step Tile Roofing Sheets Roll Forming Machine



1. Working Flow:

Decoiler--feeding materil--roll formng--pressing and cutting--output table



2. Main Features

[High Efficiency] 5m per minute.
[Long Life Machine]Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
[High Precision]Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
[Automatic & Easy Operate]Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
[Excellent Services]Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.



3. Technical Parameters

Technical Parameters (some depend on the final design)
1 Style glazed roof tile roll forming machine
2 Machine dimension 7500*1600*1650mm
3 Total wight 5800kgs
4 Forming steps Up layer :11rows Down layer :13rows
5 Forming speed Glazed design :1.5-3.0m/min Wave design:10-15m/min
6 Hydraulic station power(Kw) 4kw
7 Diameter of shaft 70mm
8 Hydraulic pressure 18-20 MPa
9 Electric condition(Voltage ) 380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ )
10 Suitable to process Color steel plate(G330 or G350 ) galvanized steel coil
11 Manual uncoiler max capacity 5000kgs
12 Control system PLC
13 Raw material thickness 0.3-0.8mm
14 Effective width 800mm
15 Material width 1000mm
16 Main motor 5.5Kw
17 Material of the cutting blade Cr 12 quenched treatment 58℃-62℃
18

Main Shaft Material



45# steel with finish turning
19 Roller materials 45# Forging Steel with Chromium Plate
20 Machine Under Frame 400 H beams and side wall 18mm



4.Components of glazed roof tile roll forming machine

1 Manual uncoiler 1 set
2 Sheet guiding equipment 1 set
3 Roll forming system 1 set
4 Pressing device 1 set
5 Post-cutting equipment 1 set
6 Hydraulic station 1 set
7 Electric controlling system 1 set
8 Support table 2 pieces



5. Our service:

1. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

2. after Service
A. One year guarantee for whole machine.
B. 24 hours technical support by email or phone call.
C. If there is any problem found of the machine, we will repair it for free in one year.



6. After sales service:

1) we can produce the special machine,send your drawing to us,we can design for you

2) if you buy our products,we also can help you to purchase the material, like color roll, the price is lower than you buy by yourself.

3) we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4) engineers available to service machinery overseas.

5) if you come to visit our factory, we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!

The real data, the most professinal foreign trade team, your best trustable partner.



Machine photos:

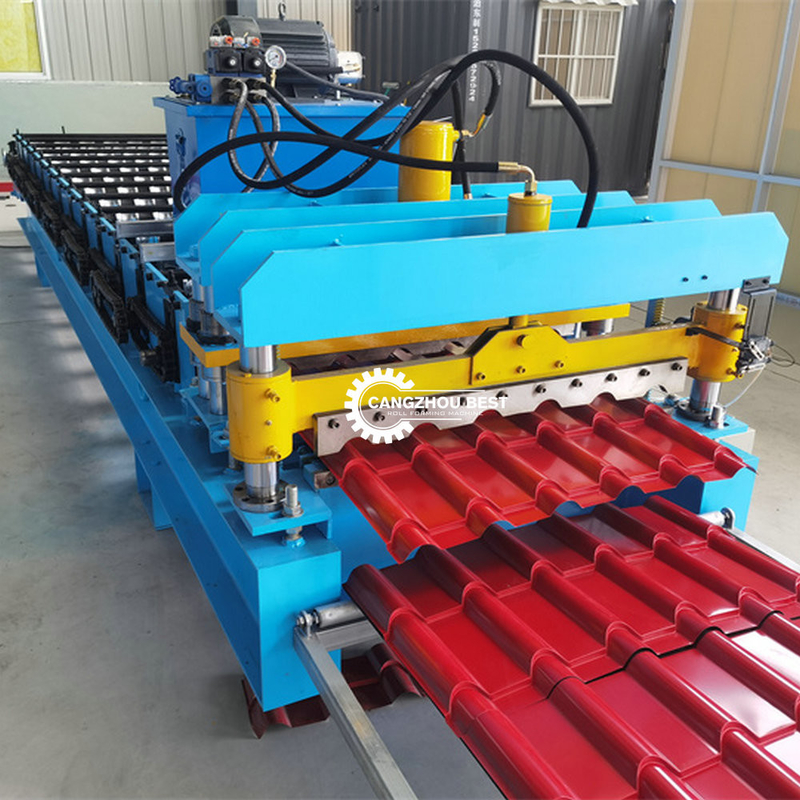

0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine 0

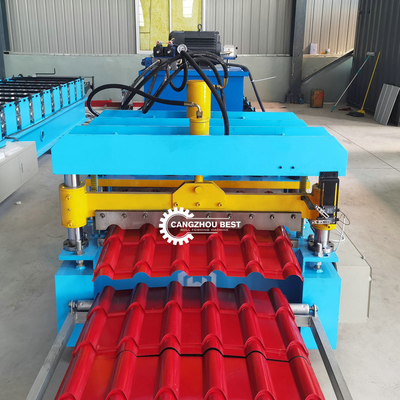

0.8mm Aluminium Step 380v Roofing Tile Roll Forming Machine 1
