6mm Galvanized CZ Purlin Roll Forming Machine Automatic Changeable
1. Profile drawing for reference(C&Z purling interchangeable)
2. Machine parameters:
Purlin Roll Forming Machine can form hot/cold rolled steel strip and get various specification purlins: C Purlin, Z Purlin, M Purlin, U Purlin.The forming speed can reach to 30m/min .It is fully automatic cold forming line for steel structure industry.
Inline flexible punching system integrated.
C and Z Profile changeovers automatically.
Dimension changeovers automatically.
Material thickness Guage 1.5mm~3.5mm
Straightening unit adapted to easily rectify the distortion and straightness from the bias of material.
Interchangeable C/Z purlin Roll Forming Machine manufactures both Cee & Zed shaped section channels with shapes and sizes quick changed by PLC control.
For a steel structural building project, people always use Cee and Zed steel purlins (different web sizes and different flange sizes).
Production Characteristic and Use of CZU Purlin Roll Forming Machine
One machine can produce differenct C/Z Purlins throught automatically stepless adjustment, when producing different profiles, no need to change forming rollers. In the process, machine adopt automactic control model, it can make auto pumch, cut, forming based on inputting length of purlin, holes distance, quantity, etc.
One side fixed, the other side adjustable
Manual or motorized servo positioning of moveable head
Designed for efficient production of various panel widths
It is quick and easy to operate the machine, high production efficiency, forming speed up to 20m/min.
This machine can produce C , Z, U three profiles, through the exchange side of the roller up and down position to achieve C , Z, U purlin conversion, just need less than one minute to achieve.
Detailed Images of interchange cz cold rolled purlins machine

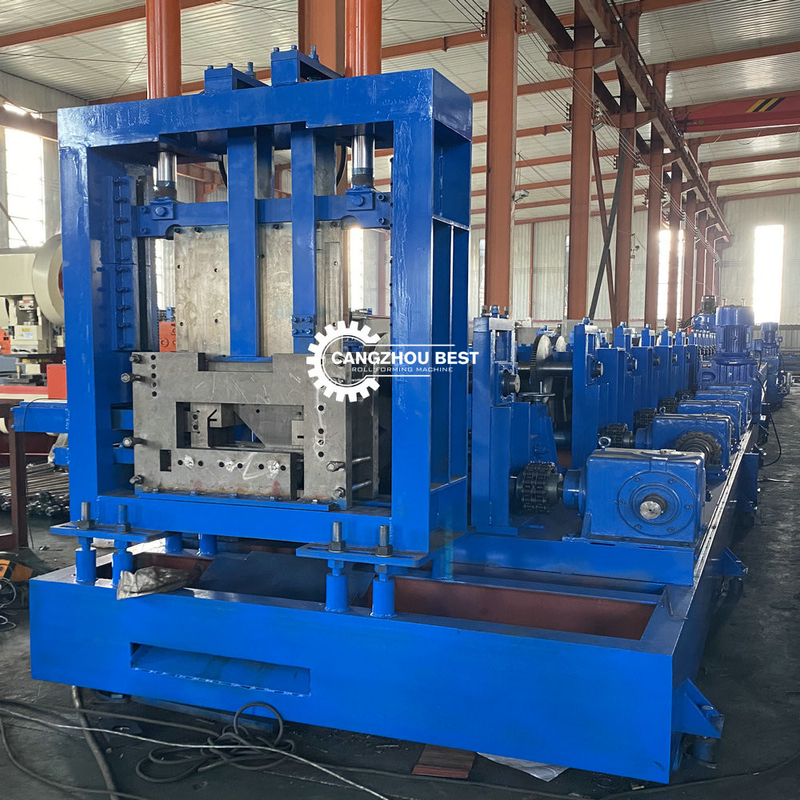

1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
2) interchange cz cold rolled purlins machine rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
3) interchange cz cold rolled purlins machine post cutter
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
4) interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
5) interchange cz cold rolled purlins machine exit rack
Un-powered,two unit (3m*2)
Other detailes of interchange c cold rolled purlins machine
Main Specifications of Purlin Roll Forming Machine
Material: G.I Coil, Carbon steel, Hot Rolled, Cold Rolled
Forming Speed: 12-15 m/min
Landscape orientation adjustment range of hole distance : 45-500mm
Forming Stations: 17 Main rollers
Leveling Stations: 7
Feeding Stations: 2
Main Power: 22KW
1.Best price and the best quality!
And we have a very professional sales team which can offer you the most professional service.
2.High quality is our promise.
we have more than 20 years experience producing feed processing machines in China.
Therefore that is why our products popular in European American African and Asian, and have a very hot market. Our feed processing machines mainly including hammer mill,mixer,and pellet mill machine depend on competitive price, high quality and superior service!
3.On time delivery. As direct manufacturer supplier, we can delivery in on time to make sure to save you much time and energy.
4. Excellent after sales service. We have our own after sales service team in office, so that we can solve all the problem you met in time.
5. 20 years exporting experience. We had exported to Pakistan, Russia, America, Australia, Uzbekistan, about 30 countries.
6. Efficient work----your inquiry and question will be dealt with in 24 hours.
If you have interest in our products, pls kindly write me email or call me directly.
We will offer you best price and service in 24 hours.
1. To meet the requirements of the main steel structure rapid construction, to provide a firm platform in a short period of time, and the use of multi-layer laying of steel plate, layered pouring concrete slab construction.
2. The use of floor boards as concrete slab tensile reinforcement, but also improve the floor stiffness, saving the amount of steel and concrete.
3. The embossing of the surface of the profiled slab causes the maximum binding force between the slab and the concrete, so that the two are integrated with the stiffener to make the slab system with high strength.
4. Under cantilever conditions, the length of the floor slab suspended only as a permanent formwork can be determined according to the cross-sectional characteristics of the floor slab.
Please inquiry me, get more details!!!
5. Product feature and usage:
The products of C or Z shape purline forming machine have excellent anti-bending property and are
easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale
construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on

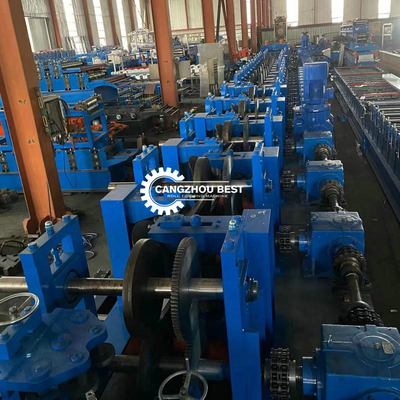

6. Machine photos:
