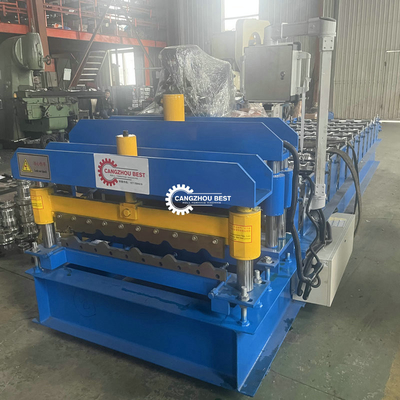

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet
Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet
Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet

Large Image :  Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE BV SGS
Model Number: YX800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 11500
Packaging Details: Naked
Payment Terms: L/C, , T/T, Western Union
Contact Now

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet

Description
Name: Color Steel Zimbabwe Popular Q Tile/IBR Roof Sheet Making Roll Forming Machine Coil Width: 1000mm
Coil Thickness: 0.3-0.8mm Main Power: 3kw
Hydraulic Power: 3kw Speed: 4-6m/min
Highlight:

0.3mm roof tile roll forming machine

,

roof tile roll forming machine plc

,

0.3mm ibr sheet roll forming machine

                Color Steel Zimbabwe Popular Q Tile/IBR Roof Sheet Making Roll Forming Machine



The finished product of . Express Steel Profile Glazed Tile Roof Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. High Quality Color Steel Building Material Roll Forming Machinery.



Machine Specifications

1 Coil Type Pre-painted coil,Galvanized steel
2 Width 914/1000/1200/1220mm
3 Thickness range 0.3-0.8mm
4 Yield stress(mm) Q235
5 Effective width 800/1000mm





1



Power Requirement



 Voltage (380V 50HZ),or according client require
Main Motor power 5.5kw
Cutter power 3.0kw
2 Forming speed 0-3m/min
3 Forming stations 13 rows
4 Main Frame 300H beam
5 Sidewall thickness 14mm
6 Forming shaft diameter 70mm 0.01mm-0.03mm(Grinding)
7 Chains 1inch chain drive
8 Type of cutting Roll formed and length-set cutting
9 Control system PLC control
10 Install dimension(depend on the final design) 8.0m×1.5m×1.3m
11 Total weight (Approx) 4.0T
12 Roller High grade 45# steel, hard chrome plated
13 Feeding system Guide type
14 Cutting blade Cr12
15 Frequency changer

Delta




Manual Decoiler

1.Work type: passive type
2.Structure: Steel channel welded for the basic frame
3.usage:To support the coil and make the uncoiling
4.Loading capacity: 5 tons
5.Inner diameter: 450-550mm (manual adjustment)
6.Coil width: 1250mm
7.Brake system: manual brake


Main forming machine parameters

1.Feeding device
One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels
2.Rolling shaft
Shaft material:45# STEEL
Shaft diameter: 70 mm
Tempering treatment to prevent deformed and improve hardness
3.Roller
Shaft material:45# steel
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station:13 rolling stations
Work speed: 0-3 m/min
Machine structure:Steel plate welded structure
Machine basic frame:50# H steel welded
Work power:5.5 kw
Rolling spacer: Anti rusty treatment
Pull rod: Anti rusty treatment
4.Transmission
By Chains with cover
Noted: please fill the lube in case the chains getting dry



PLC Control System

Frequency brand: Delta (original)
PLC brand: Delta (original)
Frequency brand: Delta (original)
Screen type: Touch screen, also have buttons on the panel
Screen language:English/Chinese
Cut command: Yes
Profile length set-up: Yes
Batch quantity program: Yes
Low pressure electric part: Schneider brand
Encode: Omron brand

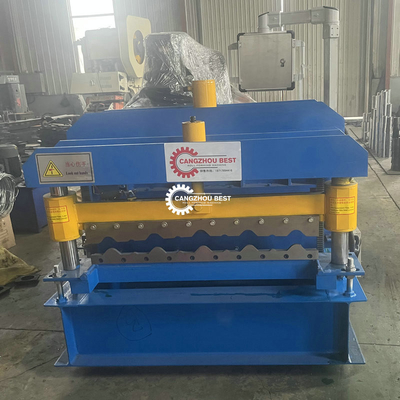

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet 0

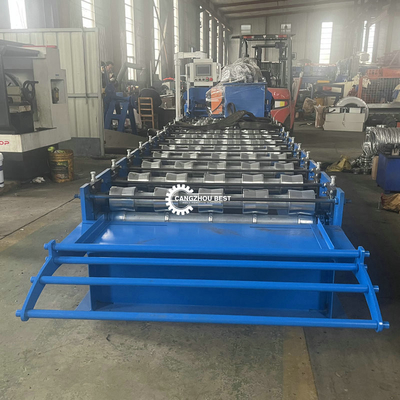

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet 1
