|Product Name:||C And Z Purlin Steel Channel Quick Change Automatic Roll Forming Machine||Machine Speed:||4-6m/min|
|Machine Dimention:||7.5mx1.8mx1.4m||Driven System:||Chain Or Gearbox|
|Control System:||PLC||Life Time:||More Than 10 Years|
6m/min z purlin roll forming machine,
gearbox z purlin roll forming machine,
6m/min cz purlin cold forming machine

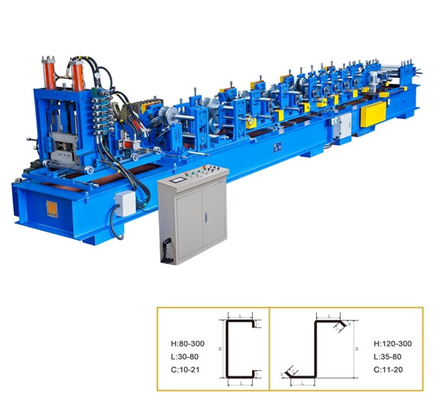

Automatic Roll Forming Machine C And Z Purlin Steel Channel Quick Change
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
|Leveling device||1 set|
|Forming machine||1 set|
|punching device||1 set|
|Cutting device||1 set|
|PLC control box||1 set|
|Hydraulic pump station||1 set|
|Production support table||1 se|
|Type||Manual type(standard)||Hydraulic type(option)|
roll forming machine
(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°
(4) Material for shaft: #45 steel after treatment
(5) Diameter of shaft: 80mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min
(10) Driven type: 1.5＂Chain
|Frame processing||the whole levelling surface is made by drilling machine|
|Mould processing||wire eletrode-cutting for the mould shape, it will save pressure|
|Hole size||According to your request|
|Hole number||According to your request|
|Blade material||Cr12mov quenching and grinding|
the whole bottom frame is grinding for high-precision
|Blade processing||wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology|
|Length||2pieces, length is adjustable||according to your requirement|
|Main item||Parameter detail|
Delta(standard) or according to your request
|Inverter||China brand(standard) or according to your request|
|Touch screen||Mcgs(standard) or according to your request|
|Encoder||China brand(standard) or according to your request|
|Main Item||Parameter detail|
3kw China brand or according to your request
|Pump||China brand or according to your request|
|Solenoid valve||China brand or according to your request|
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A: 1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation and trainning .
3. What about your warrenty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
