Product Details:
|
| Product Name: | Galvanized Hydraulic Cutting C Z Purlin Interchange Cold Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Power: | 11kw+5.5kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Warranty: | 2 Years |
| Life Time: | More Than 10 Years | ||
| High Light: | interchange cz purlin forming machine,hydraulic cutting cz purlin forming machine,galvanized c section roll forming machine |
||
Galvanized Hydraulic Cutting C Z Purlin Interchange Cold Roll Forming Machine
Machine Overview
C/Z quick interchangeable machine adopts special structure. The rollers for C changeable models are be changed by motorized /manual . One machine can produce all specifications of C purlins. Crimples are optional to increase rigidity of purlin. The roll former automatic controlled by PLC control with touch screen.
C/Z purlin machine roll former is the most common machine in building area. It is widely used for the roof and cladding support and fixing. We designed and developed the new type C purlin cold forming machine which have much better performance . The length and height can be adjusted automatic by the PLC control system. The valid material thickness, the width and the depth can be adjusted easily.
The forming process are mainly including:Decoilel--- feeding guide ---leveling and straighten---hydraulic holepunching---hydraulic cutting ---roll forming---rectify
rollers---output table . Raw material: Yield strength Q235 galvanized steel and hot rolled steel
Machine compositions:
* Decoiler for 10ton coils；
* Feeding guide & straighten device；
* Hydraulic hole punching;
* Cutting blade drove by hydraulic power；

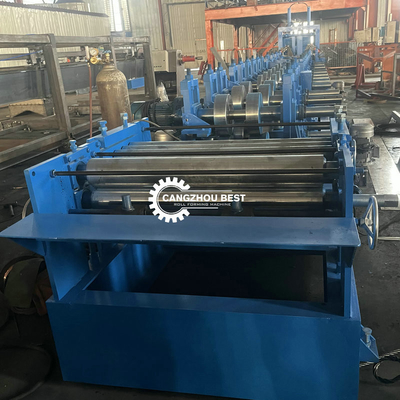

* Roll forming machine with rectify rollers；
* Stacker for finished products(manual or automatic control)；
* Human computer interface operate system
Specifications:
| Decoiler (manual/automatic) | Weight Capacity | 3T |
| Inner Diameter | 450-550mm | |
| Outside Diameter | 1400mm | |
| Coil width | Max 600mm | |
|
Feeding and straightening device |
Pinch rollers | one pair, up and down |
| Straightening rollers | up three, down four | |
| Diameter of rollers | 80mm | |

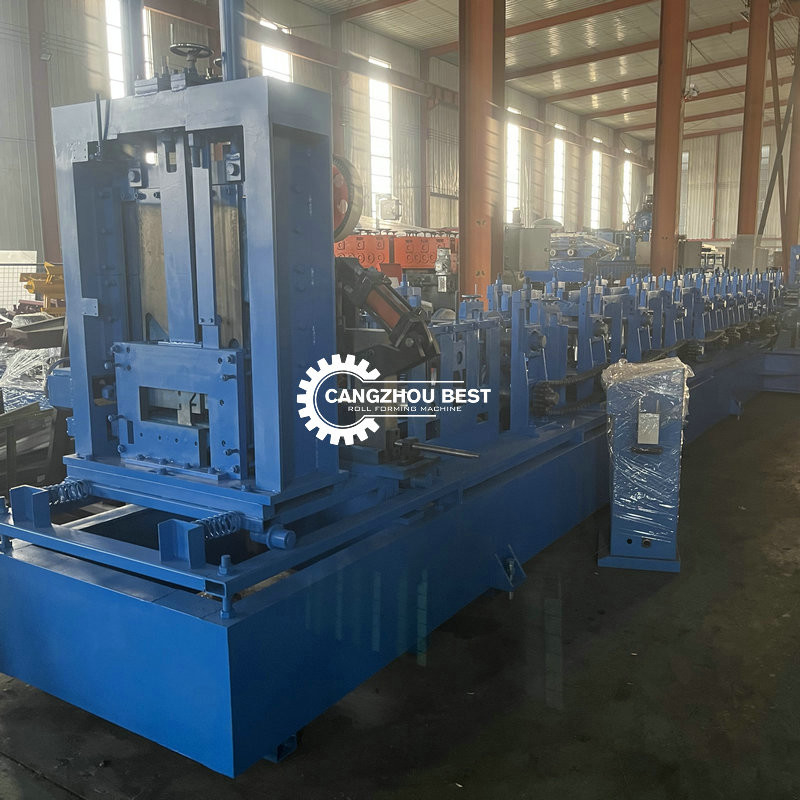

| Roll Former | Frame type | single station |

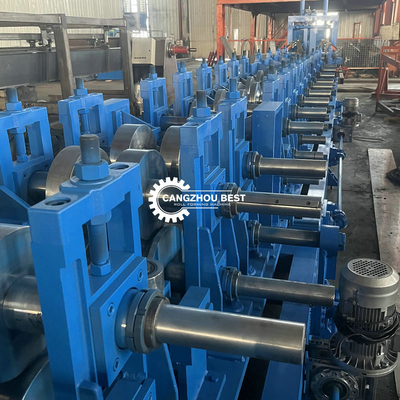

| Forming Roller stand | about 13 Groups | |
| Shaft material | First grade 45# steel, | |
| Shaft diameter | 80mm | |
| Roller material | GCr15 | |
| Drive Type | Chain of transmission | |
| Motor |
15KW reducer with frequency control |
|
| Roll stand type |
split type, two sides forming separately |
|
| Size changing time | 15 min | |
| Automatic size changed by slide screw and angle gear which guarantee the complete synchronization and the material thickness is adjusted by eccentric distance of passive rollers. | ||
| Punching | Type | Hydraulic |
| Mould material | Cr12 | |
| Holes distance | Can be adjusted | |
|

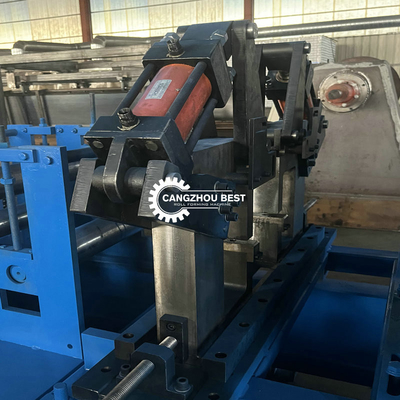

Cutting A: Hydraulic cutter |
Type | After-cutting, hydraulic |
| Material of mould | Cr12 | |
| Cutting tolerance | 10M+/- 2.0 mm | |
|
Cutting B: Fly saw |
option | |
| PLC system | PLC | PANASONIC/Taida/Sanjing |
| Length Controller | Encoder | |
| Operation | Touch Screen/Button | |
| Transducer | Mitsubishi | |
| Hydraulic station | Power | 7.5 KW |
| Hydraulic pressure | 11 Mpa | |
| Runout Table | Non-power type |
|
