Metal Automatic C Purlin Roll Forming Machine Punching Hole Stud Steel Beam Roof Truss

Description
Product Name: Metal Nepal Used Punching Hole Stud Machine Steel Beam Roof Truss C Purlin Machines Machine Speed: 10m/min
Machine Dimention: 7.5mx1.8mx1.4m Machine Power: 11kw+5.5kw
Driven System: Chain Or Gear Box Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

metal automatic c purlin roll forming machine

,

stud automatic c purlin roll forming machine

,

punching hole c purlin machine

Metal Nepal used punching hole stud machine steel beam roof truss c purlin machines



C and Z shape roll forming machine are much more efficient and producing unlimited profiles length compared with processing press brake and separately punching machine with holes punching mould. C & Z Purlins mainly use hot roll steel strip or hot dip galvanized steel strip at thickness 1.0~3.0mm.





Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table



Metal Automatic C Purlin Roll Forming Machine Punching Hole Stud Steel Beam Roof Truss 0


Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm




roll forming machine


Item Parameter detail
Processing Material GI and Black Coils
Material thickness 1-3mm(standard), 3-5mm(customized)
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel 20mm steel panel or steel pillar
Forming stations 13-18 stations (according to the material thickness)
Machine rollers

high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ80-90mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision and wire-electrode cutting
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 7.5kw-22kw(according to the size and thickness)
Machine working speed without punching:8-12m/min or 10-30m/min(option)
Machine testing method After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


Punching device



Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


Cutting device



Type

Mould cutting

Blade material Cr12mov quenching and grinding
Blade processing wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working Hydraulic type


Stacker


Type

Manual


Auto(option)


Length 2pieces, length is adjustable according to your requirement



PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase



Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

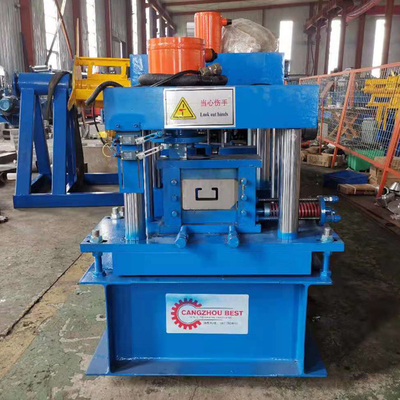

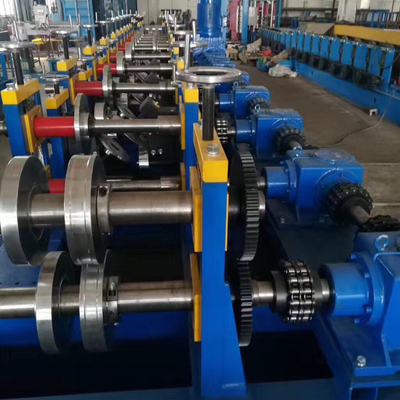

Machine Photo

Metal Automatic C Purlin Roll Forming Machine Punching Hole Stud Steel Beam Roof Truss 1Metal Automatic C Purlin Roll Forming Machine Punching Hole Stud Steel Beam Roof Truss 2Metal Automatic C Purlin Roll Forming Machine Punching Hole Stud Steel Beam Roof Truss 3



Features of metal CZ automatic quick interchangeable purlin roll forming machine:

1) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
2) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4) It is very easy to install the equipment and suitable for producing in the factory.
5) The machine has features of low noise and high efficiency.
