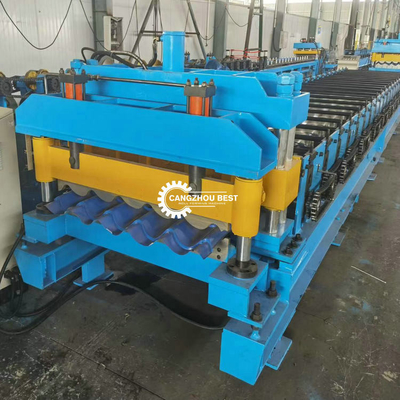

Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel

Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel
Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel
Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel

Large Image :  Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel

Product Details:
Place of Origin: China
Brand Name: BEST
Certification: CE
Model Number: YX1100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: naked
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 10sets/month

Euro Q 4m/Min Roof Tile Roll Forming Machine Cold For Color Steel Galvanized Panel

Description
Name: Color Steel Galvanized Roof Panel Tile Euro Tile/Q Tile Cold Roll Forming Machine Speed: 4m/min
Material: 0.3-0.8mm Control System: PLC
Voltage: 380v Phases: 3phases
High Light:

q roof tile roll forming machine

,

4m/min roof tile roll forming machine

,

euro roof tile roll former

Color Steel Galvanized Roof Panel Tile Roll Forming Machine



Automatic Color Steel Roll Forming Machine IBR Profile Roof Sheet Tile Making Machinery Price is a machine composed of unwinding, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial civil buildings, such as factory buildings, warehouses, stadiums, exhibition pavilions, theaters and other rooms and walls.



For this roof press making machine, we have below advantage

We choose a innovative way that already solved the glazed tile press step distance problem.

That method can ensure the each finished glazed tile will in a same distance step and can be well overlap one by one together.

This can save you a lot of money and time for you about this problem.

We are focus on machine detail design, will use many years experience to supplement the machine details and avoid some problems.

Will improve the machine service life.



Components

(1) Main Machine,

(2) Hydraulic System,

(3) Forming Cutter

(4) PLC Computer Controlling System,

(5) Run Out Table

(6)Manual in English,



Specifications:



Main motor power 5.5 KW
Roller material 45# steel with chormed treatment.
Roller shaft material 45# steel with quenched treatment.
Work speed 8-12 m/min
Length of the part 7500*1650*1500mm
Structure Middle plate welded frame structure
Frame 350 H steel with diagonal bracing
Drive mode By double chains drive methord
control method PLC control system
PLC Delta Chinese good brand for good using
Hydraulic station 4.5kw with cooling fan system
Cutting method Hydraulic cutting
Cutter material GCr12 chromed and quenched for good hardness and using



Details

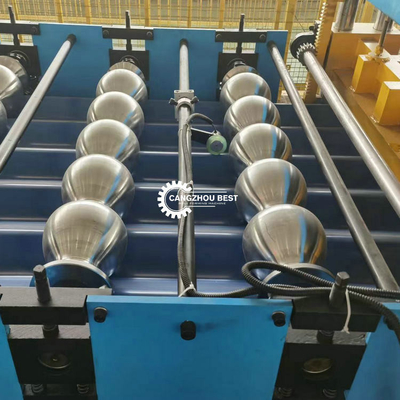

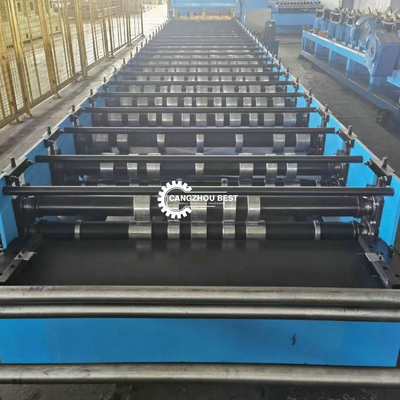

1.Roll forming Machine

Drive mode: 1inch chain

Sidewall:14mm 45# steel plate

Material of rollers: 45# forging steel

Material of shafts: 45# steel with finish turning

Diameter of shafts: φ70mm

Number of rollers : 13rollers



2.Ecorder wheel

Mainly to counting piece of tiles. If customer want produce 1 shape tile 5 pieces, counter will have memory to give signal to PLC, after 5 pieces reached, stop automatically, very automated.

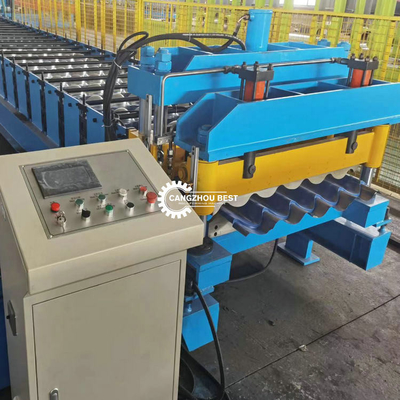

3.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



4. HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand



5. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m



6.Spare part

Chain x1; Bearing x 1; limit switch x1



Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.



FAQ



1.How to choose the machine,any information i need to offer?

You need to provide the product drawings.



2.How about your machine quality?

Durmapress is a mature Brand in China,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced grearly and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry,there are Durmapress machines.And where there are our machines,there are good reputation and terminal user satisfaction.



3.Do you accpect L/C payment terms?

Yes,we accpect 100% L/C at sight from almost all countries.
