Product Details:
|
| Product Name: | Steel Door-Window Steel Frame Making Roll Forming Machine For South Africa | Life Time: | 10years |
|---|---|---|---|
| Warranty: | 2years | Machine Power: | 5.5kw+3kw |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | ||
| High Light: | gearbox driven steel roll forming machine,plc steel roll forming machine,gearbox driven metal roll forming machine |
||
Steel Door-Window Steel Frame Making Roll Forming Machine For South Africa
Working flow
Decoiler---------leveling--------punching with servo feeding---------roll forming--------cut to length----------output table
Machine components:
| No. | Name | Qty. |
| 1 | Decoiler | 1set |
| 2 | Feeding and guiding device | 1set |
| 3 | Roll forming machine | 1set |
| 4 | Punching machine with servo feeding | 1set |
| 5 | Hydraulic cutting device | 1set |
| 6 | PLC control box | 1set |
| 7 | output table | 1set |
Techincal description:
|
1 |
Suitable Raw Material |
0.8-1.2mm, G350-G550, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request |
|
2 |
Under Frame |
400 H-beam |
|
3 |
Sidewall |
16mm |
|
4 |
Connect Bar |
25mm, zinc plated |
|
5 |
Roller |
High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway |
|
6 |
Shaft |
70mm, solid, finish turning, cylindrical grinding, with keyway |
|
7 |
Forming Stations |
25 |
|
8 |
PLC |
DELTA, TAIWAN |
|
9 |
Main Motor |
5.5kw, Lichao, Shanghai, with reducer |
|
10 |
Hydraulic Pump station |
4kw |
|
11 |
Cutting blade |
Cr12Mov, quenching 58-62°, double oil cylinder |
|
12 |
Oil paint |
National standard grey |
|
13 |
Computer screen |
DELTA, TAIWAN |
|
14 |
Chain |
1inch
|
Payment Method
30% as deposit ,balance payment after inspection while before delivery.
Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
RFQ
1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. You are trade company or factory?
We are Manufacturer.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
6.What's the warranty period?
18 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.

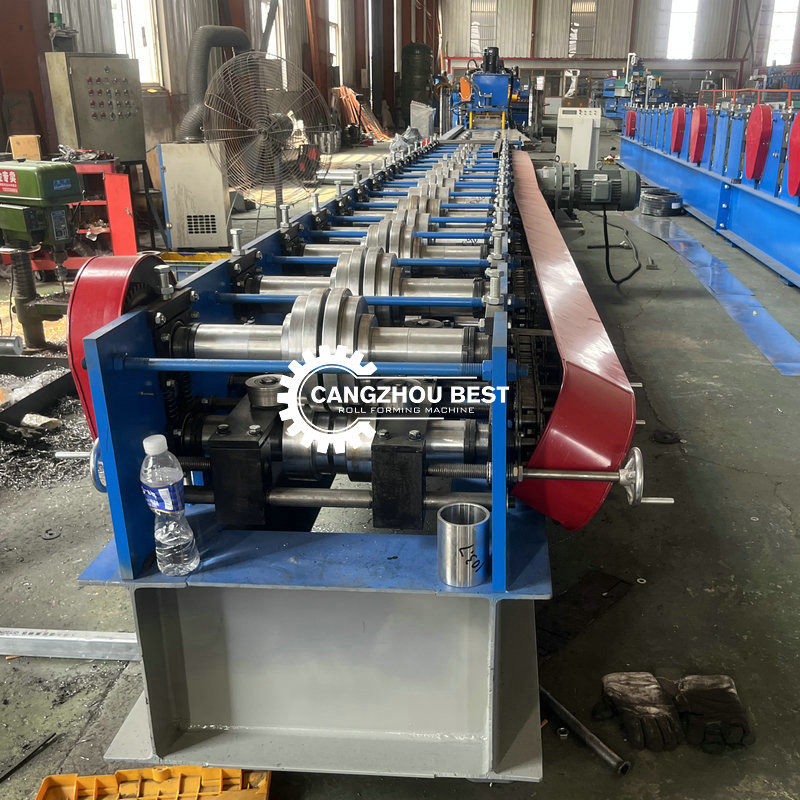

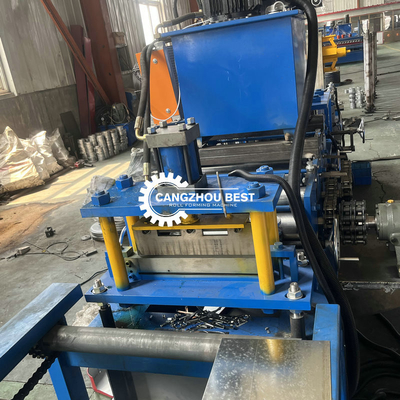

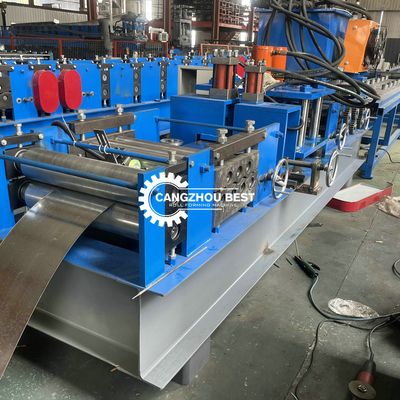

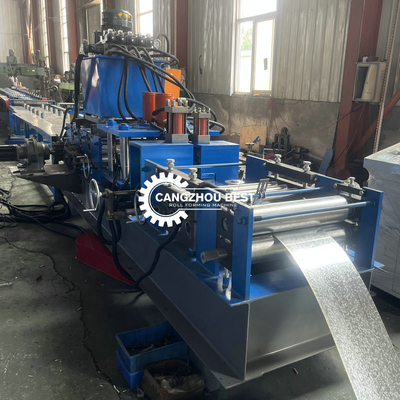

Machine Photo
