Product Details:
|
| Name: | Motor Driven High Speed 20m/min Color Steel Spandral Roof Sheet Roll Forming Machine | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | motor driven tile roll forming machine,high speed tile roll forming machine,spandrel roof panel roll forming machine |
||

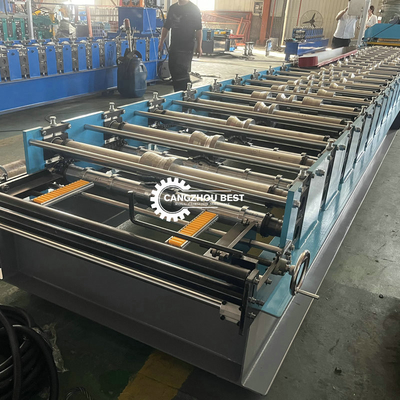

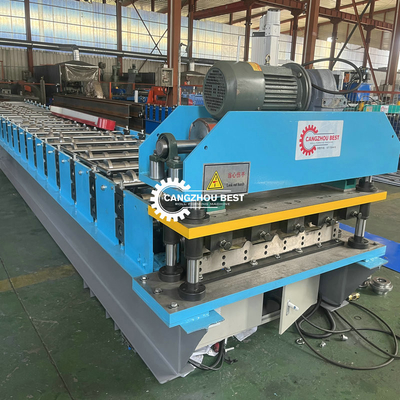

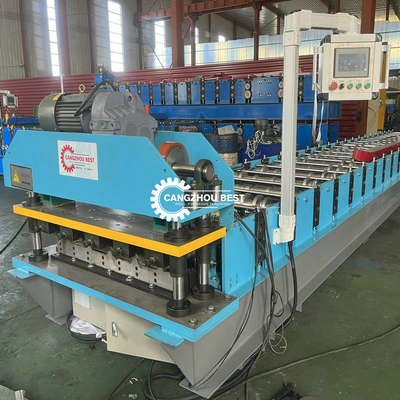

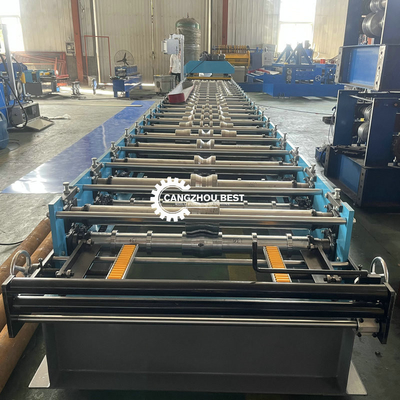

Motor Driven High Speed 20m/min Color Steel Spandral Roof Sheet Roll Forming Machine
Main Features
1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.One year warranty.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile.
Machine Specifications:
| The total length of the equipment | Length 8200mm width 1200mm height 1200mm |
| The motor power | Motor: 5.5kw pump station: 4Kw working voltage 380V or customized |
| Production speed | 10 to 18 m/min |
| The transmission way | 1 inch chain drive |
| rack | Large frame: 350H section steel |
| shaft | 18 row axis, diameter 70 axis |
| The thickness of the plate | 14 mm |
| Set of | Galvanized pipe finishing, electrostatic spraying |
| Wheel material | 45# steel hard chrome plating |
| The molding part | Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast. |
| Numerical control system | Easy control king PLC, letter press button screen, counter |
| shear | Welded iron frame, hydraulic cylinder automatic shear |
| The thickness of the plate | 0.3 -0.8 mm |
| Into the plate | 1000mm |
| accessories | One operating manual and one set of feeding rack |
| Warranty period | 18 months |
Machine Process Flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
Specificiations
Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated
Name:PLC
Brand: Mitsubishi
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. From raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 18 years engineers to design and make your machines.
