Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically

Large Image : Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY65

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	30-40 days
Supply Ability:	20 sets/month

Contact Now

Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically

Description

Product Name:	Automatically Unistruct C Channel Solar Rack Steel Profile Roll Forming Machine	Color:	Blue Or As Your Request
Machine Speed:	15m/min Without Punching	Machine Dimention:	11.5mx1.8mx1.4m
Warranty:	2 Years	Life Time:	More Than 10 Years
Bottom Frame:	400 H Steel
High Light:	unistrut profile roll forming machine , automatically profile roll forming machine , solar rack steel roll forming machine

Automatically Unistruct C Channel Solar Rack Steel Profile Roll Forming Machine

Working flow

Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component

De-coiler	1 set
Leveling device	1 set
Forming machine	1 set
punching device	1 set
Cutting device	1 set
PLC control box	1 set
Hydraulic pump station	1 set
Production support table	1 set

Parameter

Strut Channel Roll Forming Machine (Regular Version)
Machinable Material	A) Hot-rolled And Cold Rolled Steel	Thickness(MM): 1.5-2.0, 2.0-2.5mm
	B) Hot-dip Galvanized Sheet
	C) Pre-Galvanized Steel
	D) Mill(Plain/Black) Steel
Yield strength	235 - 345 Mpa
Tensil stress	G250 Mpa-G350 Mpa
Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Punching System :	Hydraulic Punching Station	* Post Punching Or Pre-punching Option
Forming Station	19-22	* According To Your Profile Drawings
Main Machine Motor Brand	Reducer + Motor	* Servo Motor (Optional)
Driving System	Chain Drive	* Gearbox drive (Optional)
Machine Structure	Wall Panel	* Forged Iron station (Optional)
Line Forming Speed	4-6 (M/MIN)	* According To Final Configuation
Rollers’ Material	GCr15	* Cr12 (Optional)
Cutting System	Post-cutting, Machine Stop To Cut	* Tracking Cutter (Optional)
Frequency Changer Brand	Yaskawa
PLC Brand	Panasonic
Power Supply	380V 50Hz 3ph	* Or According To Your Requirment
Machine Color	Industrial Blue	* Or According To Your Requirment

Training and Installation

1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.

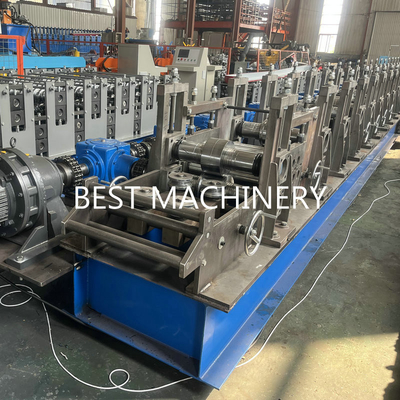

Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically 0

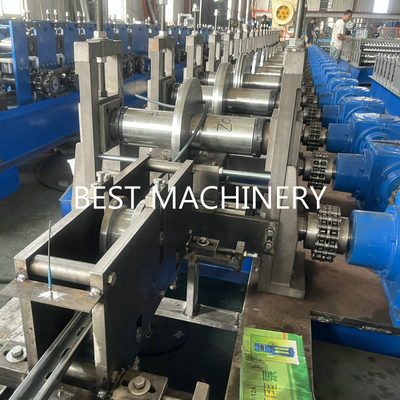

Unistrut C Channel Solar Rack Profile Roll Forming Machine Steel Automatically 1
